11 Standalone mode using embedded user interface
By default, when the STM32CubeMonitor-Power software PC tool not used, the X-
NUCLEO-LPM01A expansion board runs in standalone mode. In this case, the embedded
user interface composed of an LCD (U18), a joystick (B1), a button (B4), 4x color LEDs
(LD1, LD2, LD3, LD4) and a Reset button B2 are used to work with the X-NUCLEO-
LPM01A.
In standalone mode, both static and dynamic measurements are possible.
Please refer to the X-NUCLEO-LPM01A PowerShield firmware user manual [1] for details
on measurement features available and use of the X-NUCLEO-LPM01A user-interface
me
nus with the embedded firmware.

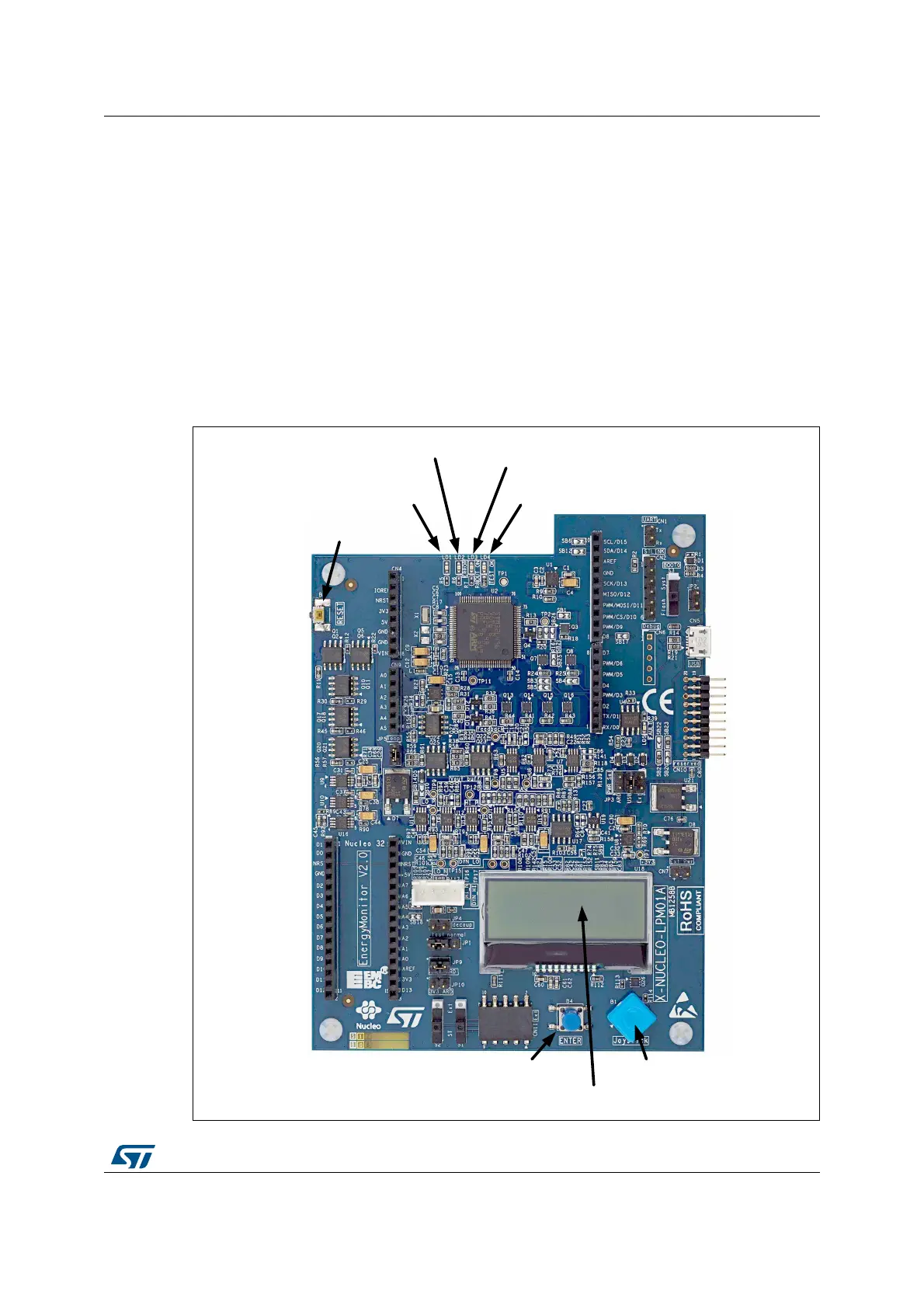

Figure 18. Embedded user interfaces elements
06Y9
EdZďƵƚƚŽŶ;ϰͿ :ŽLJƐƚŝĐŬ;ϭͿ
Z^dďƵƚƚŽŶ;ϮͿ
>ϮůŝŶĞƐŽĨϭϲĐŚĂƌĂĐƚĞƌƐ;hϭϴͿ
ůƵĞ>;>ϭͿ
ĐƵƌƌĞŶƚƚƌŝŐŐĞƌƌĞĂĐŚĞĚ
ZĞĚ>;>ϮͿZZKZ
KƌĂŶŐĞ>;>ϯͿKhdKE
'ƌĞĞŶ>;>ϰͿ
ĐƋƵŝƐŝƚŝŽŶKŶͲ'ŽŝŶŐ
