6 7

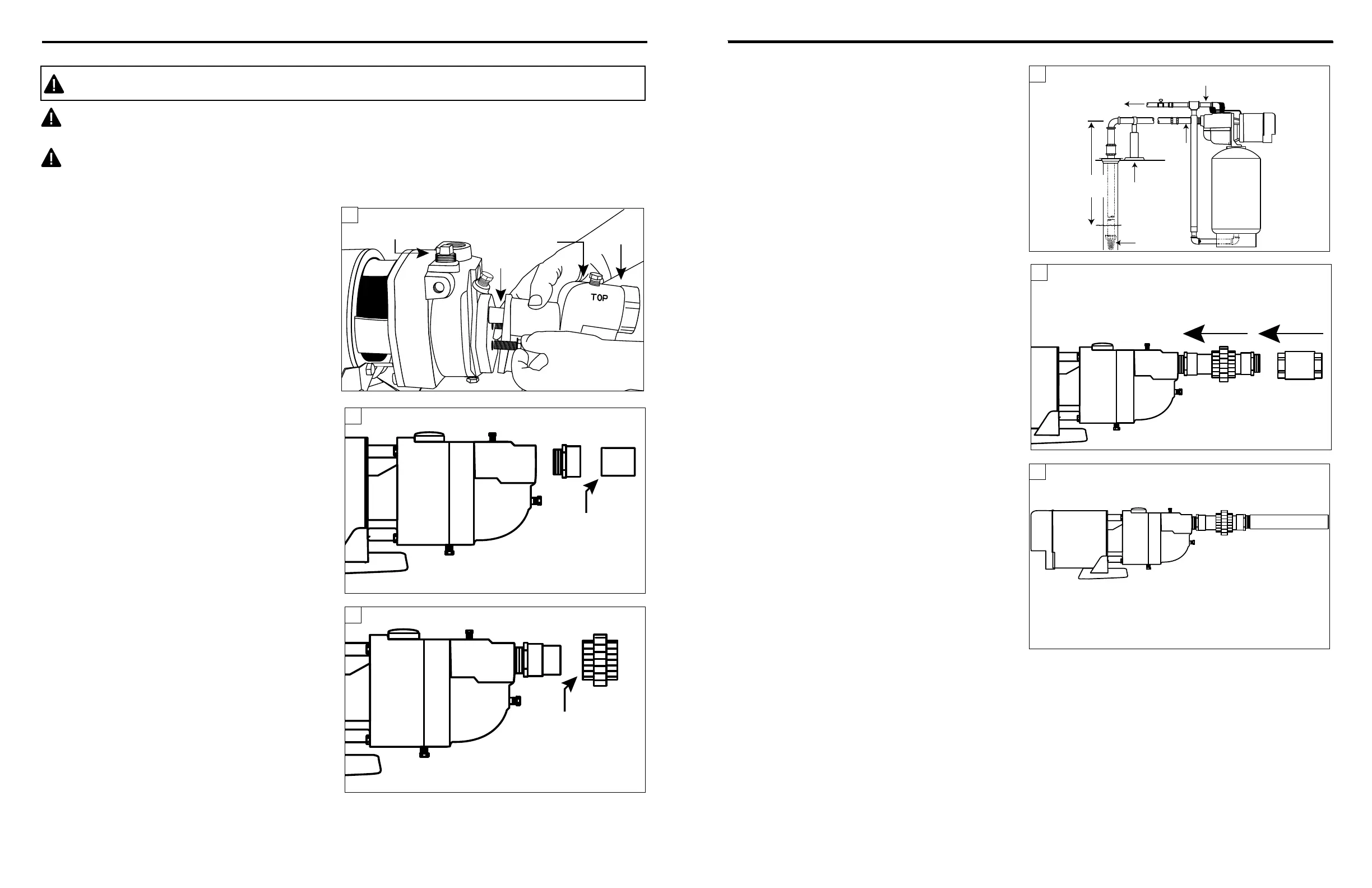

WELL TO PUMP CONNECTION (SUCTION PIPE)
3. The use of a union (optional) will assist with
easy connection and disconnect. (Fig. 2)
L1360
5
5. Finish the connection to your well with
additional pipe and ttings as needed.
(Fig. 5)
4a. NOTE: For drilled (cased) wells, a foot valve
is required in the well at the end of the pipe
to maintain prime. (Fig 4a)
IL1357
Glue
2
IL1358
Glue
3
IL1359
Pump
Flow
Arrow
4b
1. JHU10S, EK10S, JHU15S, CPH05S Models
Only
Attach ejector to face of pump with two (2)
bolts and gasket provided. Venturi tube on the
ejector inserts into the top tapping of the face
of the pump (Fig. 1).
NOTE: Models ES05S, EK05S, ES07S, and
EK07S have built-in ejector.
Priming Port
Venturi
Tube
This Side
Up
Ejector
1
CAUTION: Dry-t entire assembly to ensure proper t before gluing or taping parts.
CAUTION: Follow all proper gluing procedures as specied by the glue manufacturer. Always
glue in a vertical direction whenever possible to prevent glue from dripping inside pipe or ttings
CAUTION: Use pipe tape and pipe paste compound on all male threads. Tighten with wrench to
a snug t and add another 1/4 turn to ensure proper seal.
2. Make the connection to your well rst. Wrap
all threaded ttings with pipe tape 5 times
and then apply a pipe paste (pipe dope) to
ensure an air tight connection. (Fig. 1)
WELL TO PUMP CONNECTION (SUCTION PIPE) (CONTINUED)
IL1104
Water Level
25 ft.
Max
Suction
Lift
3/4 or 1 in.
Discharge Pipe
1-1/4 in.
Suction
Pipe
Discharge
to Home
Pipe
Support
Foot Valve
4a
4b. For driven wells, a check valve is required
at the top of the well to maintain prime. Flow
arrow must point toward pump.
(Fig.4b)
To Next Page
