Off-Board Battery Charger
Your scooter is supplied with an off-board charging facility
3KRWR3OHDVHQRWHWKDWRQO\FKDUJHUVZLWKDFDSDFLW\
of minimum 3.0 Amps and maximum of 6.0 Amps supplied
by your local authorised dealer should be used.
 6ZLWFK\RXUVFRRWHURIIDWWKHNH\VZLWFK
2. Swivel the charge connector cover located on the Tiller
)DVFLD3DQHODQGFRQQHFWWKHFKDUJHU3KRWR
3. Ensure that the charger plug is dry and intact before
connecting it to the mains and switching it on.
4. A reset button is located on the side of battery “A”.
3OHDVHFKHFNWKDWWKHEXWWRQLVSUHVVHGLQ3KRWR
Note:
The charger is capable of charging from 230V or 110V
by switching the charger off and sliding the red tab on
the end of the charger to the required setting using a
small screwdriver. This setting is factory set to 230V.
The 5 Amp, off-board charger has 3 possible indications
3KRWR:
1. RED = Charger is on.
2. YELLOW = Charging.
3. GREEN = Fully charged.
Ensure the scooter is switched off before commencing the
charging process.
$IWHUFKDUJLQJDOZD\VVZLYHOWKHFKDUJLQJVRFNHWFRYHU
EDFNLQWRSODFH7KLVKHOSVSUHYHQWZDWHUJHWWLQJLQWRWKH
VRFNHW3KRWR.
Please note that the scooter has a safety circuit to prevent
it from being driven off during charging. If your scooter
fails to respond to normal control after a charging period,
SOHDVHFKHFNWKDWWKHEDWWHU\FKDUJHUKDVEHHQFRPSOHWHO\
disconnected from the scooter.
Batteries and Charging

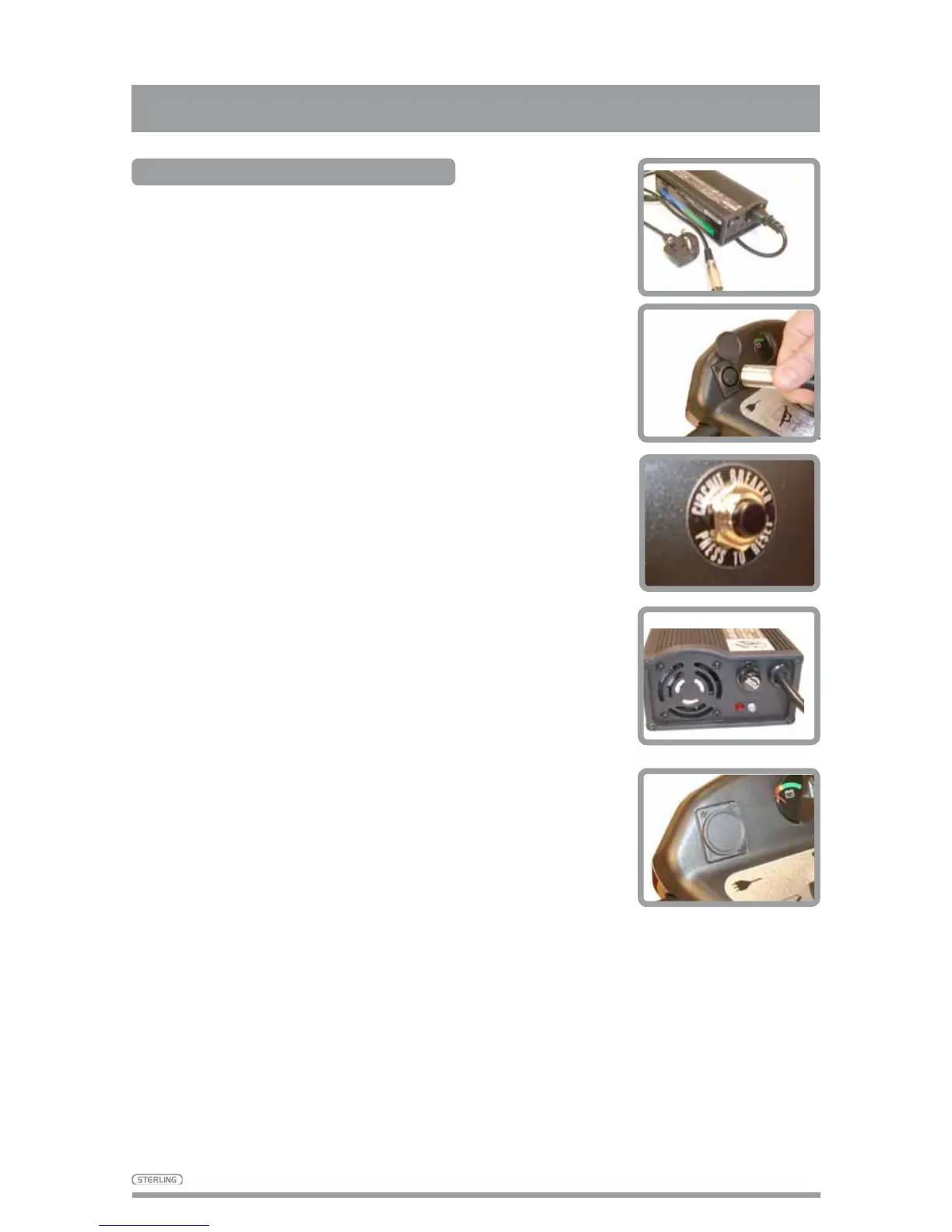

Photo 12.5
Photo 12.4
Photo 12.3
Photo 12.2
Photo 12.1
