INSTALLATION
Specication
102 |DHEConnect | DHETouch www.stiebel-eltron.com
17. Specification

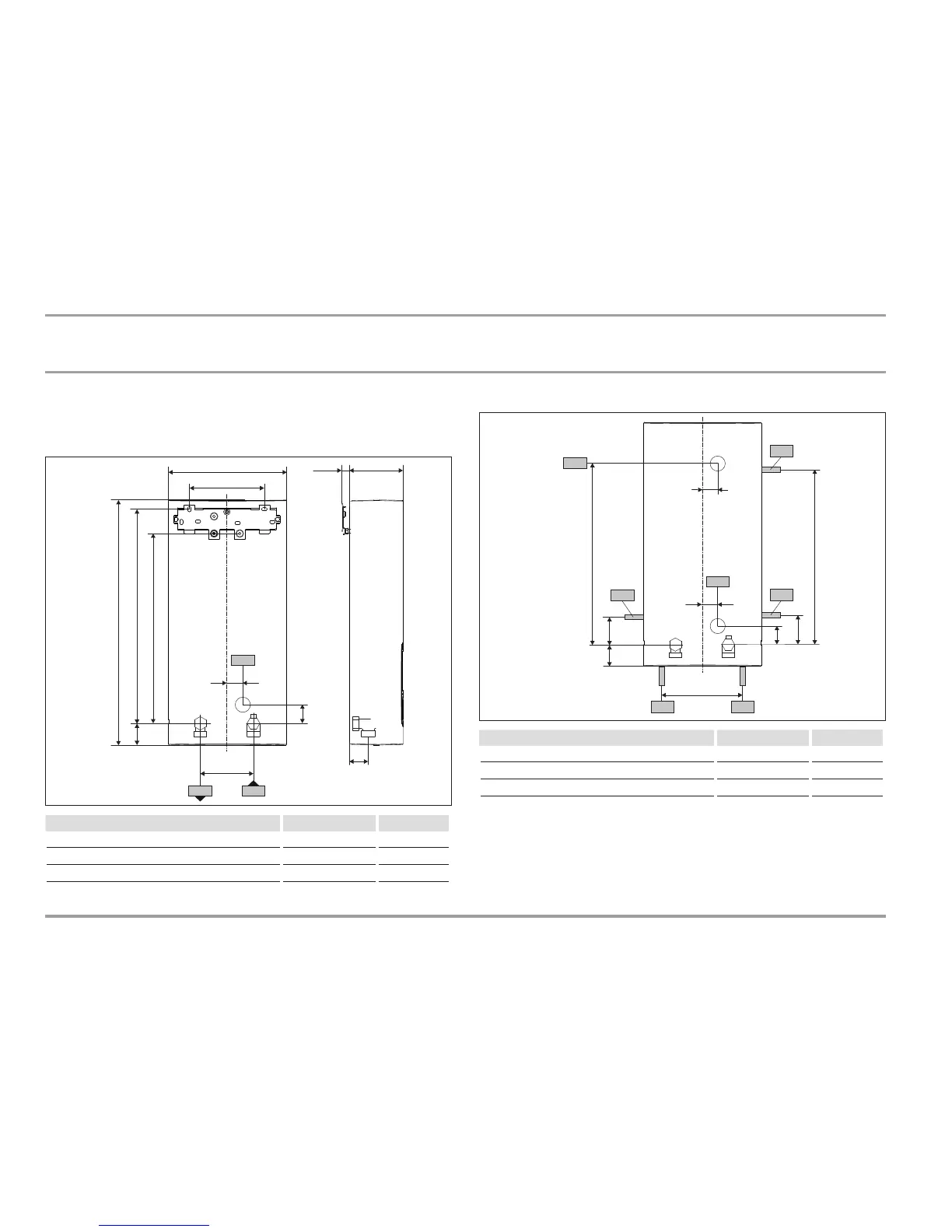

17.1 Dimensions and connections
466
225
35
35
414
38
105≤ 20
140
20
b02
100
c01c06
368
D0000053294
dHe
b02 Entry electrical cables I Flush mounted
c01 Cold water inlet Male thread G 1/2 A
c06 DHW outlet Male thread G 1/2 A
Alternative connection options
165
b04
b04
69
38
330
b04
69
325
b04
b04
b03
20
35
20
b02
D0000053293
dHe
b02 Entry electrical cables I Flush mounted
b03 Entry electrical cables II Flush mounted
b04 Entry electrical cables III Surface mounted
