WORKSHOP MANUAL
EDITION
PAGE
39 /
124

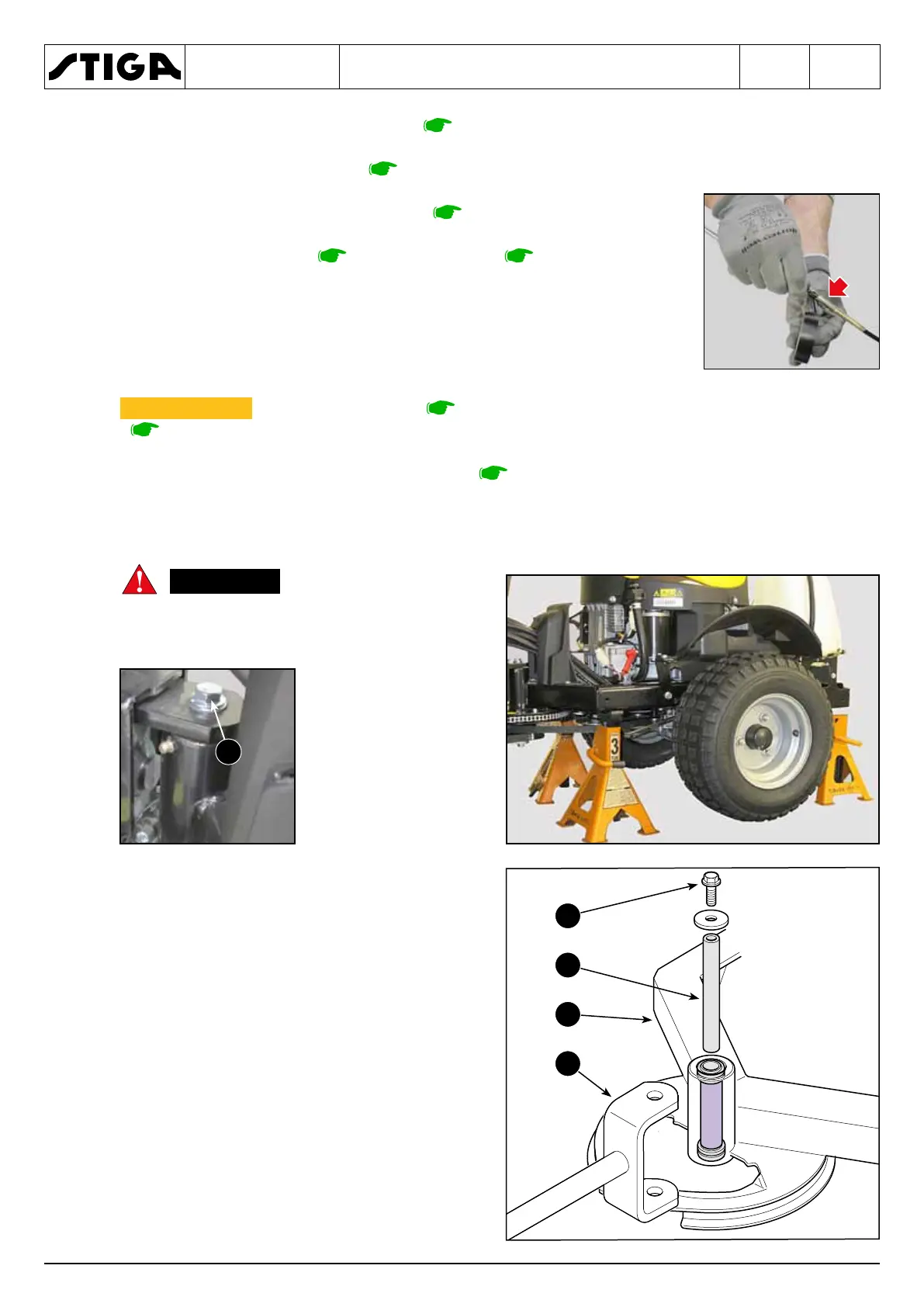

1. Remove the front casing of the belts .
2. Remove the rear belt casings
.
3. Completely loosen the steering chain
. from 1 to 3
4. Disconnect the throttle
and choke cables from
the engine side , taking care of connecting the two terminals to a cable
or a cable pulling probe in order to facilitate the subsequent reset.
5. Remove the clamps securing the cable sheaths and hydraulic pipes
where the articulated joint is.
6. ▶▶ Empty the oil circuit
and disconnect the front transmission tubes
at point 6.
7. Remove the pulleys of the articulated joint.
.
8. Stabilize the rear part of the machine which bears the greatest weight and is therefore less
manageable.
Ensure stability before
separating.
9. Unscrew the screw (1) and remove the inter-
nal spacer (2) which holds the rear frame (3)
together with the front part of the machine by
means of the fork (4).
10. Move the front part as needed and stabilize it.
When assembling, perform the steps described
above in reverse order, paying particular attention
to restore all the fastening clamps of the wiring
sheaths and hydraulic pipes.
