4.4. FUNCTIONING OF THE CHARGING BASE

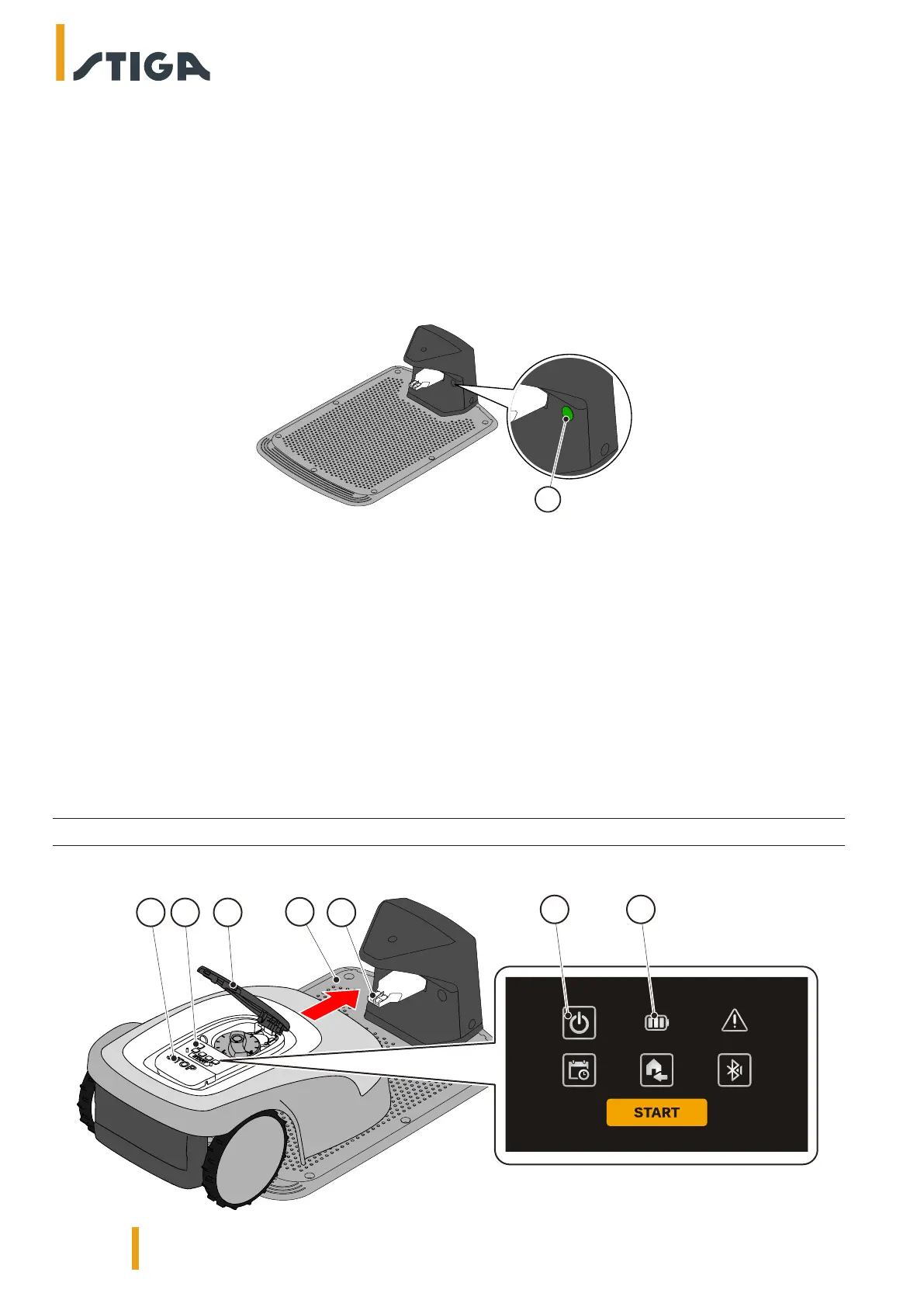

The charging base is provided with a warning light (N) that lights up as follows:
• Warning light o: the charging base is powered o or the robot is on the base;
• Fixed warning light: the perimeter cable is correctly connected to the charging base, and the
perimeter signal is correctly transmitted;
• Indicator light ashing slowly: the perimeter cable is not connected or is interrupted (the perimeter
cable integrity check is not performed continuously, but only when the robot leaves the charging
base or the base is powered);
• Warning light with fast ashing: the perimeter cable is too short or there is a fault in the charging
base.
4.5. BATTERY CHARGING
The "BATTERY CHARGING" procedure allows to recharge the robot lawn mower manually.
Requirements and obligations:
• Charging base connected to the mains.
Procedure:
1. Position the robot lawn mower on the charging base (R).
2. Slide the robot lawn mower onto the charging base, until the charging connector (S) is engaged.
3. Press the button “STOP” (A) to open the cover (B) and access the control console (C).
4. Turn the robot lawn mower on with the “” button (E).
5. When the "BATTERY" icon (L) ashes green, the robot lawn mower is charging.
6. Close the cover (B).
7. Leave the robot lawn mower charging for at least the time shown in Par. 1.4.
NOTE: charging the battery before winter storage should be carried out as reported in Par. 5.4.
