ASA 85
English
26

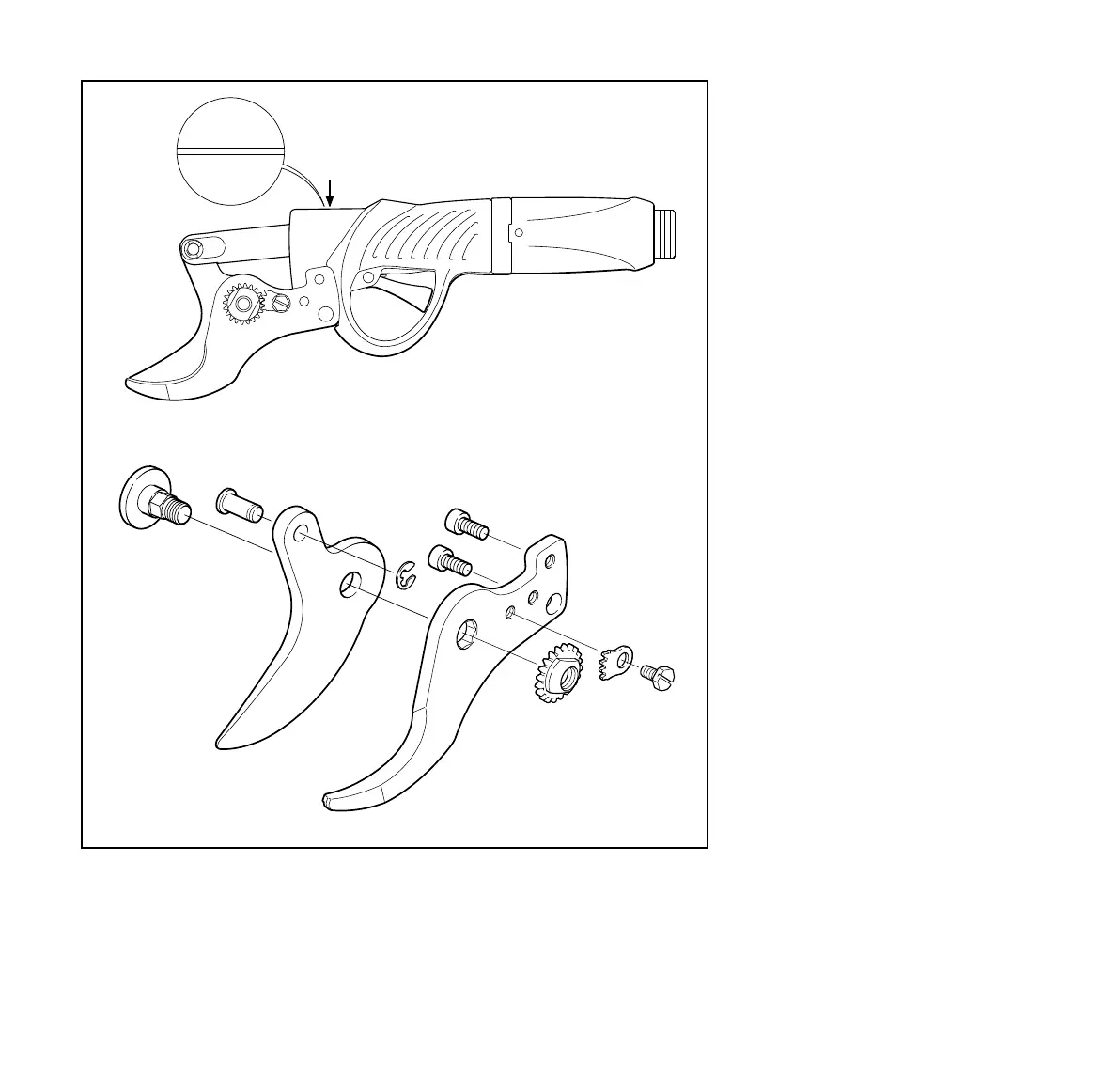

1 Cordless pruning shears
2 Trigger
3 Anvil blade
4 Cutting blade
5 Grease nipple
6 Pivot pin
7 E-clip
8 Anvil blade mounting screws
9 Adjusting nut
10 Locking segment
11 Locking segment mounting screw
# Serial numbers:
#
4816BA032 KN
5
6
4
3
7
8
9
10
11
4
3
2
1
YYEHXXXXX
9930XXXXX
9930XXXXX Serial number
YYEHXXXXX Identification number:
The two first digits indi-
cate the year of
manufacture.
