26
English
BT 360
Engine
STIHL single cylinder two-stroke engine
1) Weighted equivalent value includes
idling and racing with the same
duration of exposure
Ignition System
Type
Electronic magneto ignition
(breakerless)
Spark plug (suppressed)
Bosch WSR 6 F, NGK BPMR 7 A or
Champion RCJ 6 Y (not for all markets)
Electrode gap
0.5 mm
Spark plug thread
M 14 x 1.25; 9.5 mm long
Fuel System
Carburetor
All position diaphragm carburetor with
integral fuel pump
Air filter
Large area main filter (paper filter
cartridge) and flocked auxiliary filter
Fuel tank capacity
0.55 l (550 cm
3
)
Fuel mix
see chapter "Fuel"
Drilling Gear
Type
Three-stage spur gear drive
Gear ratio
151 : 1
Max. spindle speed
50 rpm
Max. torque at drilling spindle
516 Nm
Lubrication
EP 90 (SAE 90) mildly alloyed gear oil
Oil capacity
0.5 l (500cm
3
)
Weight
Without auger
25.9 kg
Dimensions
Length of handle frame
approx. 1715 mm
Length, folded
approx. 620 mm
Width of handle frame
approx. 635 mm
Height without auger
approx. 485 mm
Starter rope
4.5 mm diameter 1122 190 2900
Displacement 60.3 cm
3
Bore 49 mm
Stroke 32 mm
Engine power
to ISO 8893
3 kW
(4.1 bhp)
Max. engine speed
without auger 9,500 rpm
Idle speed 2,500 rpm
Continuous sound
pressure level L
peq
to ISO 6081
1)
99 dB (A)
Sound power level
L
weq
to ISO 3744
1)
112 dB (A)
Vibration
measurement
to ISO 8662
Idle speed:
Left handle 2.3 m/s
2
Right handle 2.6 m/s
2
Vibration
measurement
to ISO 8662
Maximum RPM:
Left handle 10 m/s
2
Right handle 9.9 m/s
2

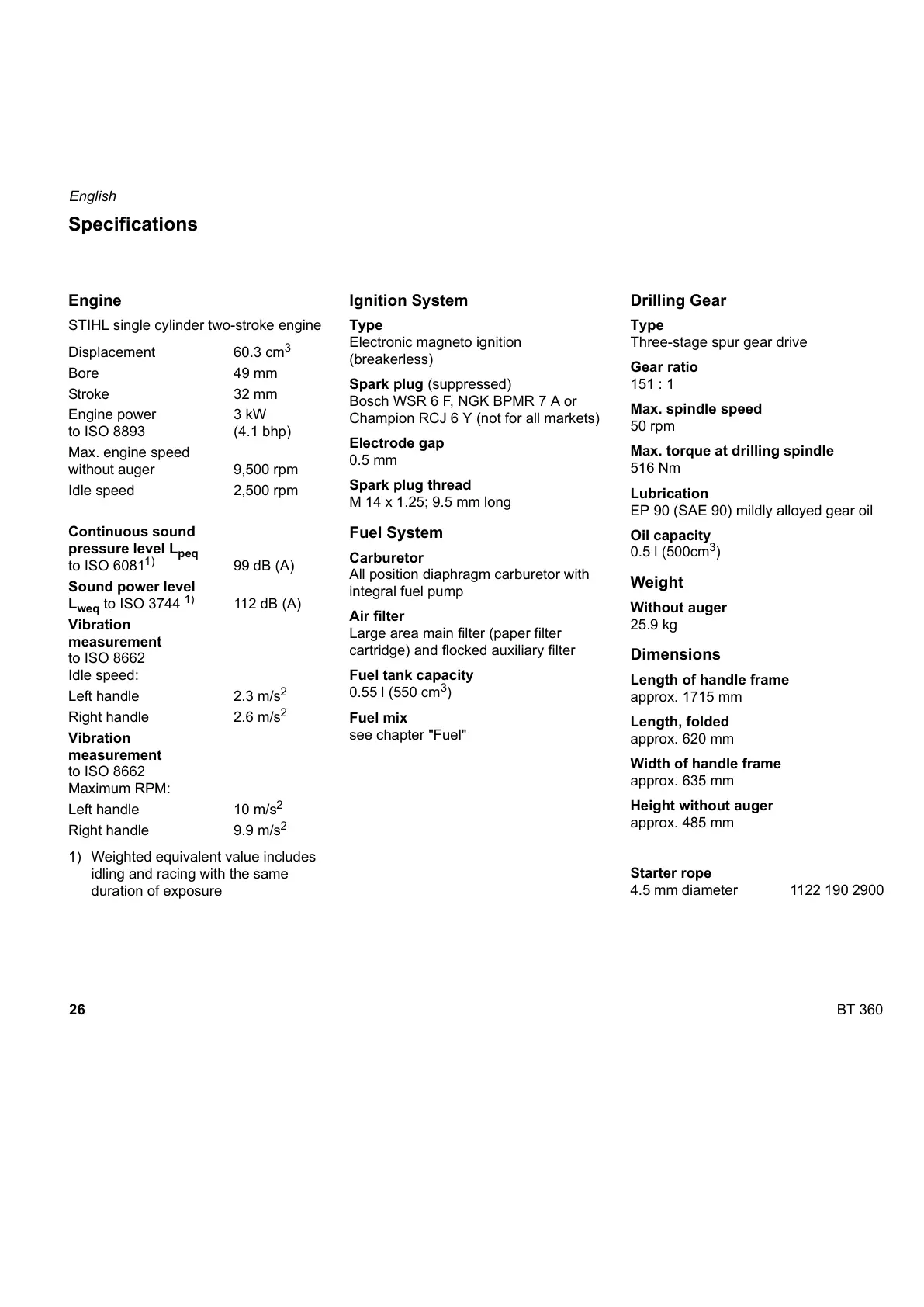

Specifications
