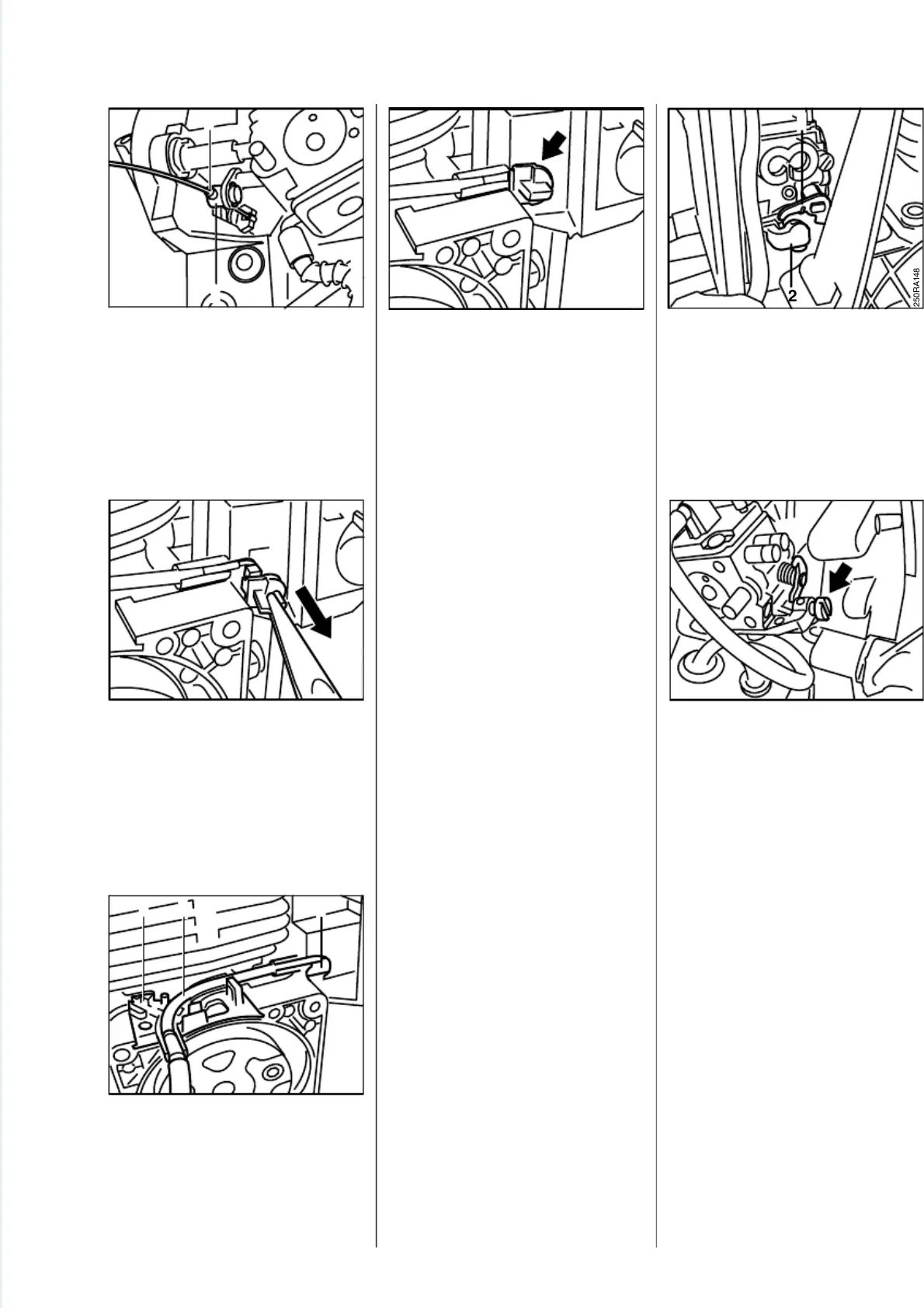

Disconnect throttle cable nipple
(1) from slotted pin (2) on throttle
lever.
•
Pull grommet out of carburetor
housing.
•
Take throttle cable (1) out of
base of cable guide (2) and pull
it out of opening (3) in carburetor
housing.
Reassemble in the reverse
sequence.
FS 400/450, FR 450
•
Make sure grommet is properly
located in the carburetor housing.
- Secure lug between the raised
marks.
FS 120...350, FR 350
- Place lug and extended throttle
cable in the corner of the filter
housing.
- Tighten screw of extended
throttle cable to 6.0 Nm
(4.4 lbf.ft).
- Adjust throttle cable -see 7.5.2.
•
Throttle lever (1) must butt
against the stop on the carbure-
tor cover (2) when throttle trigger
is squeezed (full throttle).
•
On carburetors with an idle
speed screw: Throttle lever must
butt against the idle speed screw
when the trigger is in the idle
position.
Note:The filter housing is not
shown in the illustration.
Adjustment is effected by moving
the throttle cable in the holder.
- Remove the shroud -see 4.1.
- On FS 300...450, remove cover
from AV housing -see 9.2.
- Check correct setting of idle
speed screw (if fitted).
Important:
Note adjustment range
of idle speed screw.
7.5.2 Adjusting
2
5
0
R
A
1
4
9
V
A
2
5
0
R
A
1
4
6
1
2
V
A
2
5
0
R
A
1
4
7
2 1
V
A
3
2
5
0
R
A
1
4
8
2
1
V
A
2
5
0
R
A
2
3
9
V
A
2
5
0
R
A
2
3
8
V
A
FS 120, 200, 300, 350, 400, 450, FR 350, 450 37
