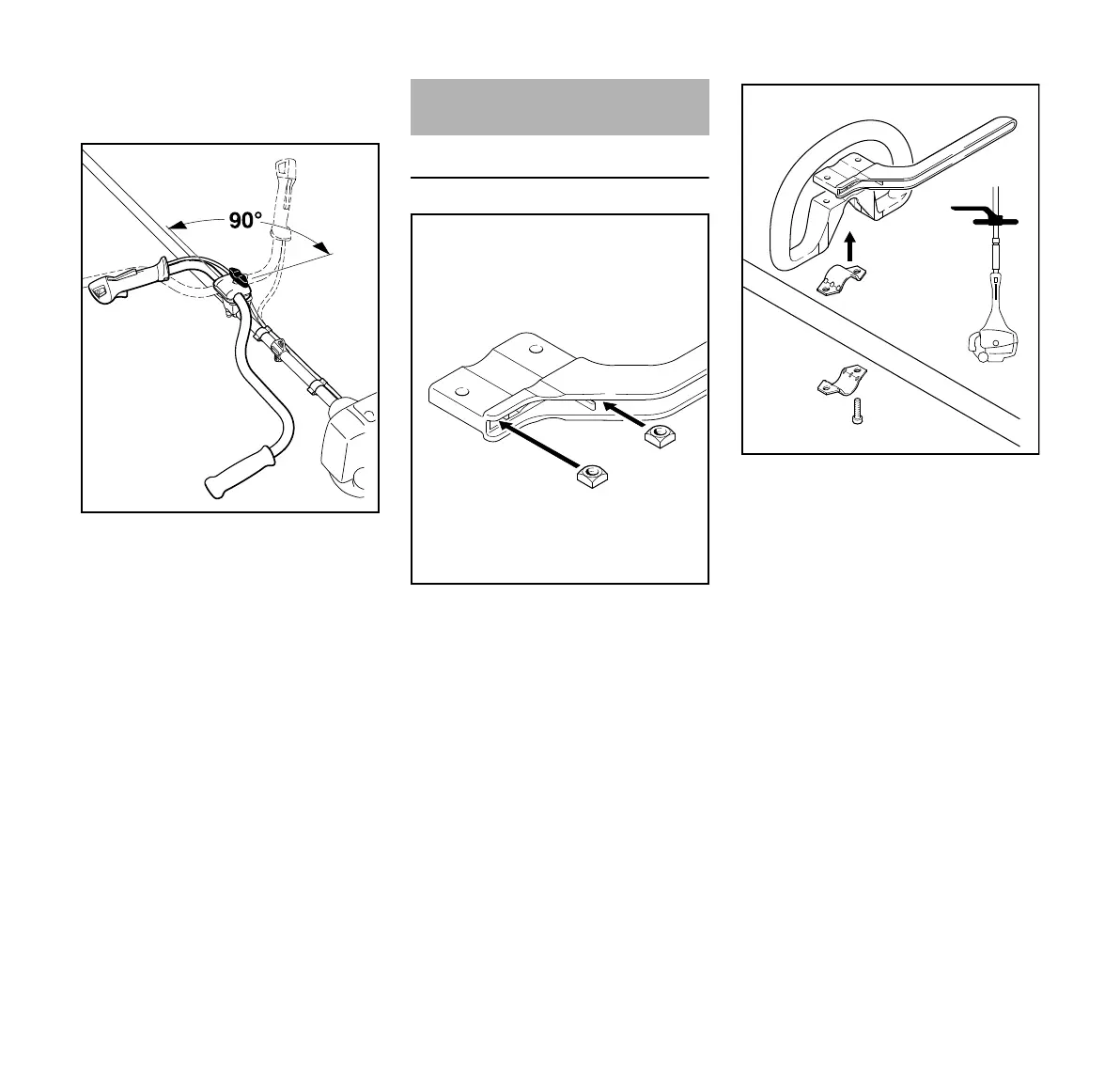

Swiveling the handlebar
Transport position
N Loosen the wing screw (3) and
unscrew it until the handlebar (7)
can be rotated.
N Rotate the handlebar 90°
counterclockwise and then swing
the handles down.
N Tighten down the wing screw (3)
firmly.
Working position
N Reverse the sequence described
above to swing the handles up and
turn the handlebar clockwise.
Mounting Loop Handle with Barrier Bar
N Fit the square nuts (1) in the barrier
bar (2); the holes must line up.
N Place the clamp (3) in the loop
handle (4) and position them both
against the drive tube (5).
N Position the clamp (6) against the
drive tube.
N Place the barrier bar (2) in position
as shown.
N Line up the holes.
N Insert the screws (7) in the holes
and screw them into the barrier
bar (2) as far as stop.
N Go to "Securing the Loop Handle".
7
3
0000-GXX-0513-A0
Mounting the Loop Handle
2
002BA098 KN
1
1
5
4
002BA099 KN
2
3
6
7
