Stihl FS 131 User Manual

FS 131, FS 131 R
English
23
Polymer Version

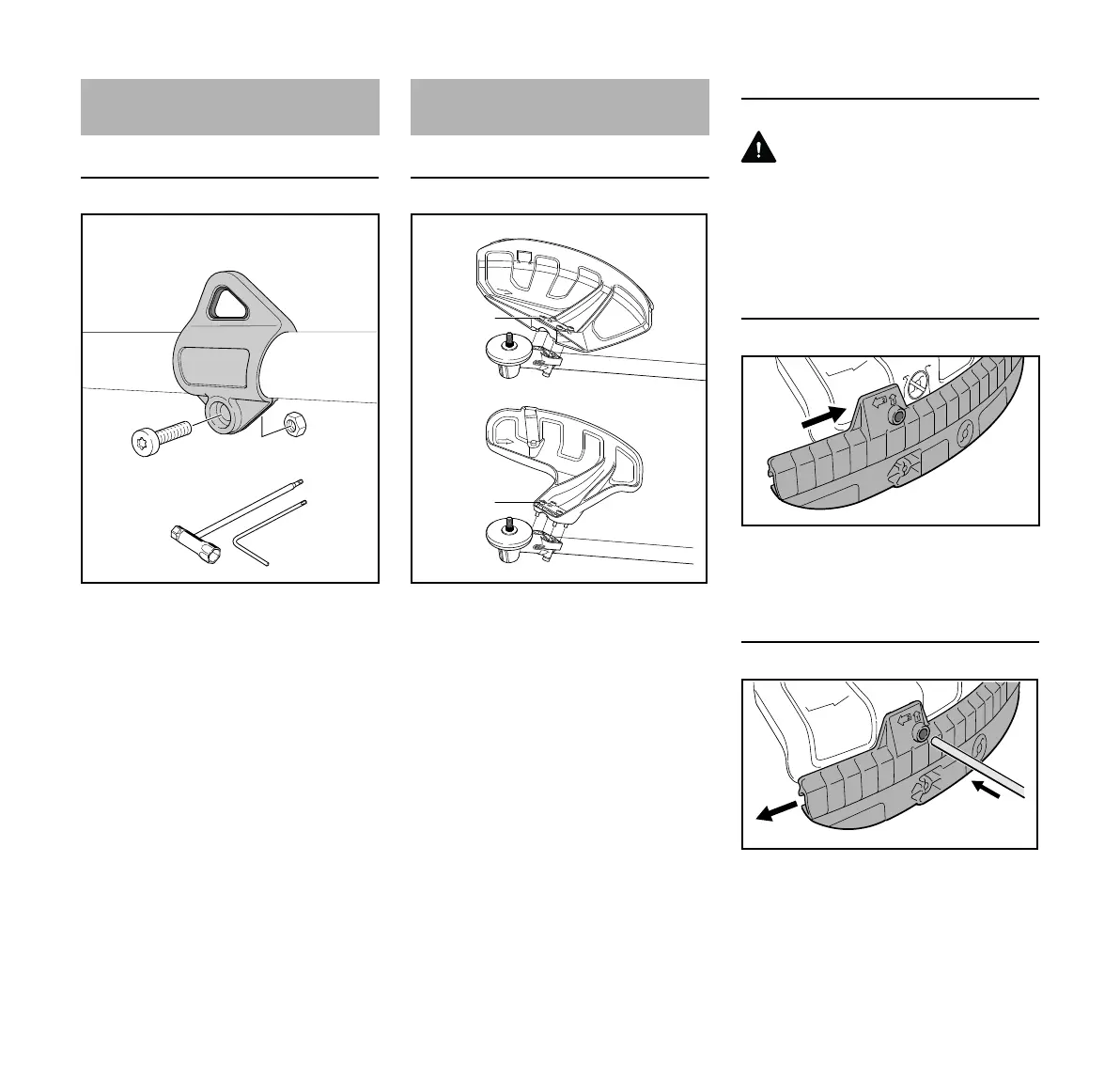

For position of carrying ring see "Main
Parts".
N Push the carrying ring (1) over the
drive tube.
N Insert the M5 nut in the hex recess
in the carrying ring.
N Fit the M5x14 screw.
N Line up the carrying ring.
N Tighten down the screw firmly.
Mounting the Deflector
1 Deflector for mowing attachments
2 Deflector for mowing heads
Deflectors (1 and 2) are both mounted to
the gearbox in the same way.
N Place the deflector on the gearbox
flange.
N Insert the screws (3) and tighten
them down firmly.
Fitting the Skirt and Blade
WARNING
Risk of injury from thrown objects and
contact with the cutting attachment.
These parts must be fitted to the
deflector (1) when you use a mowing
head.
Fitting the Skirt
N Slide the lower guide slot of the skirt
onto the deflector – it must snap into
position.
Removing the Skirt
N Insert the stop pin into the hole in
the skirt and use it to push the skirt
to the left.
N Pull the skirt off the deflector.
Fitting the Carrying Ring
1
002BA529 KN
Mounting the deflector
002BA636 KN
2
1
3
3
002BA637 KN
1.
2.
002BA646 KN

Stihl FS 131 Specifications

General

Type	Brush cutter
Cordless	Yes
Head type	Blade
Handle type	U-type handle
Engine power	1.9 hp
Product color	Black, Metallic, Orange
Uncertainty K	2 m/s²
Rotational speed	8500 RPM
Number of strokes	4
Sound power level	109 dB
Fuel tank capacity	0.71 L
Vibration emission	4.9 m/s²
Engine displacement	36.3 cm³
Sound pressure level	98 dB
Cutting diameter (max)	- mm
Power source	Gasoline

Weight and Dimensions

Length	1800 mm
Weight	5800 g
