Stihl FS 131 User Manual

FS 131, FS 131 R
English
31

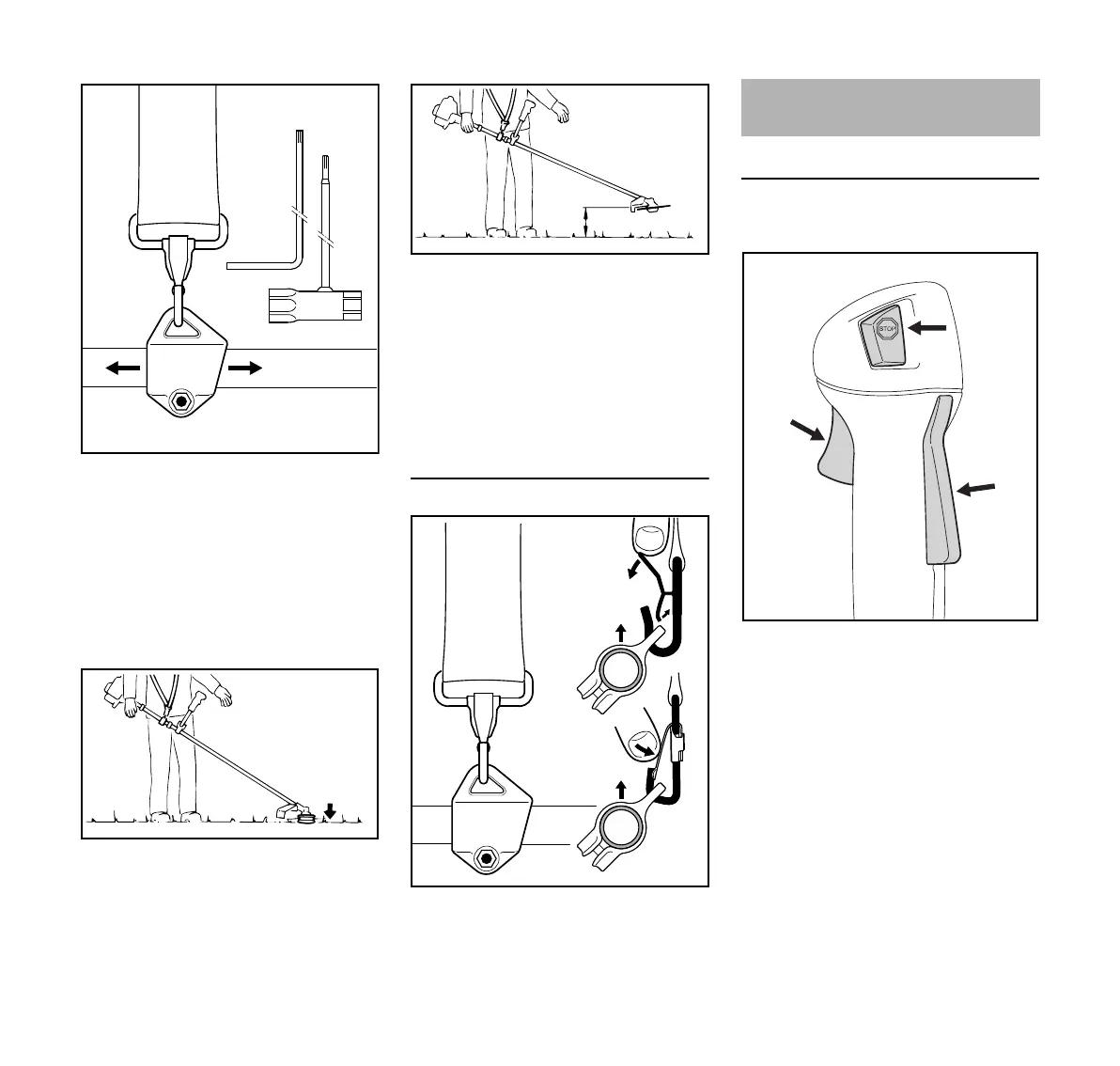

N Loosen the screw (1).
N Slide the carrying ring (2) along the
drive tube.
N Tighten the screw (1) moderately.
N Allow the unit to hang freely.
N Check the position obtained:
Balanced positions
Mowing tools (A) such as mowing
heads, grass cutting blades and brush
knives
N should just touch the ground.
Circular saw blades (B)
N should "hover" about 20 cm (8 in)
above the ground.
When the correct balanced position has
been reached:
N Tighten down the screw (1) on the
carrying ring firmly.
Disconnecting Machine from Harness
N Press down the bar on the
carabiner (1) and pull the carrying
ring (2) out of the carabiner.
Controls
Version with Bike Handle
1 Throttle trigger lockout
2 Throttle trigger
3 Stop switch with Run and Stop
positions. Depress the stop switch
(…) to switch off the ignition – see
"Function of stop switch and ignition
system".
002BA662 KN
1
2
A
002BA034 KN
B
002BA035 KN
002BA661 KN
2
1
1
1
2
2
Starting / Stopping the
Engine
3
1
2
0000-GXX-0494-A0

Stihl FS 131 Specifications

General

Type	Brush cutter
Cordless	Yes
Head type	Blade
Handle type	U-type handle
Engine power	1.9 hp
Product color	Black, Metallic, Orange
Uncertainty K	2 m/s²
Rotational speed	8500 RPM
Number of strokes	4
Sound power level	109 dB
Fuel tank capacity	0.71 L
Vibration emission	4.9 m/s²
Engine displacement	36.3 cm³
Sound pressure level	98 dB
Cutting diameter (max)	- mm
Power source	Gasoline

Weight and Dimensions

Length	1800 mm
Weight	5800 g
