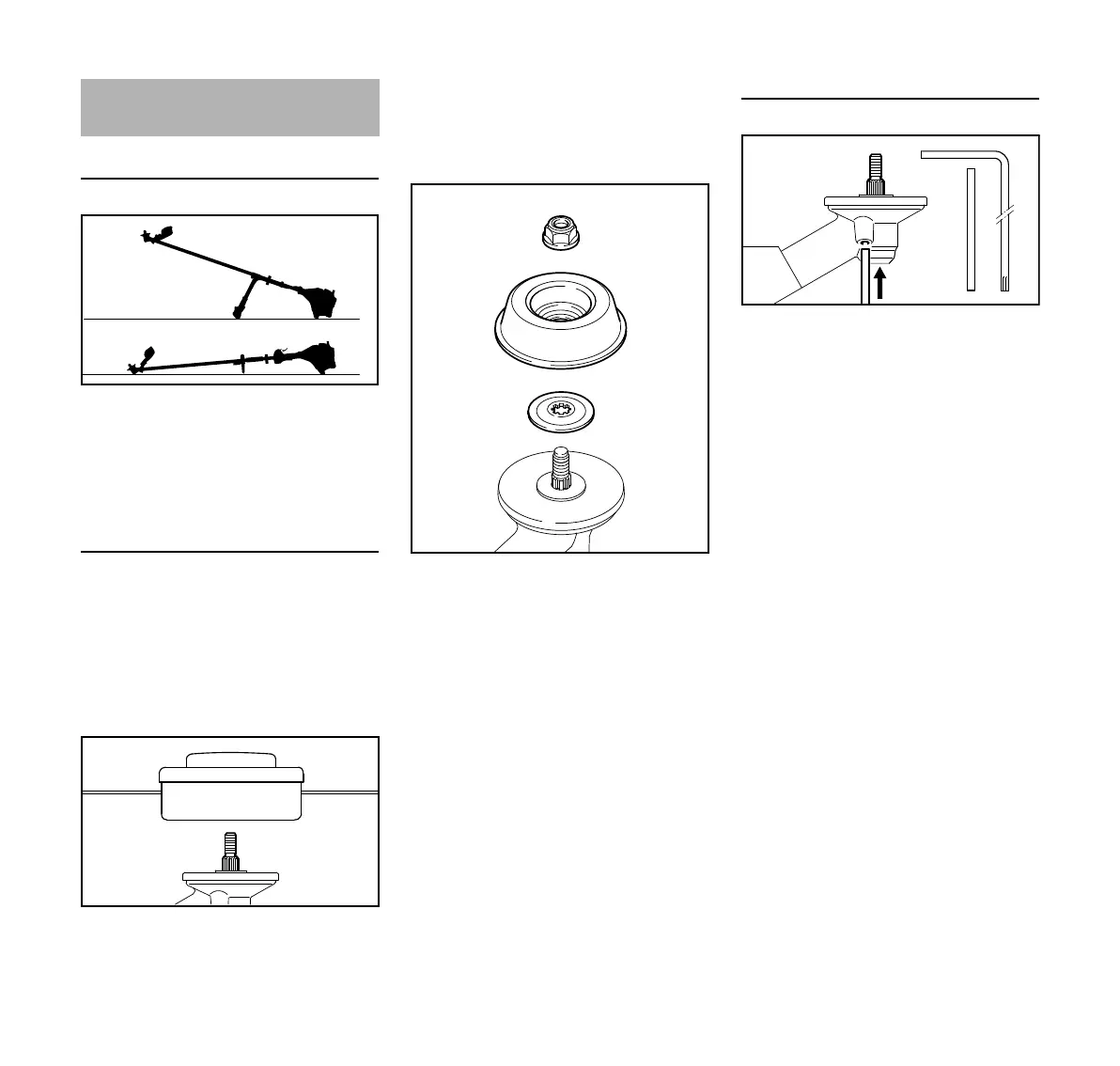

Placing power tool on the ground
N Shut off the engine.
N Lay your power tool on its back so
that the cutting attachment
mounting face is pointing up.
Mounting Hardware for Cutting
Attachments
The mounting hardware supplied
depends on the cutting attachment that
comes as original equipment with the
new machine.
If mounting hardware is not packed with
machine
Only mowing heads may be used which
mount directly to the shaft (1).
If mounting hardware is packed with
machine
Mowing heads and metal cutting
attachments may be mounted.
Depending on the cutting attachment, it
may be necessary to use the nut (2),
rider plate (3) and thrust washer (4).
These parts are included in a kit
supplied with the machine and are also
available as special accessories.
Block the shaft.
The output shaft (1) must be blocked
with the stop pin (2) or screwdriver (2) to
mount or remove cutting tools. These
parts come standard with the machine or
are available as special accessories.
N Insert the stop pin (2) or
screwdriver (2) in the hole (3) in the
gearbox as far as stop – and apply
slight pressure.
N Rotate shaft or cutting attachment
until the stop pin slips into position
and blocks the shaft.
Mounting the Cutting
Attachment
002BA104 KN
1
0812BA019 KN
0812BA020 KN
2
3
4
2
3
1
002BA569 KN
2
