Stihl HL 95 User Manual

HL 95, HL 95 K, HL 100, HL 100 K
English
11

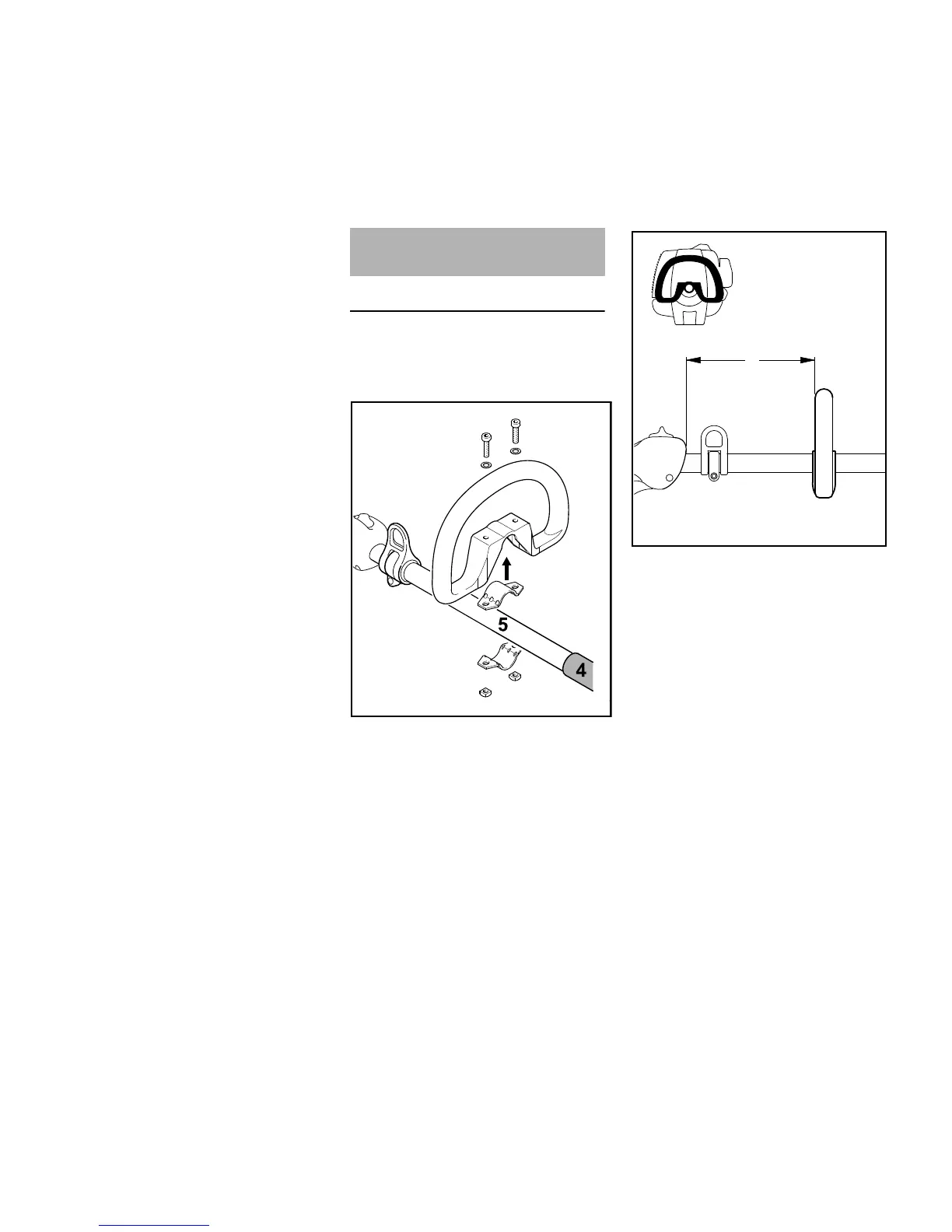

Mounting the Loop Handle
Necessary on versions with long drive
tube and 135° adjustable cutter bar (not
on HL 95 K, HL 100 K).
N Place the clamp (1) in the loop
handle (2) and position them both
against the drive tube (5) between
the carrying ring (3) and handle
hose (4).
N Place the clamp (6) against the
drive tube.
N Line up the holes.
N Insert the screws (7) with
washers (8).
N Fit the square nuts (9) and screw
home the screws.
N Align the loop handle (2) and move
it to the most comfortable position.
Distance (A) must not be more than
55 cm (recommended: about 35 cm).
N Tighten down the screws firmly.
1)
Must not be mounted to versions
with short shaft (HL 95 K,
HL 100 K)
2)
Loop handle required
3)
May be mounted to versions with
handle hose and long shaft (HL 95,
HL 100)
Assembling the Unit
7
8
2
388BA034 KN
1
6
7
8
9
9
3
388BA035 KN
2
A

Stihl HL 95 Specifications

General

Brand	Stihl
Model	HL 95
Category	Pole Saw
Language	English
