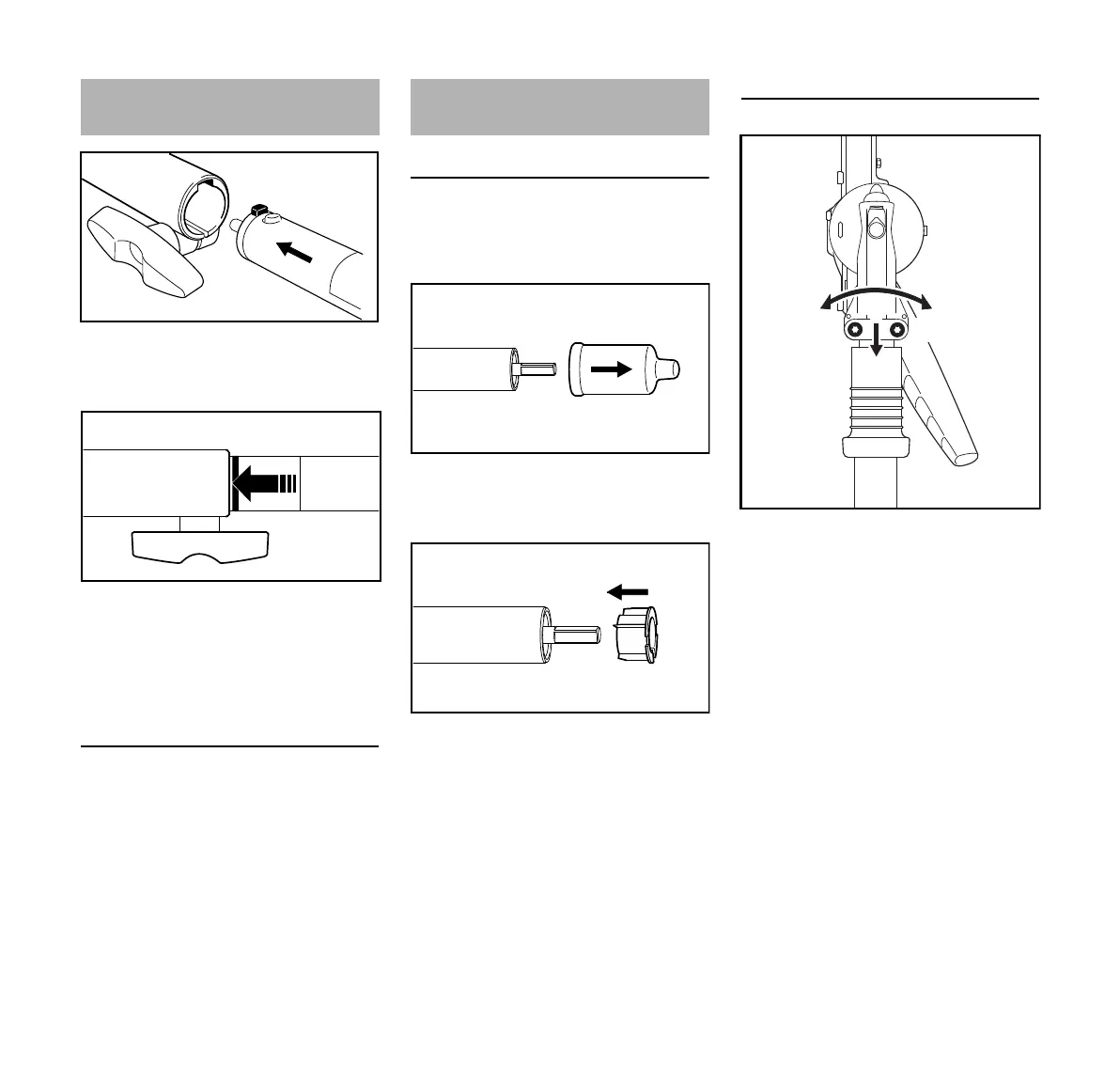

N Push the lug (1) on the drive tube
into the slot (2) in the coupling
sleeve as far as stop.
When correctly installed, the red line (3)
(arrow point) must be flush with the end
of the coupling sleeve.
N Tighten down the star knob (4)
firmly.
Removing the KombiTool
N Reverse the above sequence to
remove the drive tube.
Removing the Potective Cap
If a cap is fitted on the end of the
KombiTool's or basic power tool’s drive
tube:
N Pull the protective cap off the end of
the drive tube and keep it in a safe
place.
If the plug comes out of the drive tube
when you pull off the cap:
N Push the plug into the drive tube as
far as stop.
Mounting the Gearbox
N Loosen the clamp screws (10).
N Push the gearbox (11) onto the
drive tube (5), turn the gearbox (11)
back and forth as necessary.
Mounting the KombiTool
Assembling the Unit
