Stihl HL-KM User Manual

11KM 110, KM 130
English / USA
The following STIHL KombiTools may be
mounted on the KombiEngine
1)
Barrier bar must be mounted on
loop handle
2)
Unsuitable or not approved for
KombiEngines with bike handle

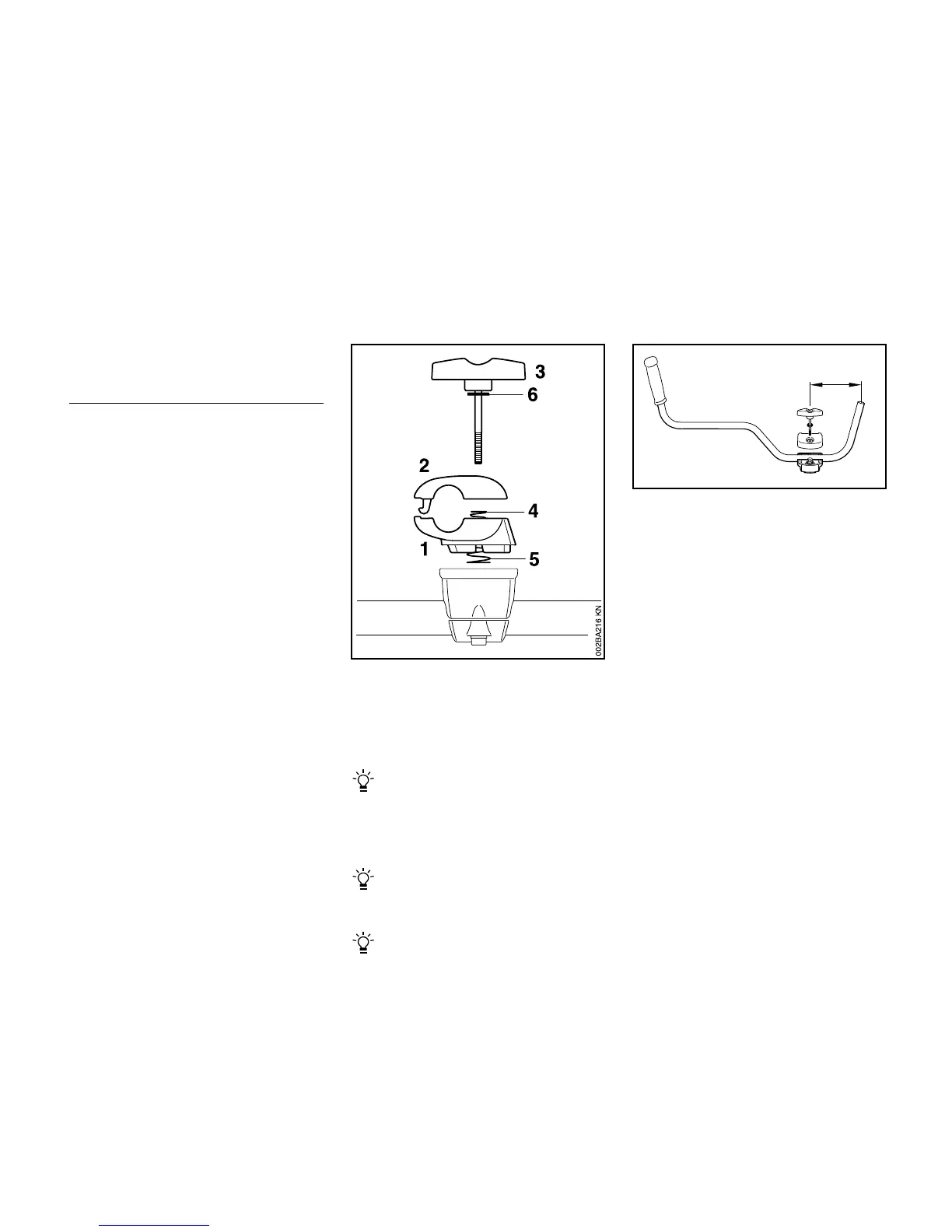

Removing Clamp Moldings
: Hold the lower clamp (1) and upper
clamp (2) firmly.
: Release the wing screw (3).
The clamps are loose once the wing
screw has been released. They are
pushed apart by the two springs (4
and 5).
: Pull out the wing screw.
Washer (6) remain at the tommy
screw .
: Separate the clamps.
Springs (4) and (5) remain in the
lower clamp.
Mounting the Handlebar
: Place the handlebar (7) in the lower
clamp (1) so that distance A is no
more than 6 in (15 cm).
: Place the upper clamp in position
and hold both clamps together.
: Push the wing screw, with washer,
through the two clamps as far as
stop – hold all parts together and
secure them.
KombiTool Purpose
FS-KM Brushcutter with
mowing head
FS-KM
1)
Brushcutter with
grass cutting blade
HL-KM 0/90°
1) 2)
Hedge trimmer,
adjustable
HL-KM 135°
1) 2)
Hedge trimmer,
adjustable
HL-KM 0°
2)
Hedge trimmer
FH-KM
1)
Power scythe
HT-KM
2)
Pole pruner
BF-KM
1)
Pick tine cultivator
FCB-KM
2)
FCS-KM
2)
Power edger
KB-KM
2)
Bristle brush
KW-KM
2)
PowerSweep
Mounting the Bike Handle
1
7
A
250BA046 KN
