KM 110, KM 130
Loop handle with barrier bar
: Insert square nuts (1) in the
barrier bar (2).
: Line up the holes.
: Place the clamp (3) in the loop
handle (4) and position them both
against the drive tube (5).
: Fit the clamp (6) and place the
barrier bar (2) in position.
Note correct position.
: Line up the holes.
: Insert screws (7) in holes and screw
them into the barrier bar as far as
stop.
: Go to “Securing the loop handle”.
Loop handle without barrier bar
: Place the clamp (3) in the loop
handle (4) and position them both
against the drive tube (5).
: Fit the clamp (6) and line up the
holes.
: Fit washers (7) on screws (8).
: Insert screws (8) in holes and screw
on the square nuts (1) as far as
stop.
: Go to “Securing the loop handle”.

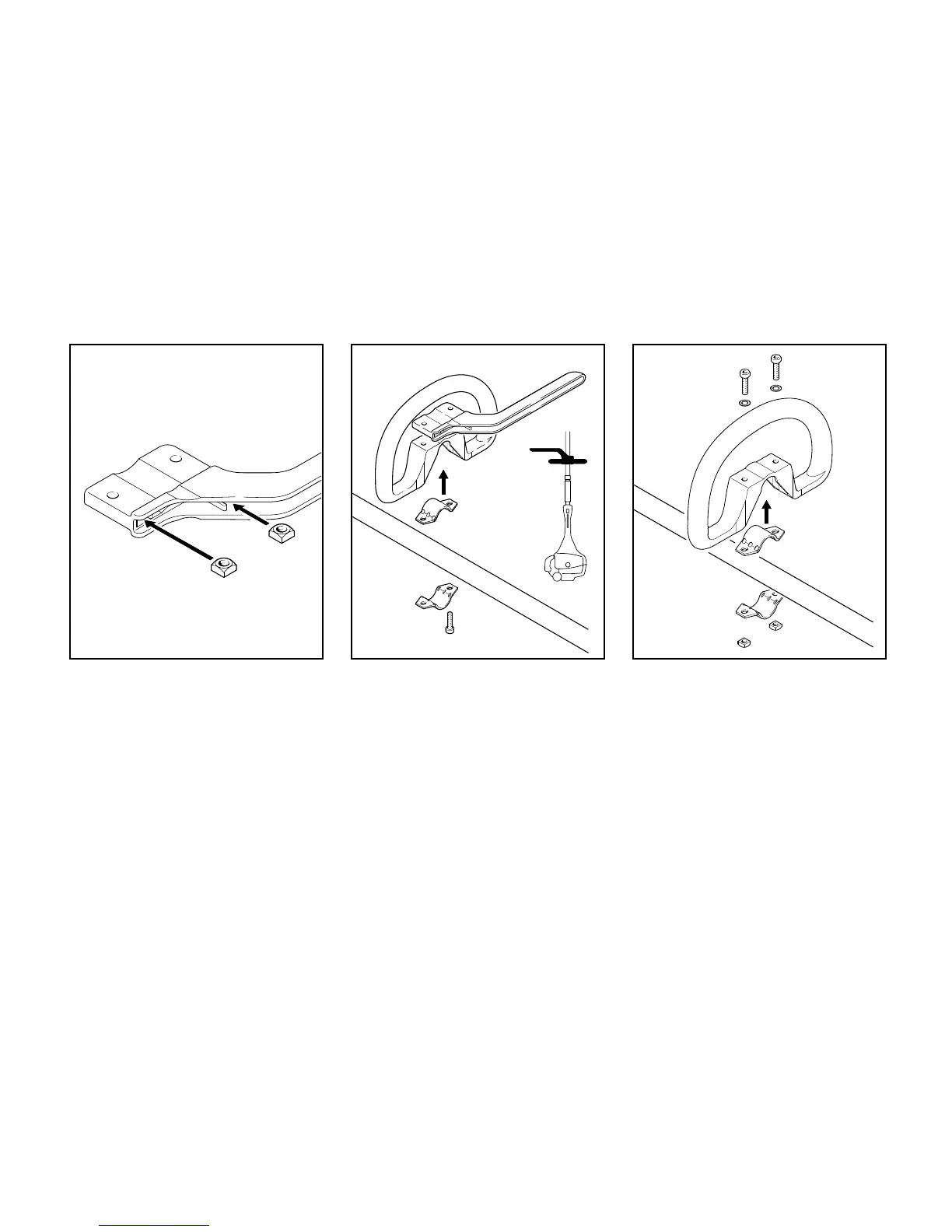

Mounting the Loop Handle
2
002BA098 KN
1
1
5
4
002BA099 KN
2
3
6
7
4
5
002BA136 KN
1
6
1
3
8
7
8
7
