Stihl HSE 61 User Manual

10 HSE 61, HSE 71, HSE 81

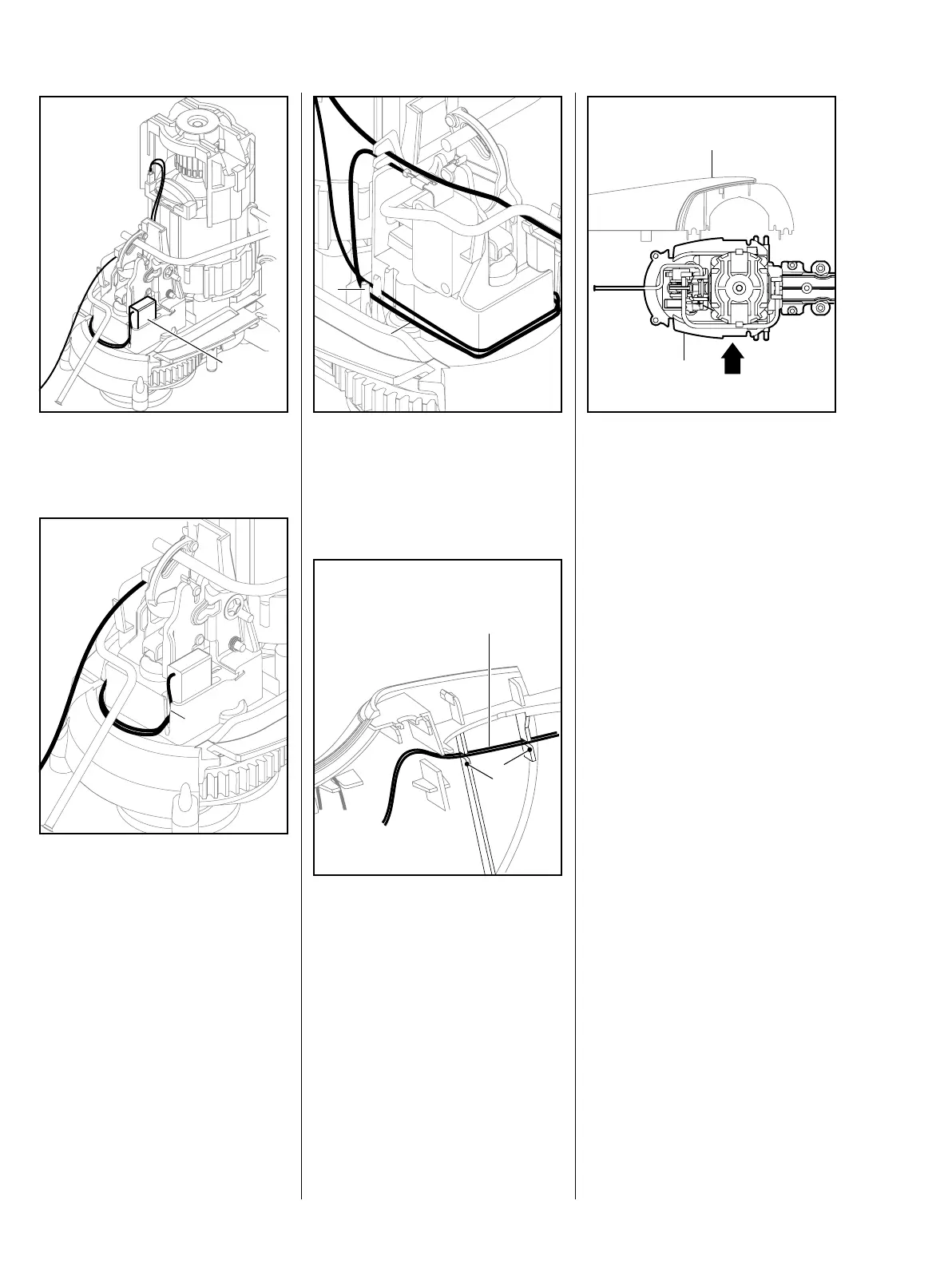

: Fit the capacitor (1) in its holder
(2).
: Engage both black wires (1) from
the capacitor in the slot.
1
2
1
: Push the black connecting wire
(1) into the slot (2).
– Connect the blue wire to the
switch.
: Push the blue wire (1) into the
two slots (2) in the housing and
secure in position.
2
1
1
2
2
: Place the gear housing (1) with
its components in the motor
housing (2).
– Assemble the rear handle,
b 6.4.3.
– Close the rear handle, b 6.4.4.
– Close the housing, b 6.2.
2
1

Stihl HSE 61 Specifications

General

Blade size	500 mm
Blade type	Double blade
Product color	Orange, Black, Grey
Vibration emission	5.3 m/s²
Engine power	500 W
Power source	AC
AC input voltage	230 - 240 V
Power cable length	0.31 m

Weight and Dimensions

Depth	1130 mm
Weight	3900 g
