27HSE 61, HSE 71, HSE 81

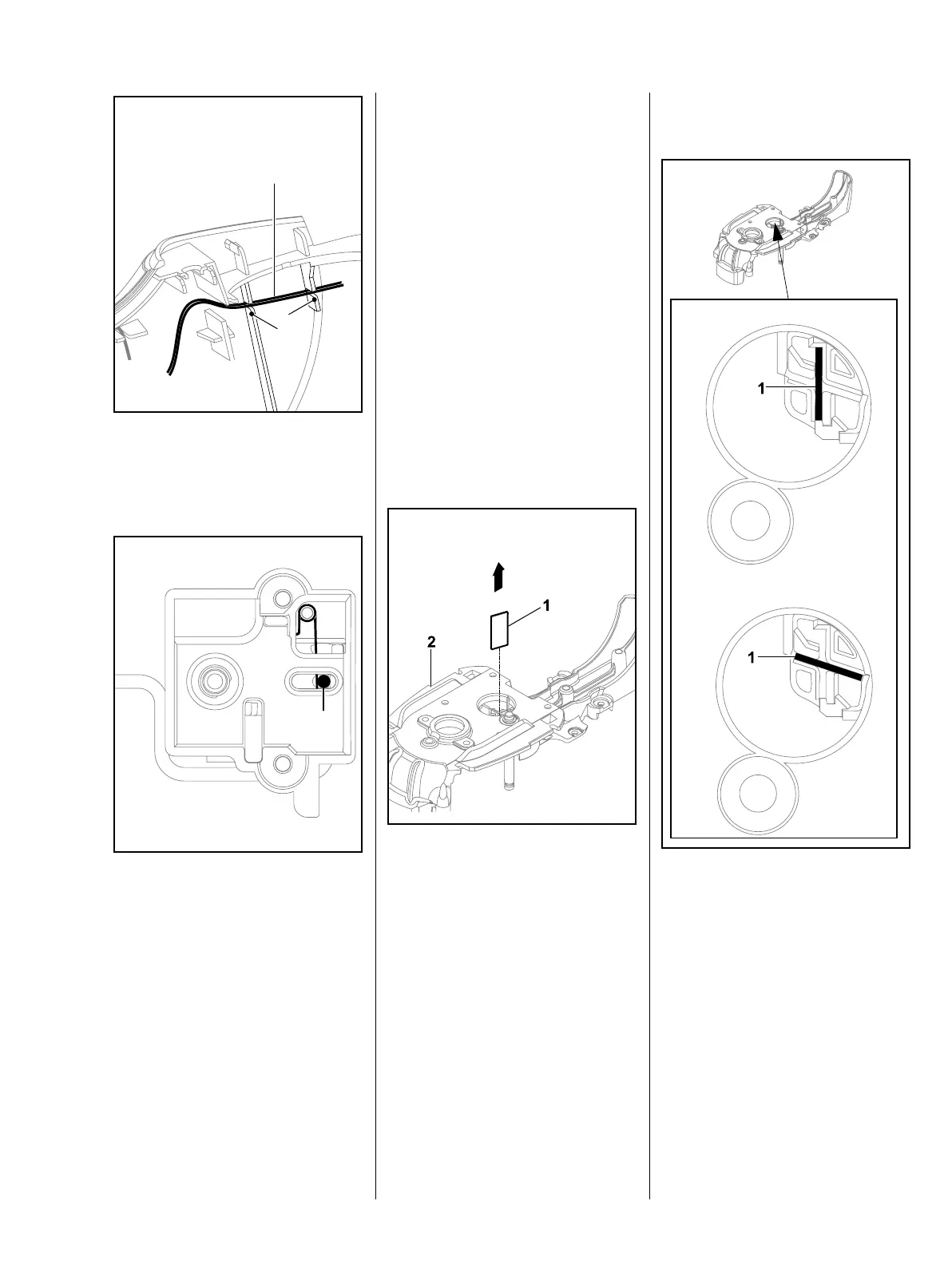

: Push the blue wire (1) into the
two slots (2) in the housing and
secure in position.
: Check that the switch pin (1) is
properly installed in the control
unit.
– Install the switch pin, b 7.2.3.
1
2
2
1
– Install the gear, b 5.2.4.
– Install the drive gear, b 5.1.5.
– Assemble the rear handle,
b 6.4.3.
– Close the rear handle, b 6.4.4.
– Close the housing, b 6.2.
5.5 Replacing the support
plate
From serial number 9 72 393 578
5.5.1 Removing the support
plate
– Remove the gearbox plate,
b 5.4.1.
: Remove the support plate (1)
from the gear housing (2).
5.5.2 Installing the support
plate
: Push home the support plate (1)
(note installed position for
different models).
HSE 61
HSE 71, HSE 81

Stihl HSE 61 Specifications

General

Blade size	500 mm
Blade type	Double blade
Product color	Orange, Black, Grey
Vibration emission	5.3 m/s²
Engine power	500 W
Power source	AC
AC input voltage	230 - 240 V
Power cable length	0.31 m

Weight and Dimensions

Depth	1130 mm
Weight	3900 g
