12 HSE 61, HSE 71, HSE 81

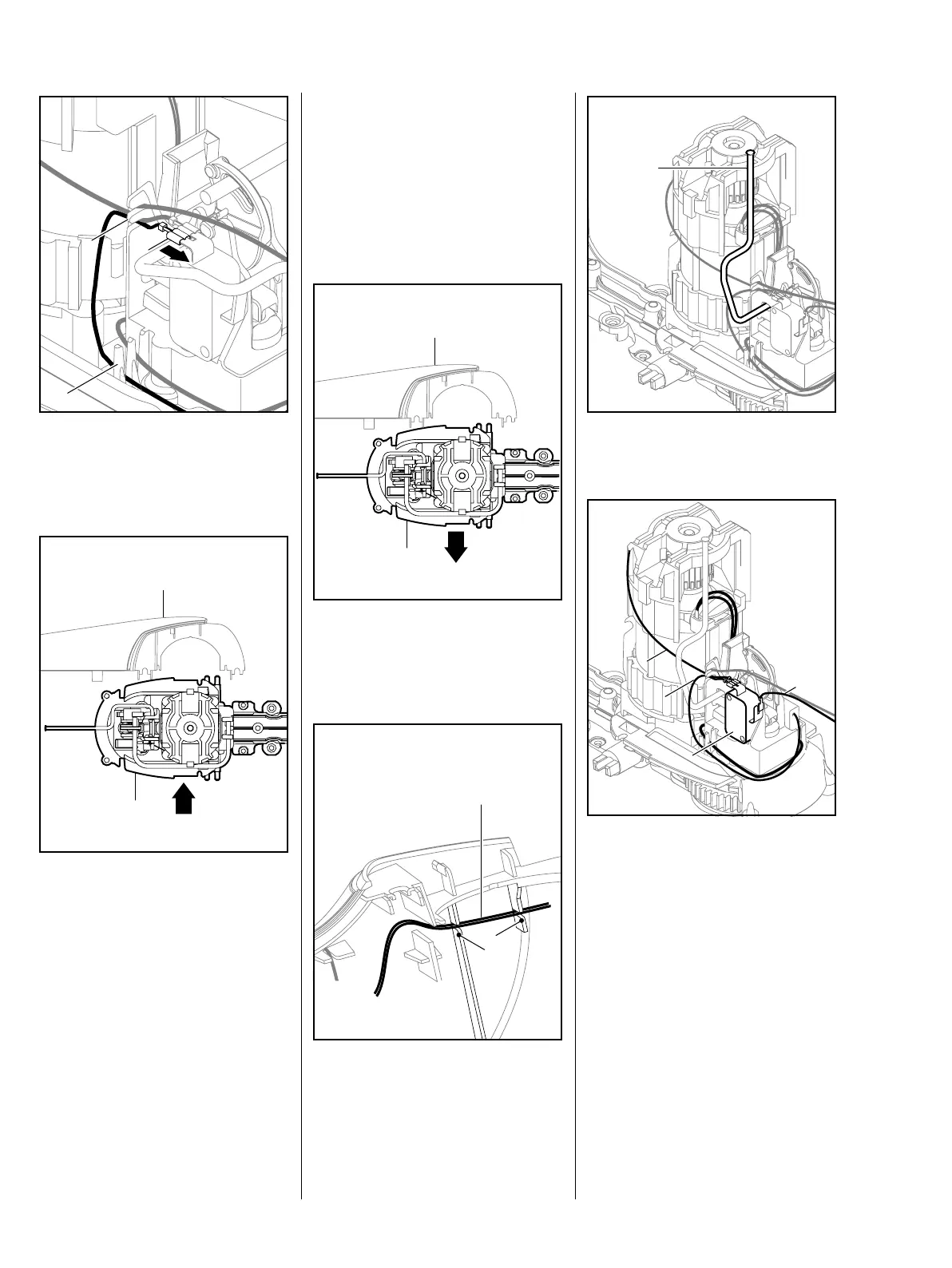

: Connect terminal socket of black
wire (1) to the switch and push
the wire into the slots (2).
: Place the gear housing (1) with
its components in the motor
housing (2).
– Assemble the rear handle,
b 6.4.3.
– Close the rear handle, b 6.4.4.
– Close the housing, b 6.2.
– Replace the microswitch.
2
1
2
2
1
3.4.7 Removing the
microswitch
– Open the housing, b 6.1.
– Open the rear handle, b 6.4.1.
– Disassemble the rear handle,
b 6.4.2.
: Take the gear housing (1) with its
components out of the motor
housing (2).
: Push the blue wire (1) into the
two slots (2) in the housing and
secure in position.
2
1
1
2
2
: Swing the rod (1) up.
: Disconnect all wires (1 – 3) from
the microswitch (4).
1
1
2
4
3

Stihl HSE 61 Specifications

General

Blade size	500 mm
Blade type	Double blade
Product color	Orange, Black, Grey
Vibration emission	5.3 m/s²
Engine power	500 W
Power source	AC
AC input voltage	230 - 240 V
Power cable length	0.31 m

Weight and Dimensions

Depth	1130 mm
Weight	3900 g
