54 HSE 61, HSE 71, HSE 81

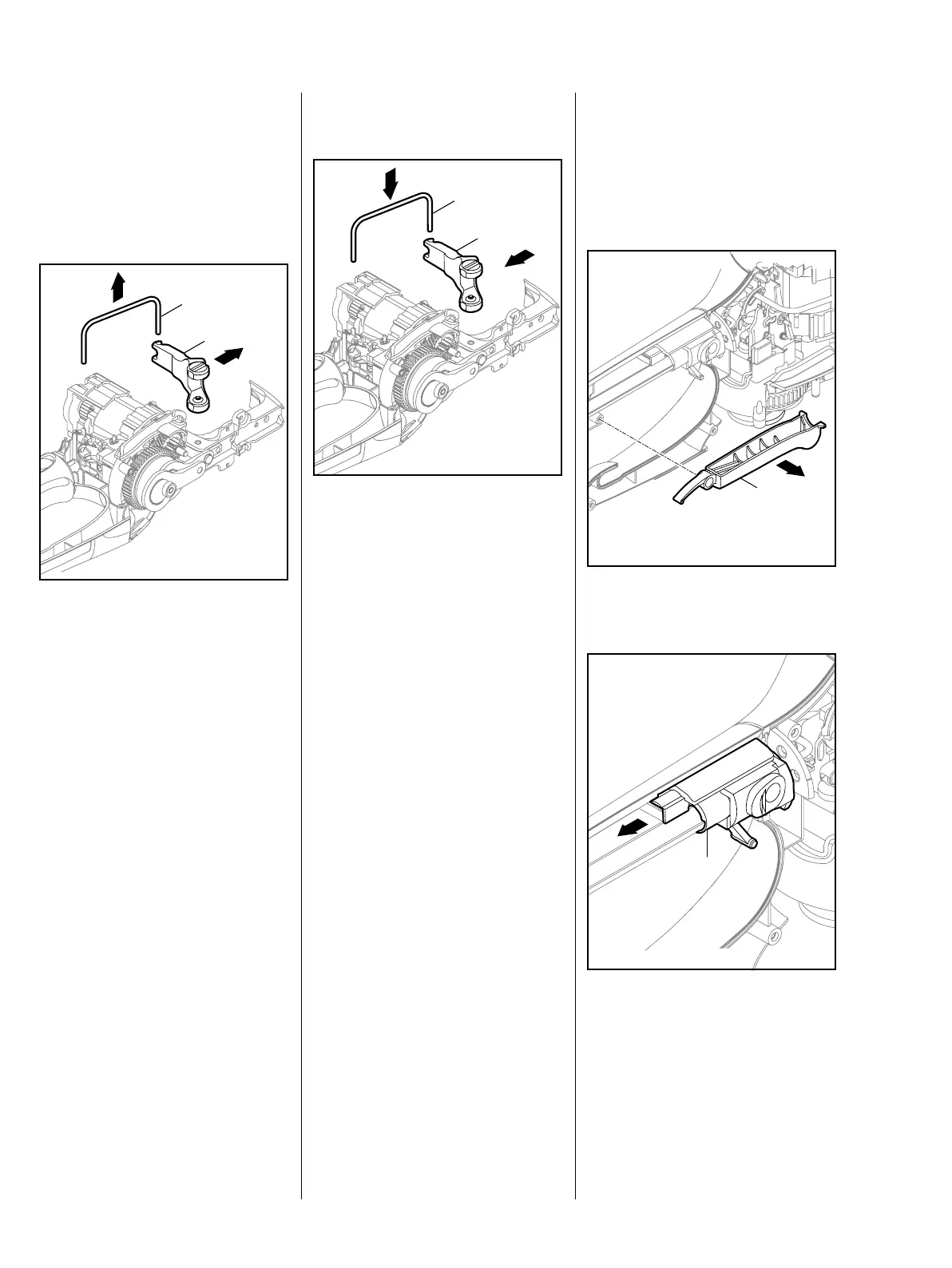

7.5 Replacing the switch
lever (loop handle)
7.5.1 Removing the switch
lever (loop handle)
– Open the housing, b 6.1.
: Remove the switch rod (1).
: Use service tool to lift the switch
lever (2) out of the gear housing.
1
2
7.5.2 Installing the switch lever
(loop handle)
: Fit the switch rod (1).
– Close the housing, b 6.2.
1
2
7.6 Replacing the slide
7.6.1 Removing the slide
– Open the housing, b 6.1.
– Open the rear handle, b 6.4.1.
: Remove the front switch lever (1).
: Pull the slide (1) back and hold it
in that position.
1
1

Stihl HSE 61 Specifications

General

Blade size	500 mm
Blade type	Double blade
Product color	Orange, Black, Grey
Vibration emission	5.3 m/s²
Engine power	500 W
Power source	AC
AC input voltage	230 - 240 V
Power cable length	0.31 m

Weight and Dimensions

Depth	1130 mm
Weight	3900 g
