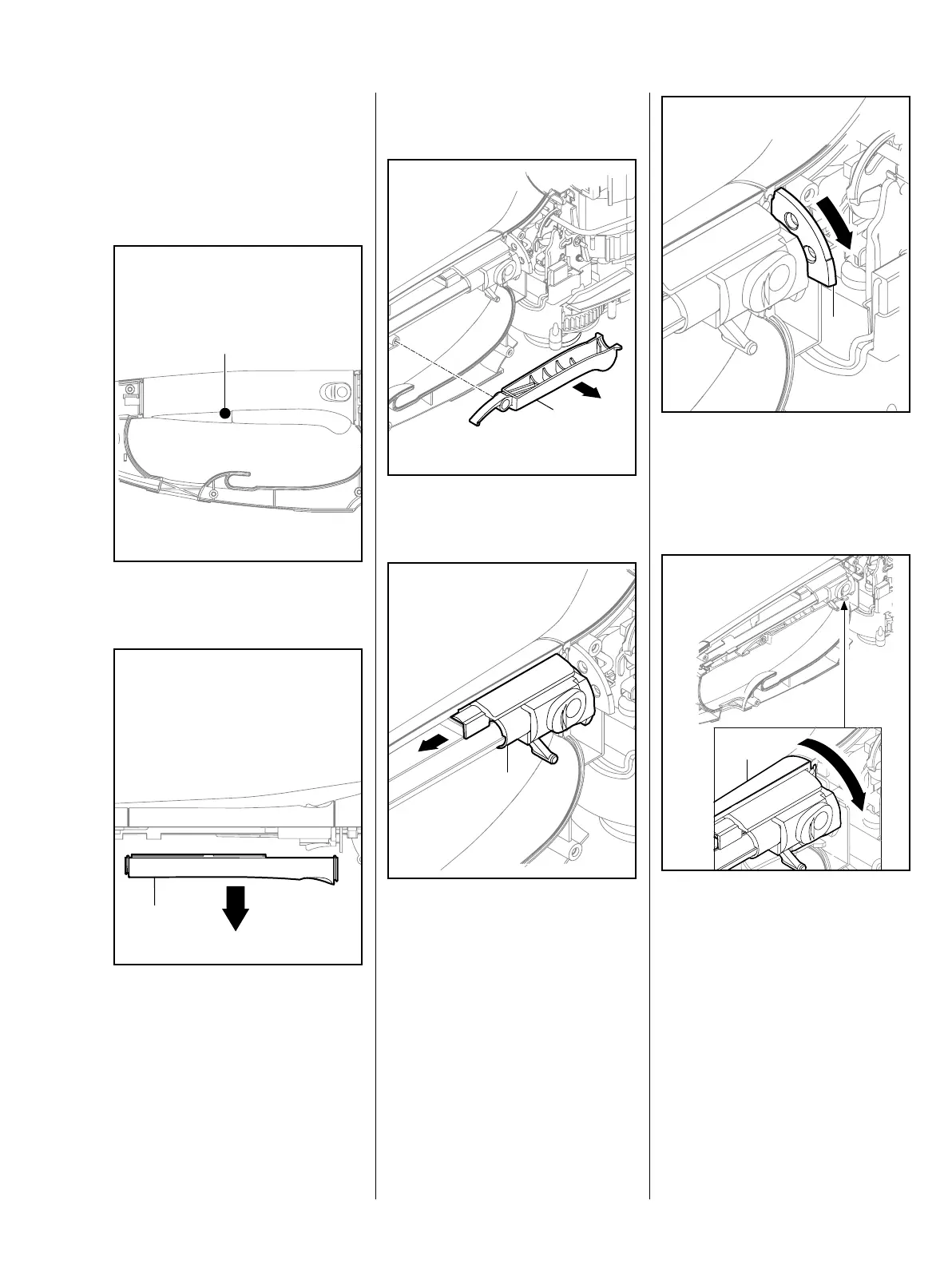

6.4 Servicing the rear handle
– Remove housing half, b 6.1.5.
6.4.1 Opening the rear handle
: Take out the screw (1).
: Remove the handle molding (1)
in the direction of the arrow.
1
1
6.4.2 Disassembling the rear
handle
: Remove the front switch lever (1).
: Pull the slide (1) back and hold it
in that position.
1
1
: Rotate the quadrant (1) in
direction of arrow and remove it
from the housing. Let go of the
slide.
: Rotate the handle molding with
slide (1) about 90° in direction of
arrow and remove it from the
housing.
1
1

Stihl HSE 61 Specifications

General

Blade size	500 mm
Blade type	Double blade
Product color	Orange, Black, Grey
Vibration emission	5.3 m/s²
Engine power	500 W
Power source	AC
AC input voltage	230 - 240 V
Power cable length	0.31 m

Weight and Dimensions

Depth	1130 mm
Weight	3900 g
