17HSE 61, HSE 71, HSE 81

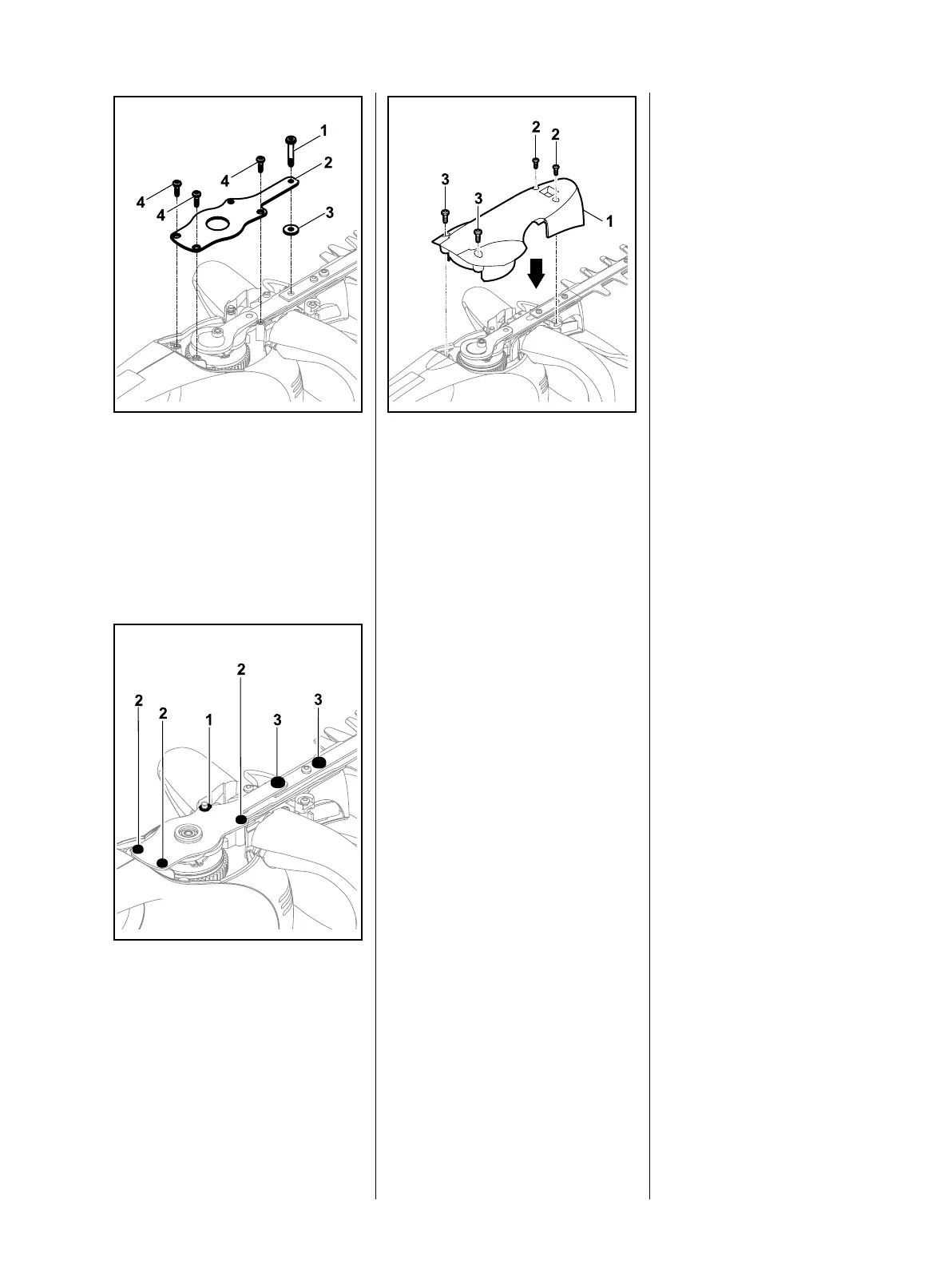

: Insert the screw (1) through the
hole in the bearing plate (2).
: Place the washer (3) on the hole.
: Insert the screw (1) (with bearing
plate (2)) through the washer and
tighten it down moderately.
: Fit the screws (4).
: Fit the circlip (1) (only on models
HSE 71, HSE 81).
: Tighten down the screws (2)
firmly (2.9 Nm).
: Tighten down the screws (3)
firmly (2.9 Nm).
b 4.1.1
: Fit the bottom cover (1) and
tighten down the self-tapping
screws (2) to a torque of 1.5 Nm.
Now tighten down the screws (3)
to a torque of 2.9 Nm.

Stihl HSE 61 Specifications

General

Blade size	500 mm
Blade type	Double blade
Product color	Orange, Black, Grey
Vibration emission	5.3 m/s²
Engine power	500 W
Power source	AC
AC input voltage	230 - 240 V
Power cable length	0.31 m

Weight and Dimensions

Depth	1130 mm
Weight	3900 g
