38 HSE 61, HSE 71, HSE 81

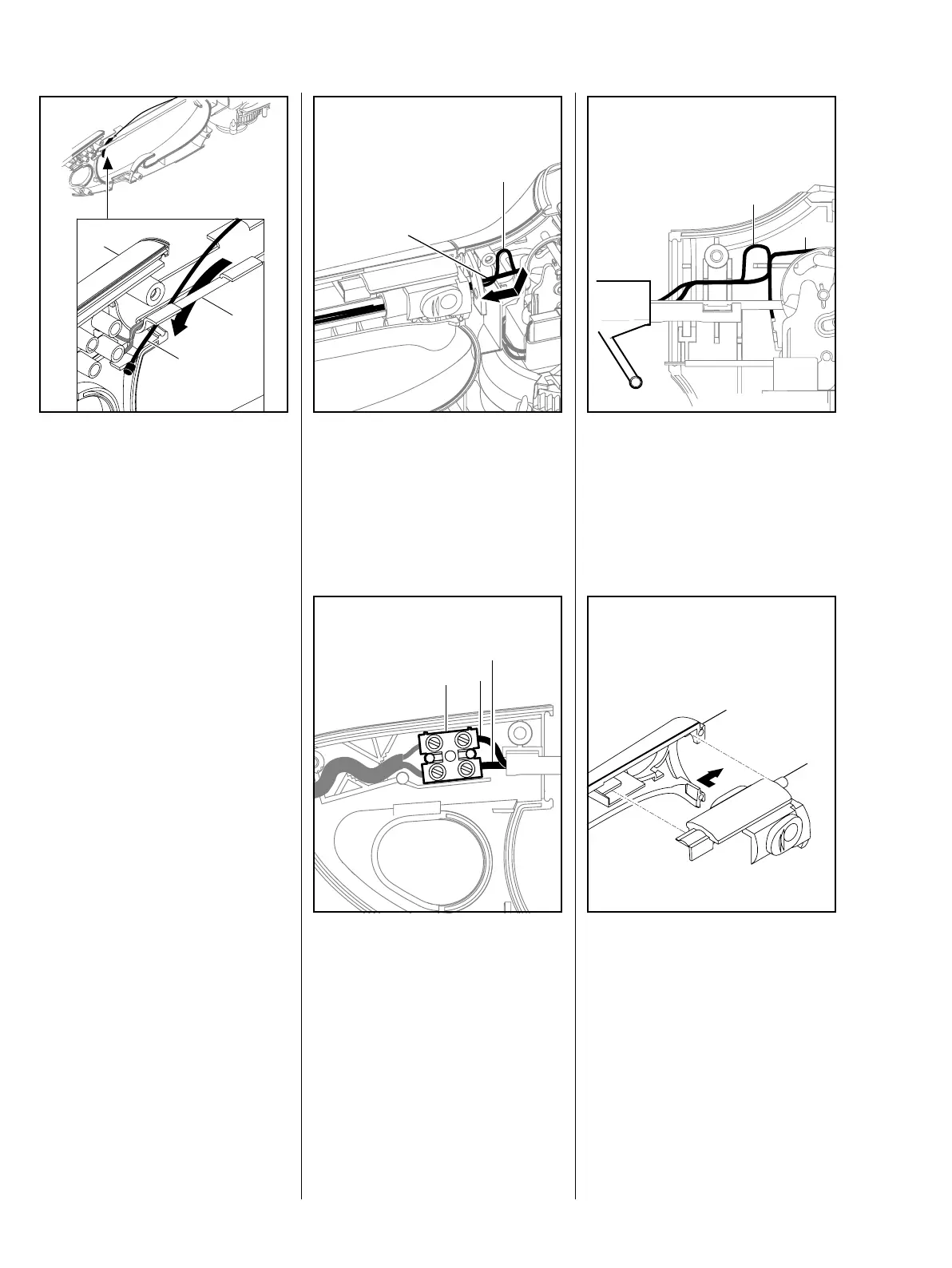

: Pass the rear end of the cable (1)
through the slot in the support
and then push the support (2) into
the housing (3).
3
2
1
: Thread the black wire (1) through
the sliding components to the
rear.
: Thread the blue wire (2) through
the sliding components to the
rear.
: Connect both wires (1) and (2) to
the terminal block (3).
1
2
3
1
2
: Pull the black wire (1) forward to
take up slack and push it into the
retaining slots.
: Pull the blue wire (2) forward to
take up slack and push it into the
retaining slot.
: Place the slide (1) in the handle
molding (2).
2
1
2
1

Stihl HSE 61 Specifications

General

Blade size	500 mm
Blade type	Double blade
Product color	Orange, Black, Grey
Vibration emission	5.3 m/s²
Engine power	500 W
Power source	AC
AC input voltage	230 - 240 V
Power cable length	0.31 m

Weight and Dimensions

Depth	1130 mm
Weight	3900 g
