47HSE 61, HSE 71, HSE 81

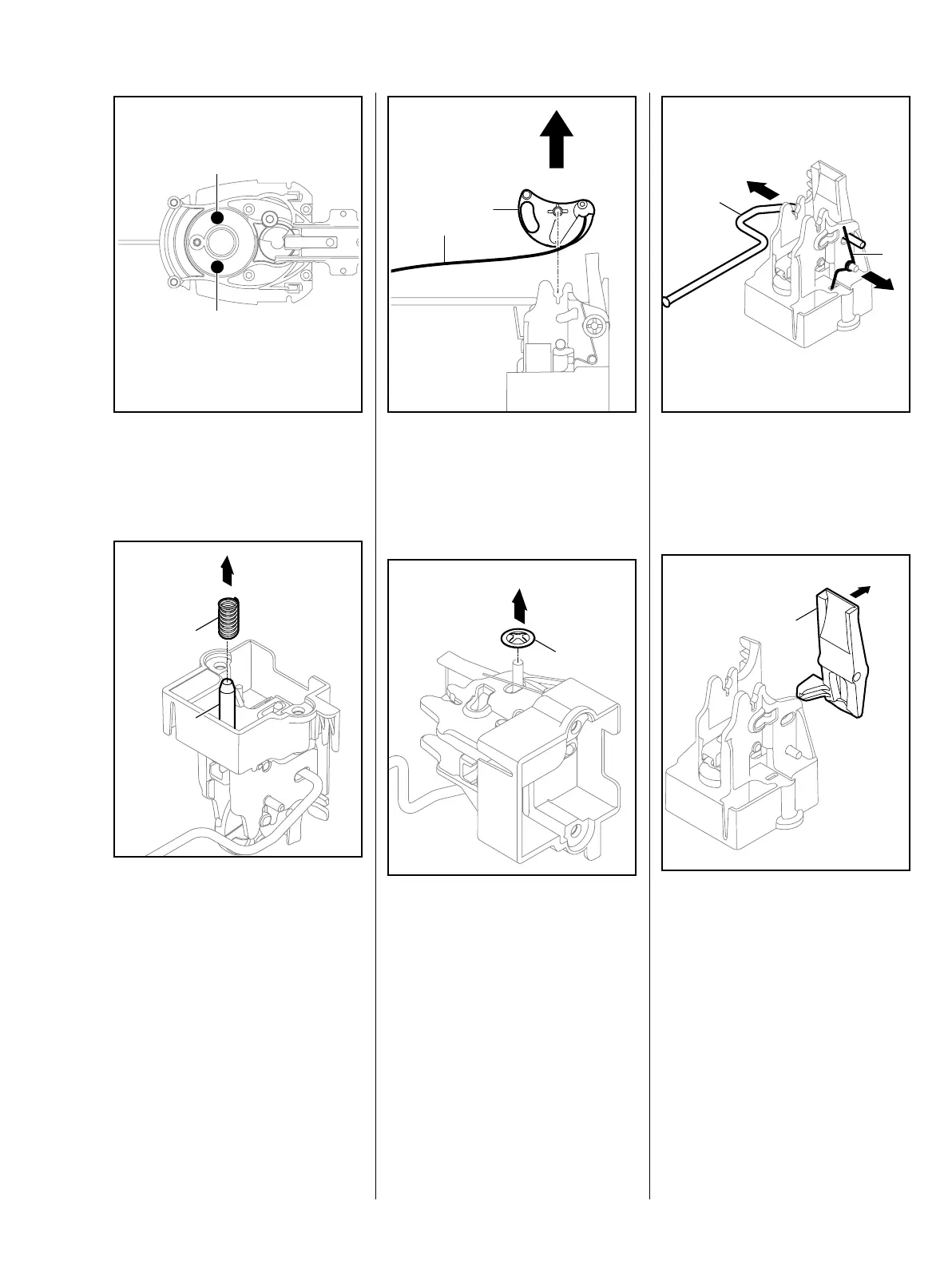

: Loosen the screws (1).
: Remove the complete control
unit from the gear housing.
: Take the coupling pin (1) with
spring (2) out of the control unit.
1
1
2
1
: Press the rear rocker (1) down
and take it out of the control unit.
: Disconnect the cable (2) from the
rocker.
(
: Take the Starlock locking ring (1)
off the rod.
1
2
1
: Pull the rod (1) out of the control
unit in the direction of the arrow
and remove the spring (2) in the
direction of the arrow.
: Remove the switch rocker (1).
1
2
1

Stihl HSE 61 Specifications

General

Blade size	500 mm
Blade type	Double blade
Product color	Orange, Black, Grey
Vibration emission	5.3 m/s²
Engine power	500 W
Power source	AC
AC input voltage	230 - 240 V
Power cable length	0.31 m

Weight and Dimensions

Depth	1130 mm
Weight	3900 g
