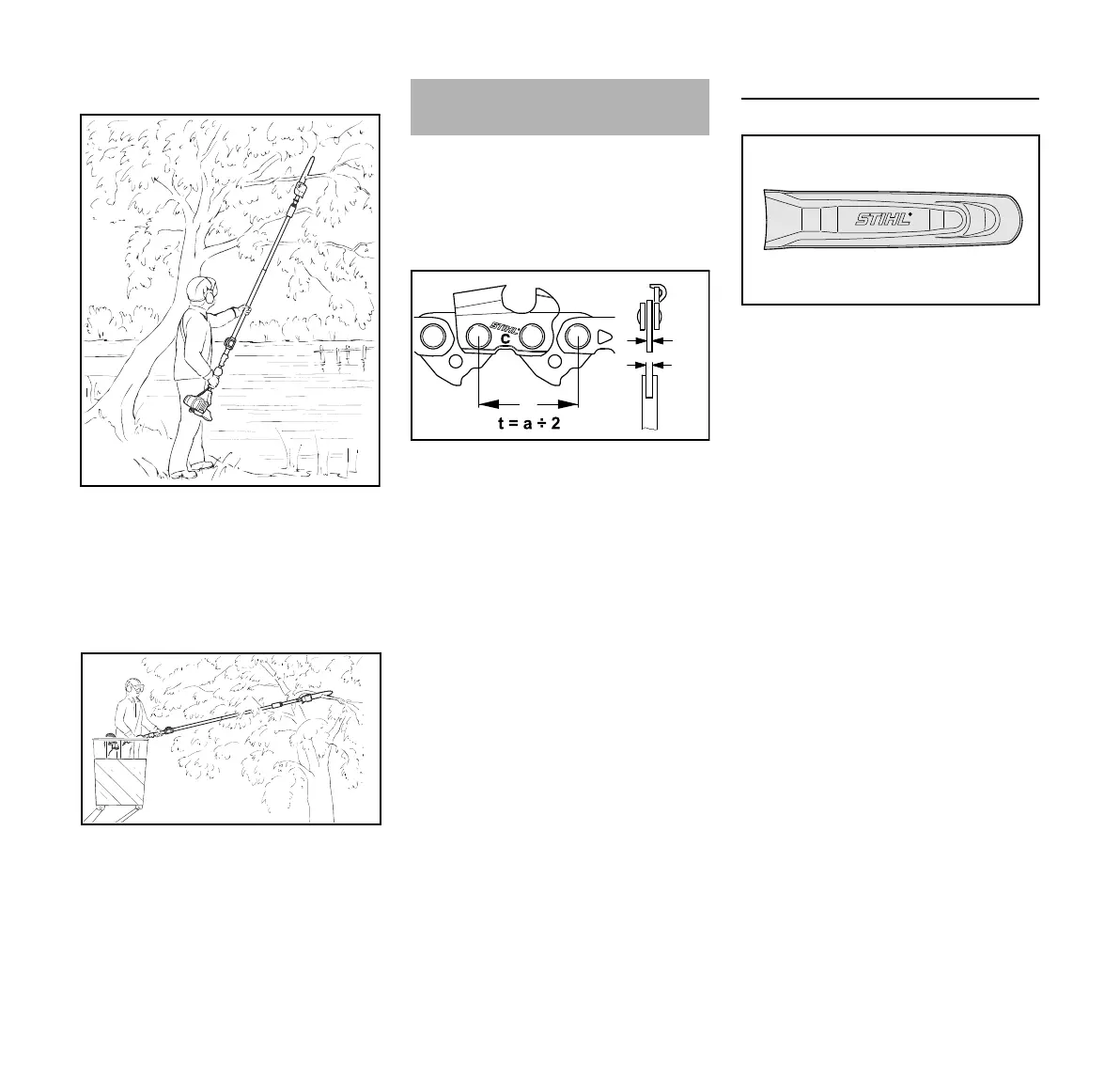

Cutting above obstacles
The machine's long reach makes it
possible to prune branches that are
overhanging obstacles, such as rivers or
lakes. The tool angle in this case
depends on the position of the branch.
Cutting from a lift bucket
The machine's long reach enables
cutting to be performed next to the trunk
without the risk of the lift bucket
damaging other branches. The tool
angle in this case depends on the
position of the branch.
A cutting attachment consists of the saw
chain, guide bar and chain sprocket.
The cutting attachment that comes
standard is designed to exactly match
the pole pruner.
– The pitch (t) of the saw chain (1),
chain sprocket and the nose
sprocket of the Rollomatic guide bar
must match.
– The drive link gauge (2) of the saw
chain (1) must match the groove
width of the guide bar (3).
If non-matching components are used,
the cutting attachment may be damaged
beyond repair after a short period of
operation.
Chain scabbard
Your pole pruner comes standard with a
chain scabbard that matches the cutting
attachment.
If you use guide bars of different lenghts
on the pole pruner, the length of the
chain scabbard must be matched to the
guide bar to reduce the risk of injury. It
should cover the full length of the guide
bar.
The length of the matching guide bars is
marked on the side of the chain
scabbard.
0000-GXX-1568-A0
0000-GXX-1569-A0
Cutting Attachment
001BA248 KN
1
2
3
a
001BA244 KN
