HT 102, HT 103, HT 132, HT 133
English
17

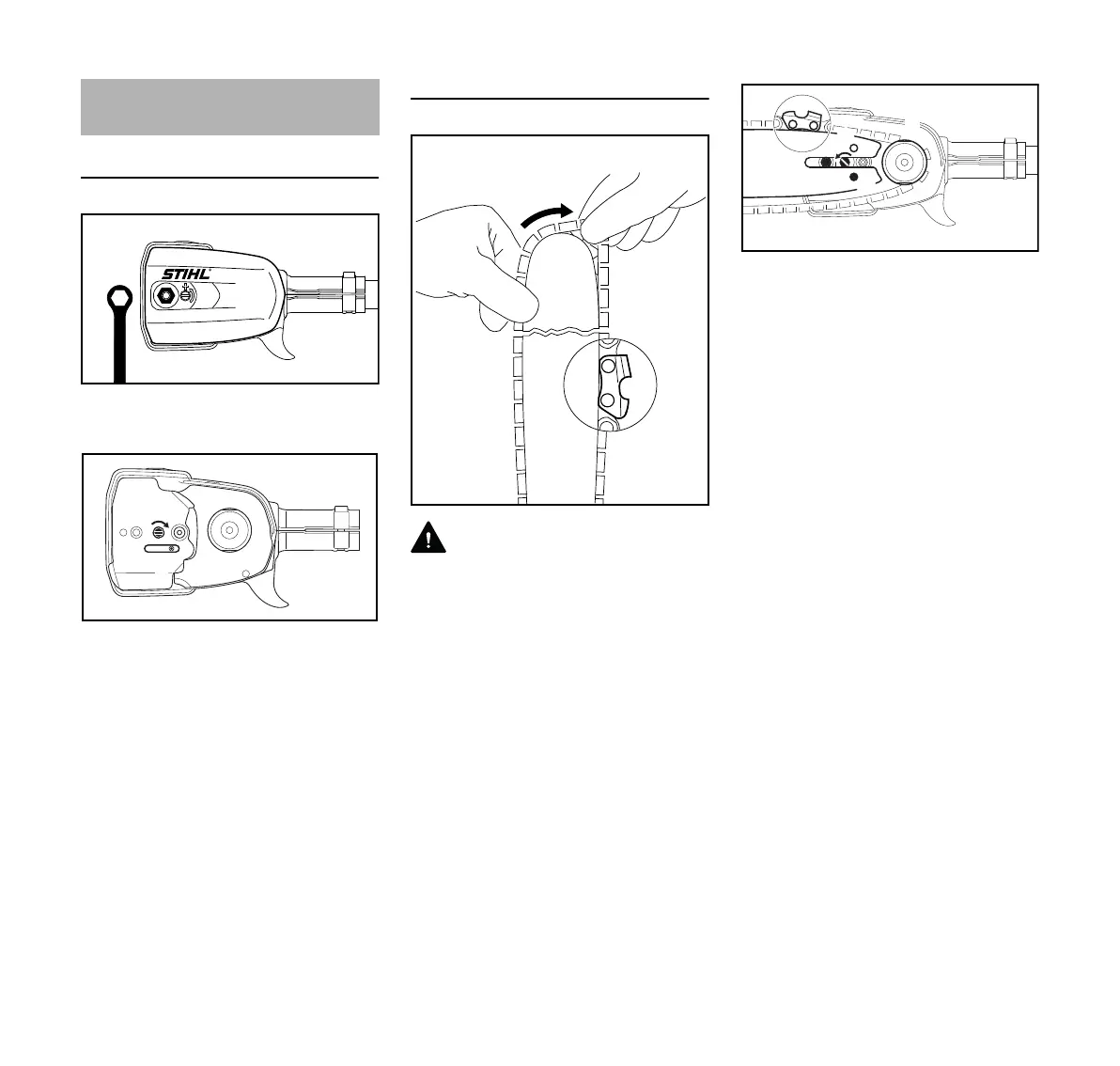

Removing the Chain Sprocket Cover
N Unscrew the nut and remove the
chain sprocket cover.
N Turn the screw (1) clockwise until
the tensioner slide (2) butts against
the right end of the housing slot.
Fitting the Chain
WARNING
Wear work gloves to protect your hands
from the sharp cutters.
N Fit the chain – start at the bar nose.
N Fit the guide bar over the screw (3)
and engage peg of tensioner slide in
the hole (4) – place the chain over
the sprocket (5) at the same time.
N Turn the tensioning screw (1)
counterclockwise until there is very
little chain sag on the underside of
the bar – and the drive link tangs are
engaged in the bar groove.
N Refit the sprocket cover and screw
on the nut fingertight.
N Go to chapter on "Tensioning the
Saw Chain".
Mounting the Bar and Chain
1
4
3
246BA023 A1
5
