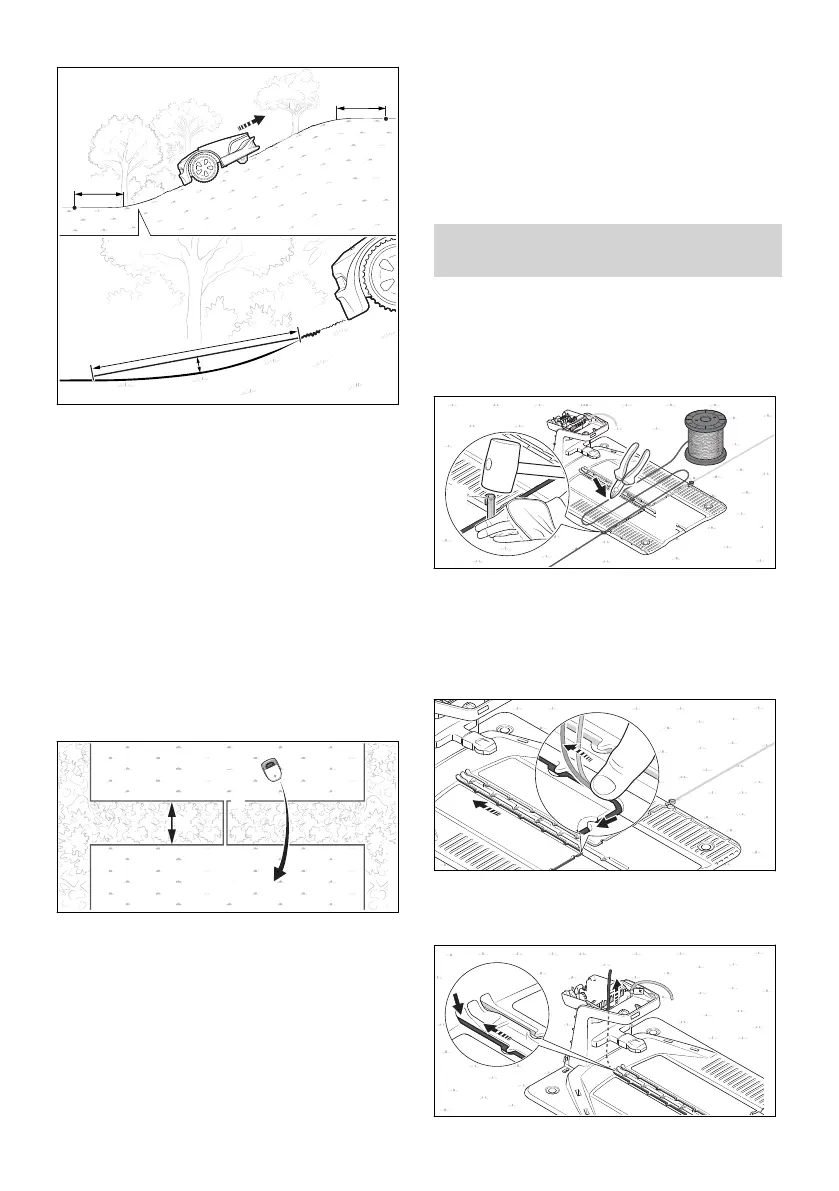

► If there is an incline/slope of more than 27%
within the mowing area: Install the perimeter
wire with a minimum distance a = 1.20 m
before and after the incline/slope.
► So that the robot mower can navigate the tran‐
sition between level ground and the incline/
slope, the radius of the transition must be such
that for b = 1 m the distance to the ground
c = 10 cm must not be exceeded.
8.13 Side Area
The robot mower cannot reach an adjacent area
by itself. The customer must place the robot
mower in the adjacent area.
A guide wire must not be installed in an adjacent
area.
► Route the perimeter wire (1) from the main
area (A) to the adjacent area (B).
Minimum distance to the perimeter wires
a = 74 cm
► Make sure that the length of the perimeter
wire (1) does not exceed 850 m.
► Route the perimeter wires (1) in parallel and
close to each other back to the mowing
area (A) without the perimeter wires crossing.
8.14 Small Mowing Area
The STIHL AKM 100 small area module must be
used for a small mowing area where less than
20 m of perimeter wire is required.
The STIHL AKM 100 stabilizes the wire signal
and is incorporated into the perimeter wire by
means of wire connectors.
9 Completing the Perimeter
Wire Installation
9.1 Completing the routing of the
perimeter wire
Docking station on the edge of the mowing area,
docking station on the edge of the lawn area
► Attach the perimeter wire (1) directly on the
base plate (2) with a fixing pin (3).
► Use the perimeter wire (1) to measure two
times the width of the base plate (2) and then
cut the perimeter wire (1) to length with a wire
cutter.
► Install the perimeter wire (1) in the base plate
so that the guide wire lies flat in the cable duct
and is secured by the hook (4).
9 Completing the Perimeter Wire Installation English
0458-011-0101-A 29
