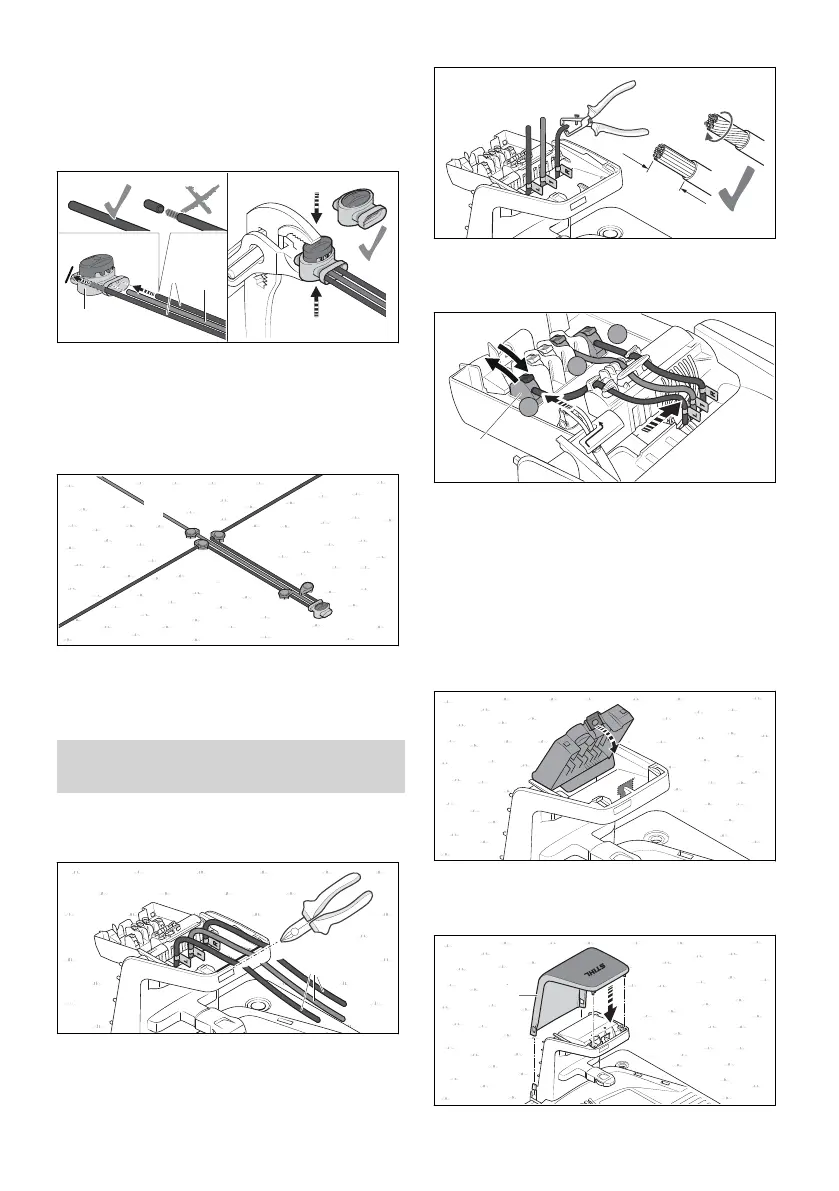

► Route the guide wire (1) through the center of
the wire loop (7).
► Using a wire cutter, cut through the guide
wire (1) at the end of the wire loop (7) and
make all wire ends the same length.
► Insert the ends of the perimeter wires (8) and
the guide wire (1) into the wire connector (9)
up to the limit stop.
Do not strip the wire ends.
► Press the wire connector (1) together up to the
limit stop with a pair of pliers.
► Route the perimeter wires (8) and guide
wire (1) in parallel and close to each other
without the wires touching.
► Secure the wires using additional fixing pins.
11 Electrically connecting the
docking station
11.1 Connecting perimeter wire and
guide wire
► Slightly tension the wire ends (1) and cut to
length along the edge (2) with a wire cutter.
► Strip a = 10 mm of the wire ends.
► Twist wire strands so that no individual strands
stick out.
► Assign the labeled wire ends to the respective
terminals.
► Fold the lever of the corresponding termi‐
nal (3) backward.
► Insert the insulated wire end into the corre‐
sponding terminal (3) and fold the lever for‐
ward again to close.
► Secure the perimeter wires and guide wire in
the cable holders as shown and press toward
the right.
► Fold the cover (4) toward the front.
The cover (4) engages with an audible and
noticeable click.
11 Electrically connecting the docking station English
0458-011-0101-A 33
