Stihl iMOW 6.0 User Manual

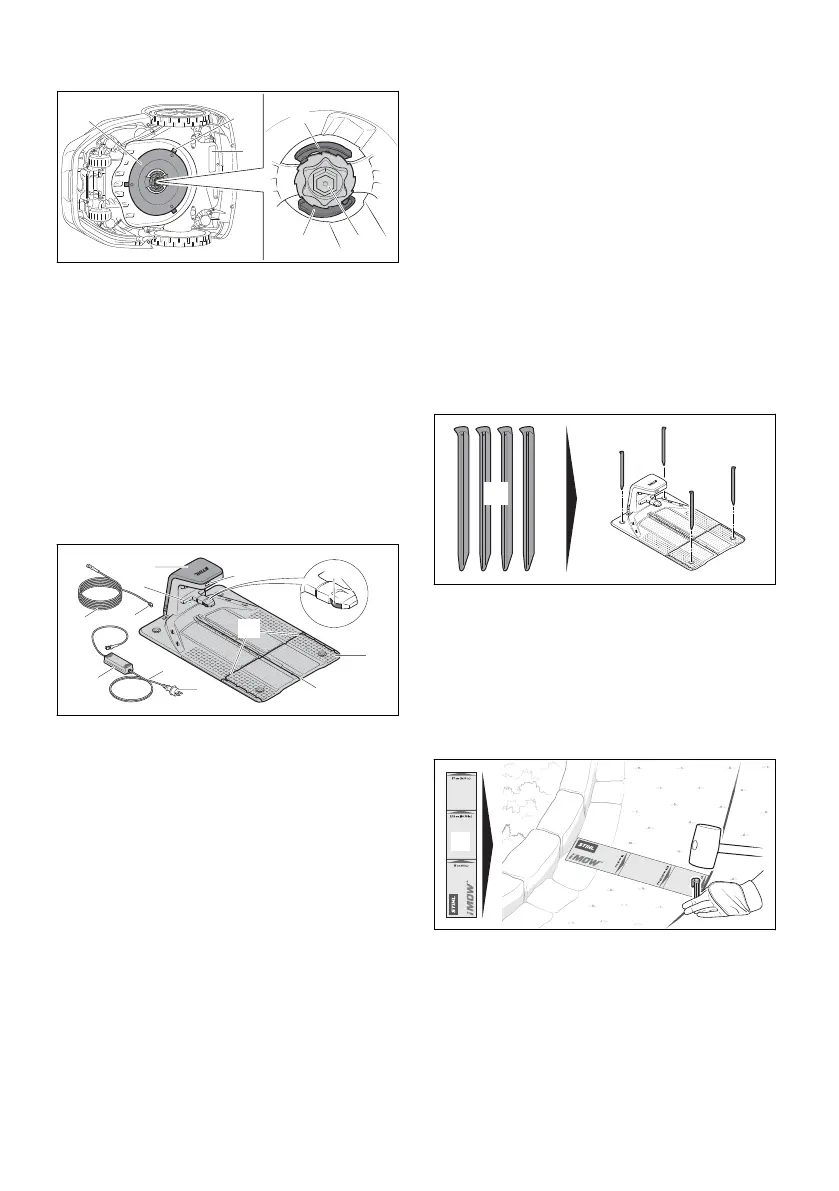

3.3 Mowing unit
1
2
3
3 4
#
0000099827_001
1 Blade disk
The blade disk serves to attach the blades.
2 Blades
The blades mow the lawn.
3 Levers
The levers secure the nut.
4 Nut
The nut secures the blade disk.
# Rating plate with the machine number
3.4 Docking station and power sup‐
ply
7
6
5
4
9
11
3
2
1
10
8
#
0000099356_001
1 Mains plug
The mains plug connects the connecting
cable to a socket.
2 Connecting cable
The connecting cable connects the power
supply to the mains plug.
3 Power supply
The power supply supplies the docking sta‐
tion with energy.
4 Charging cable
The charging cable connects the power sup‐
ply to the docking station.
5 Plug
The plug connects the charging cable to the
docking station.
6 Hood
The hood covers the docking station and pro‐
tects the internal electronics.
7 LED
The LED indicates the status of the docking
station.
8 Charging contacts
The charging contacts connect the docking
station with the robot mower.
9 Base plate
The base plate is the base for the docking
station.
10 Cable duct
The guide wire is routed in the middle cable
duct.
11 Cable duct
The perimeter wire is routed in the outer
cable ducts.
# Rating plate with the machine number
12
0000099831_001
12 Ground peg
The four ground pegs secure the docking sta‐
tion to the ground.
3.5
iMOW
®
Ruler and Installation
Kit
iMOW
®
Ruler
1
0000099832_001
1
iMOW
®
Ruler
The ruler makes it easier to install wires and
serves to maintain the correct distance.
Installation Kit
An installation kit is required to commission the
robot mower; it is not included in the scope of
delivery of the robot mower. Appropriate installa‐
English 3 Overview
4 0458-011-0101-A
