20
english / USA
KW 85
Dirty air filters reduce engine power
increase fuel consumption and make
starting more difficult.
If there is a noticeable loss of engine
power

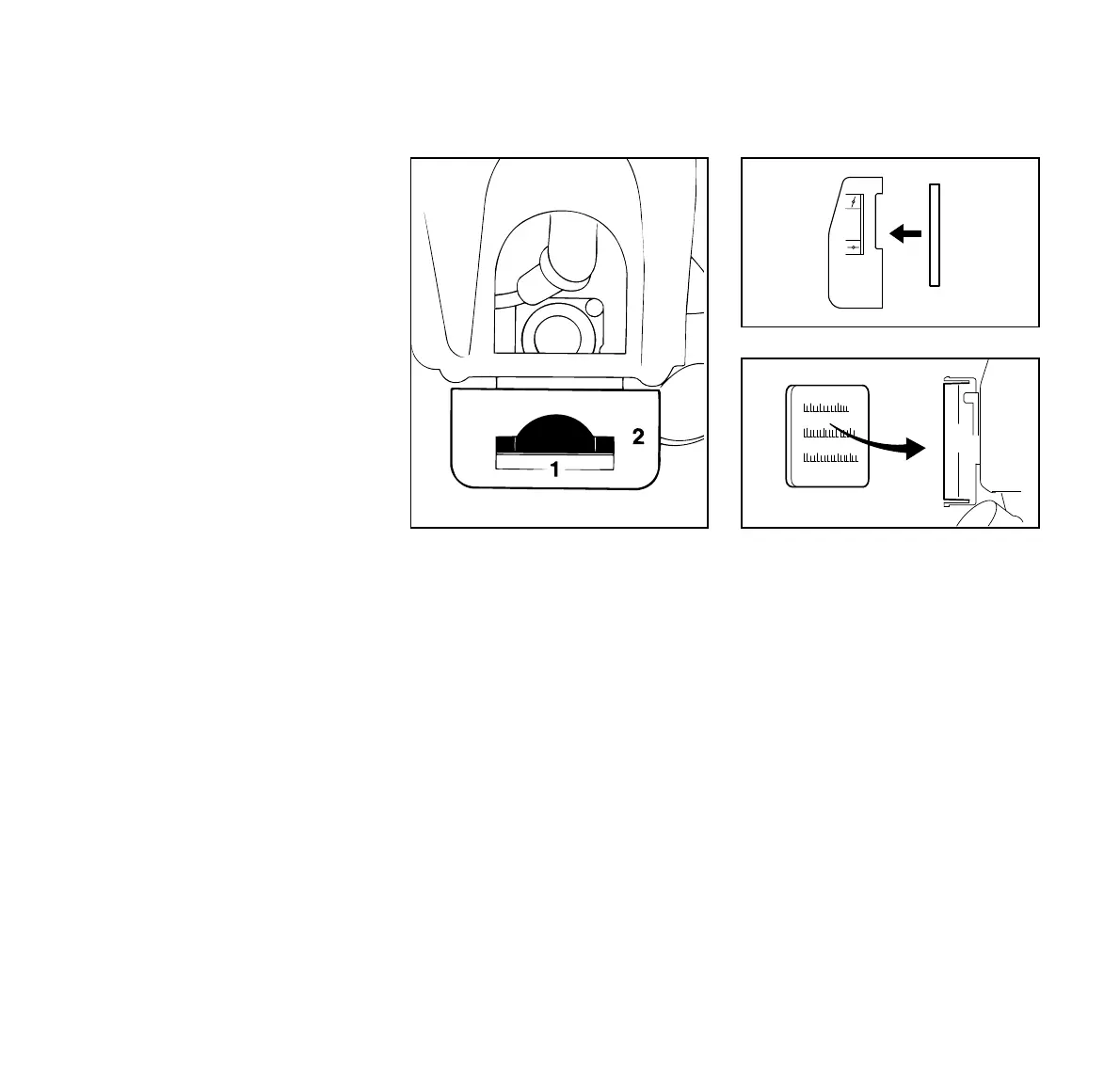

: Move choke lever to g
: Press in the tab (1).
: Ease the filter cover (2) over the tab
and take it away.
: Clean away loose dirt from around
the filter.
: Remove the foam and felt filter
elements.
: Wash the foam element in a clean,
non-flammable cleaning solution
(e.g. warm soapy water) and then
dry.
: Fit new felt element.
As a temporary measure you can
knock it out on the palm of your
hand or blow it out with compressed
air. Do not wash.
Replace damaged parts.
: Install the foam element (3) in the
filter cover (2).
: Place felt element (4) (lettering
facing inward) in filter housing (5).
: Fit filter cover so that it snaps into
position.
Cleaning the Air Filter
355BA014
2
3
355BA031 KN
4
5
355BA032 KN
