Stihl MS 181 Instruction Manual

MS 171, MS 171 C, MS 181, MS 181 C, MS 211, MS 211 C
English
48
1 Shroud slide
2 Carburetor adjusting screws
3 Manual fuel pump (Easy Start
1)
)
4 Slide (summer operation/ winter
operation, MS 211 only)
5 Chain brake
6 Chain sprocket
7 Chain sprocket cover
8 Chain catcher
9 Side chain tensioner
10 Bumper spike
11 Guide bar
12 Oilomatic saw chain
13 Adjusting wheel (quick tensioner)
14 Wings of the wing nut
1)
(quick
tensioner)
15 Oil filler cap
16 Muffler
17 Front hand guard
18 Front handle (handlebar)
19 Spark plug boot
20 Starter grip
21 Fuel tank twist lock
22 Master Control lever
23 Throttle trigger
24 Throttle trigger interlock
25 Rear handle
26 Rear hand guard
# Serial number

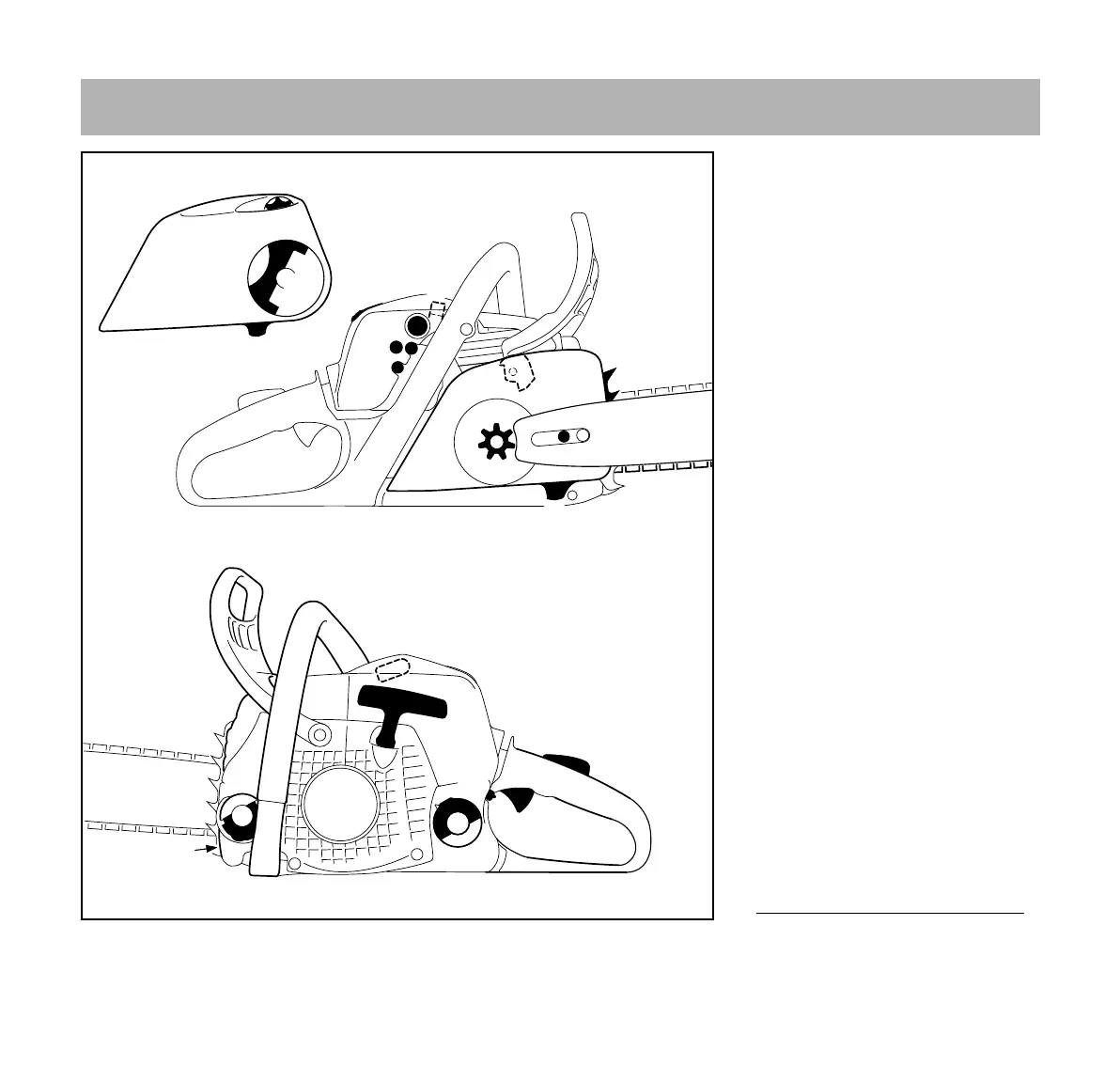

Main Parts
10
4
13
14
6
3
1
12
9
8
2
5
7
11
7
8
20
26
25
21
19
16
15
17
18
22
23
24
#
533BA015 KN
1)
According to version

Stihl MS 181 Specifications

General

Idle speed	- RPM
Motor type	2-stroke motor
Chain pitch	3/8 \
Blade length	400 mm
Product color	Black, Grey, Orange
Chain tensioner	Yes
Motor speed (max)	10000 RPM
Fuel tank capacity	0.266 L
Engine displacement	31.8 cm³
Power source	Gasoline
Sound power level	112 dB
Vibration emission	3.5 m/s²
Sound pressure level	100 dB

Weight and Dimensions

Weight	43004300 g
