46 MS 192 T

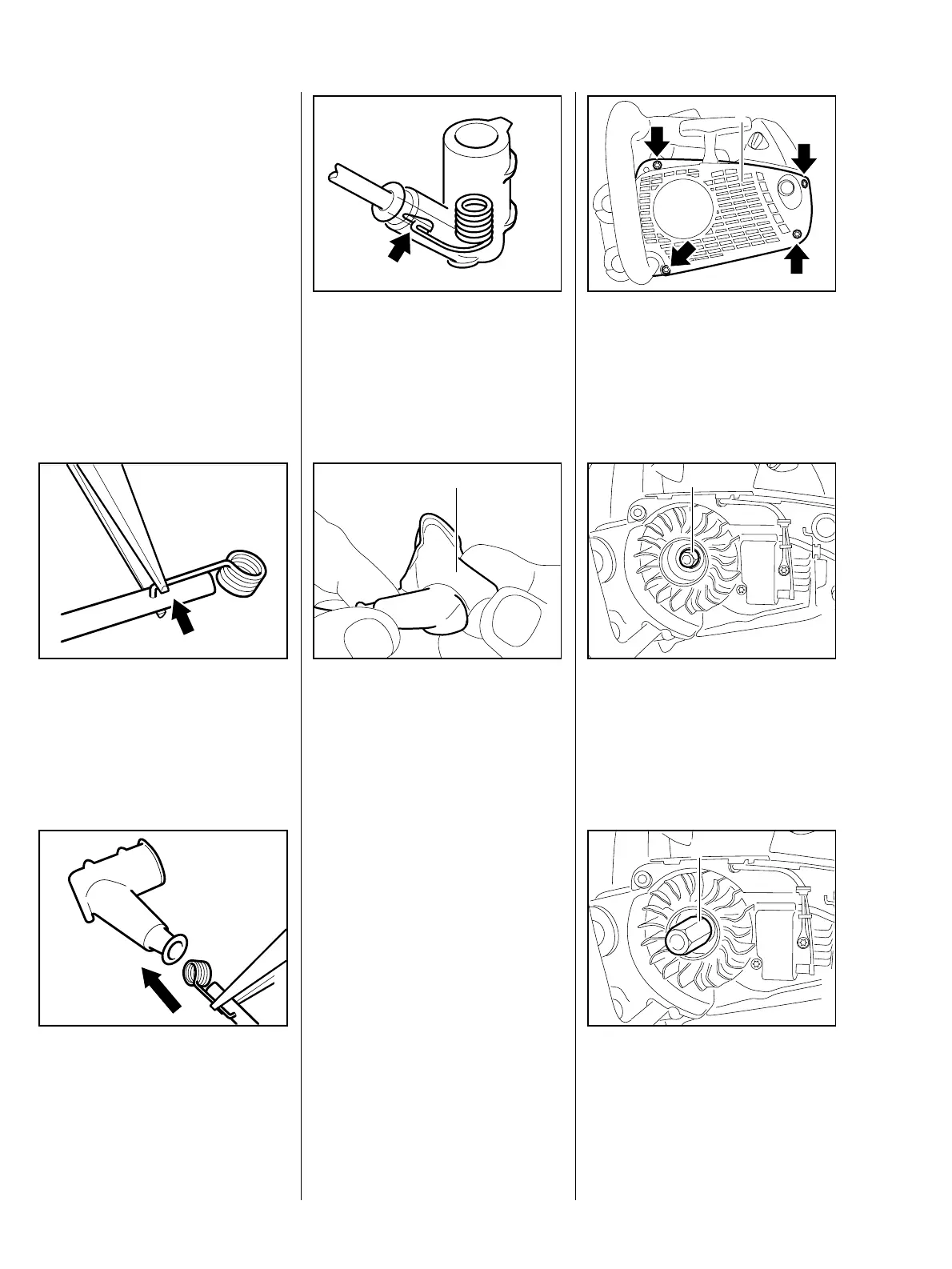

– Use a pointed tool to pierce the
centre of the new lead's
insulation about 15 mm from the
end of the ignition lead.
: Pinch the hook of the torsion
spring into the centre of the
ignition lead (arrow).
376RA136 TG
– Coat the inside of the spark plug
boot with STIHL Press Fluid,
b 16
: Push the ignition lead and torsion
spring into the spark plug boot.
376RA136 TG
: Ensure that the torsion spring
engages in the opening (arrow).
217RA327 TG
: Slide the cover (1) over the spark
plug boot.
Do not use either graphite grease or
silicone insulating paste.
– Install the ignition module, b 9.1
217RA095 TG
1
– Reassemble remaining parts in
reverse order.
Take out the screws (arrows) and
remove the fan housing (1) with
rewind starter.
– Block the piston with the locking
strip, b 6
217RA087 TG
1
: Remove the flywheel nut (arrow).
– Remove the flywheel.
Use the puller if the flywheel is
stuck.
1
217RA089 TG
Screw on the puller (1)
1116 893 0800, but do not screw it
tight, and then tap the end of the
puller lightly to release the flywheel.
1
217RA090 TG
9.5 Flywheel
