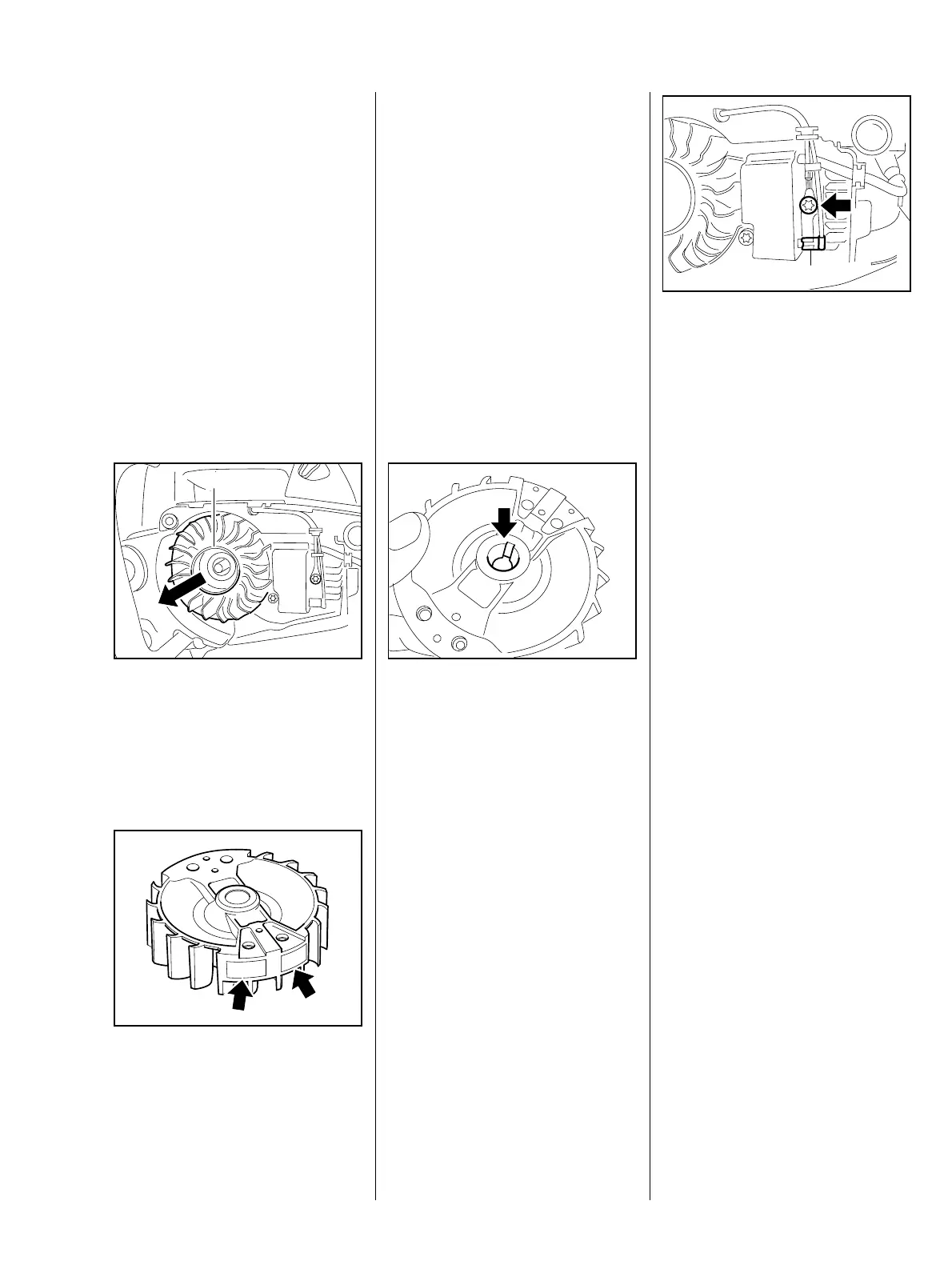

47MS 192 T
: Unscrew the puller (1)
1116 893 0800 from the
crankshaft stub.
: Remove the flywheel (1).
1
217RA091 TG
Flywheel and magnet poles
(arrows) must not show any signs of
damage or blue discoloration,
otherwise the flywheel must be
replaced.
217RA092 TG
Degrease the crankshaft stub and
bore in the flywheel hub with
standard solvent-based degreasant
not containing any chlorinated or
halogenated hydrocarbons.
– Reassemble parts in reverse
order.
: Ensure that the machined key
(arrow) engages the slot in the
crankshaft.
– Set the air gap between ignition
coil and flywheel, b 9.1.1
– Reassemble remaining parts in
217RA093 TG
reverse order.
– Tightening torques, b 3.5
Check the short circuit wire if the
spark plug and ignition lead with
spark plug boot are in order.
– Remove the fan cover, b 8.4.1
: Disconnect the short circuit
line (1).
1
217RA328 TG
– Connect the ohmmeter to ground
(arrow) and the short circuit
wire (1).
– Set the switch shaft to "0".
The resistance measured must be
about 0 W. If it is much higher, the
reason is a break in the wire and it
must be replaced, b 9.6
– Set the switch shaft to "
#".
The resistance measured must be
infinitely high, otherwise fit a new
short circuit wire, b 9.6
If no fault can be found, carry out
further checks:
– Check the flywheel, b 9.5
– Check the air gap between
flywheel and ignition module,
b 9.1.1
– If neither of these checks reveals
a fault, install a new ignition
module, b 9.1.1
– Reassemble parts in reverse
order.
9.6 Short Circuit Wire
9.6.1 Testing
