48 MS 192 T
– Remove fan housing,
b 10.2
– Remove the handle moulding
and actuating levers, b 12.1
– Remove the switch shaft, b 12.3

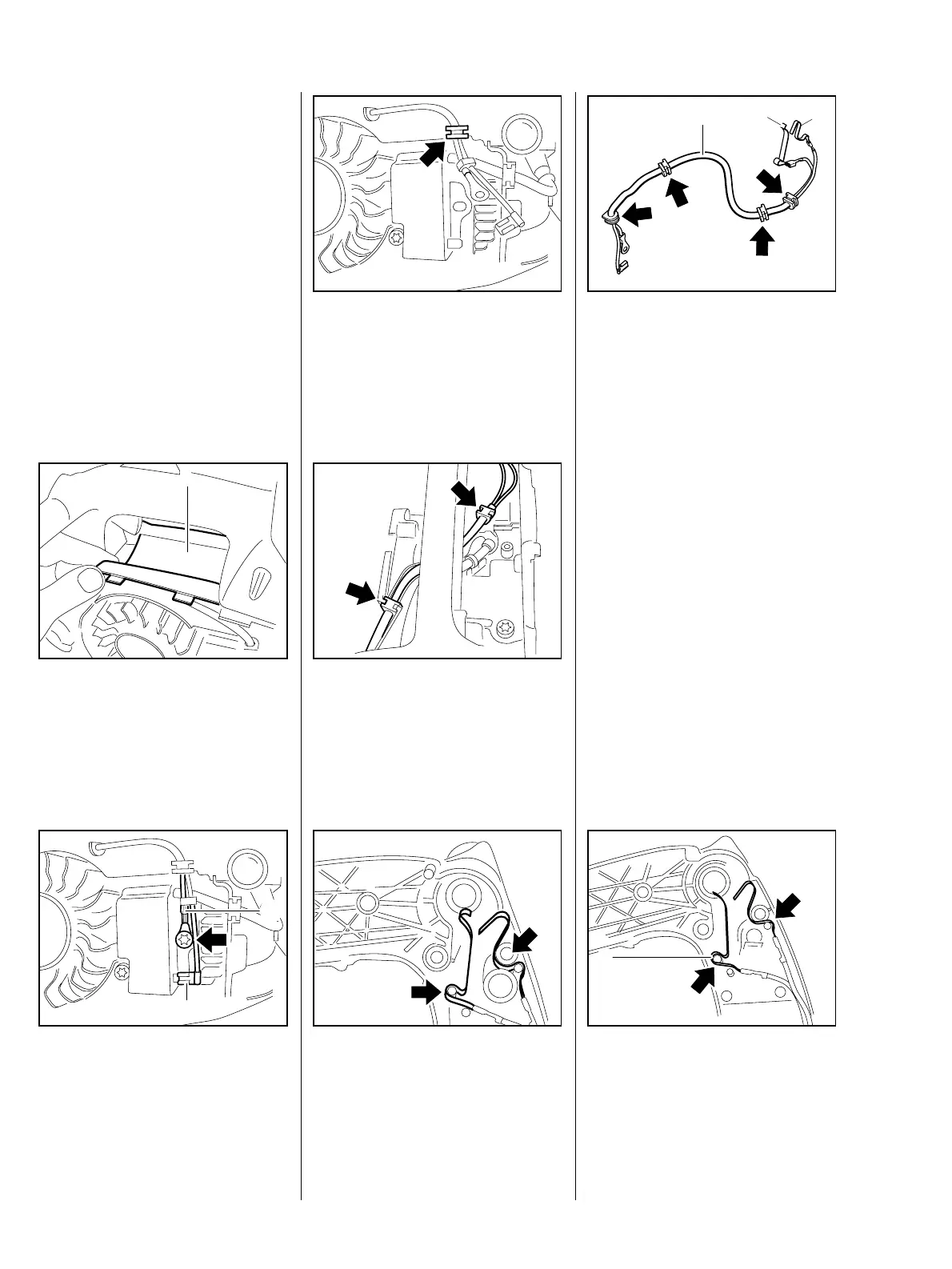

: Remove the cover (1).
217RA103 TG
1
: Take out the screw (arrow) and
remove the ground wire (2).
: Disconnect the short circuit
line (1).
217RA099 TG
1
2
: Remove the cable guide (arrow).
217RA101 TG
: Remove the cable guides
(arrows).
217RA320 TG
: Remove the contact springs
(arrows) from the handle
housing.
217RA318 TG
: Examine the wiring harness (1),
contact spring (2), contact spring
(3) and grommets (arrows) and
replace if necessary.
For safety reasons, contact spring
(3) may only be replaced together
with the wiring harness.
321
217RA329 TG
– Plug the contact spring (1) into
the terminal socket of the wiring
harness.
: Place the contact springs in the
guides (arrows).
217RA319 TG
1
9.6.2 Removing and installing
