Stihl MS 192 T Manual

31MS 192 T

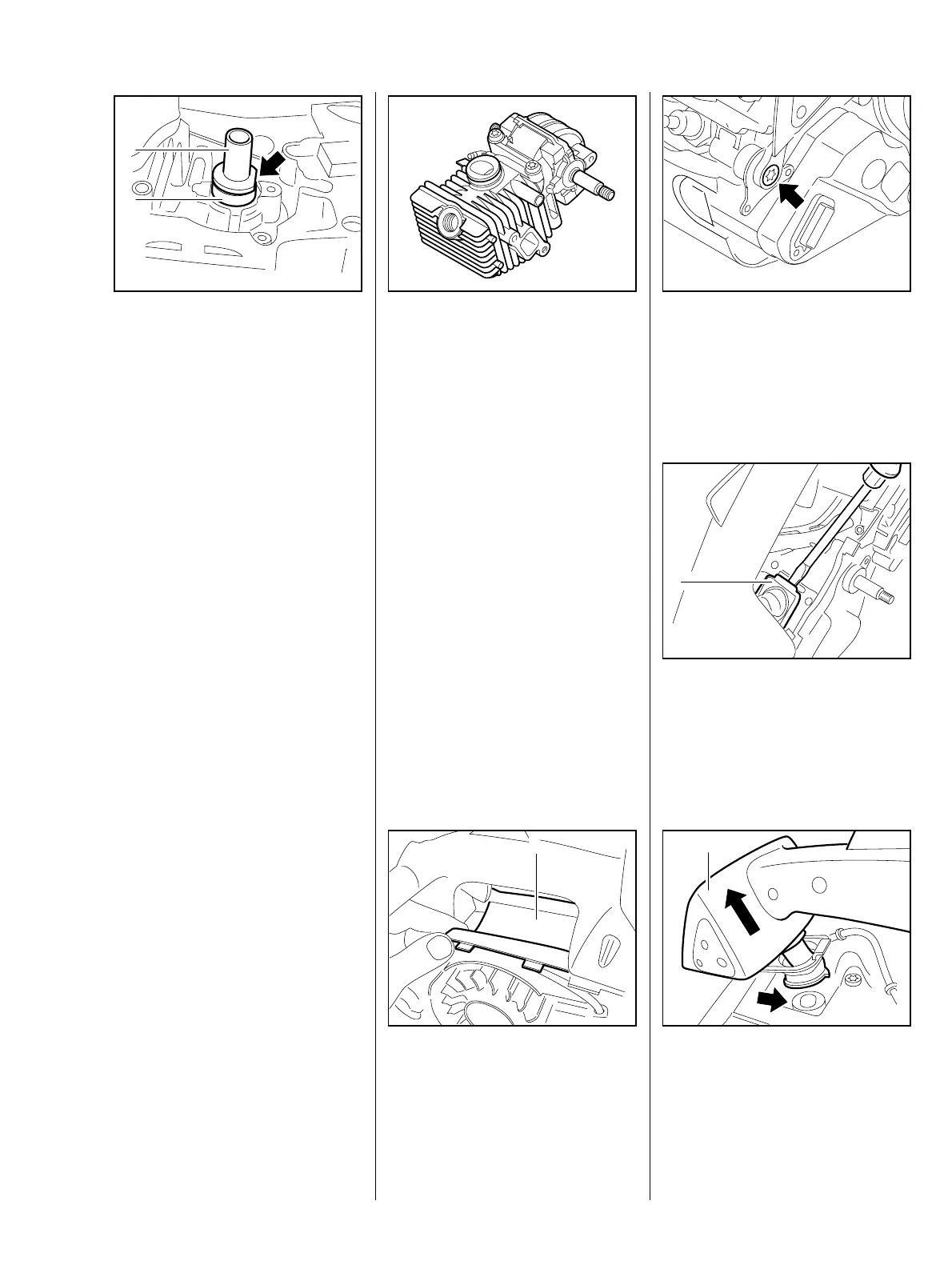

– Apply sealing compound to the
outside diameter of the oil seals,
b 16
So that the oil seal can be pressed
in as far as possible, the flat side of
the press sleeve (arrow) must be
aligned with the shoulder on the
1
2
217RA086 TG
crankcase.
: Press in the oil seal (2) with press
sleeve (1) 4112 893 2401.
– Turn the crankshaft through
several times after approx.
1minute.
– Reassemble remaining parts in
reverse order.
The complete engine must be
removed before disassembling the
piston or cylinder.
– Remove the sprocket cover and
bar and chain, b 5.1
– Remove the muffler, b 8.1
217RA088 TG
– Remove the clutch, b 6
– Remove the oil pump, b 13.3
– Remove fan housing,
b 10.2
– Remove the ignition module,
b 9.1
– Remove the flywheel, b 9.5
: Remove the cover (1).
217RA103 TG
1
: Remove the screw (arrow).
217RA108 TG
: Prise off the supporting plate (1)
with a suitable tool.
217RA107 TG
1
: Lift the handle housing (1) slightly
and pull the manifold off the
intake stub (arrow).
1
217RA109 TG
8.4 Engine
8.4.1 Removal
