54 MS 192 T

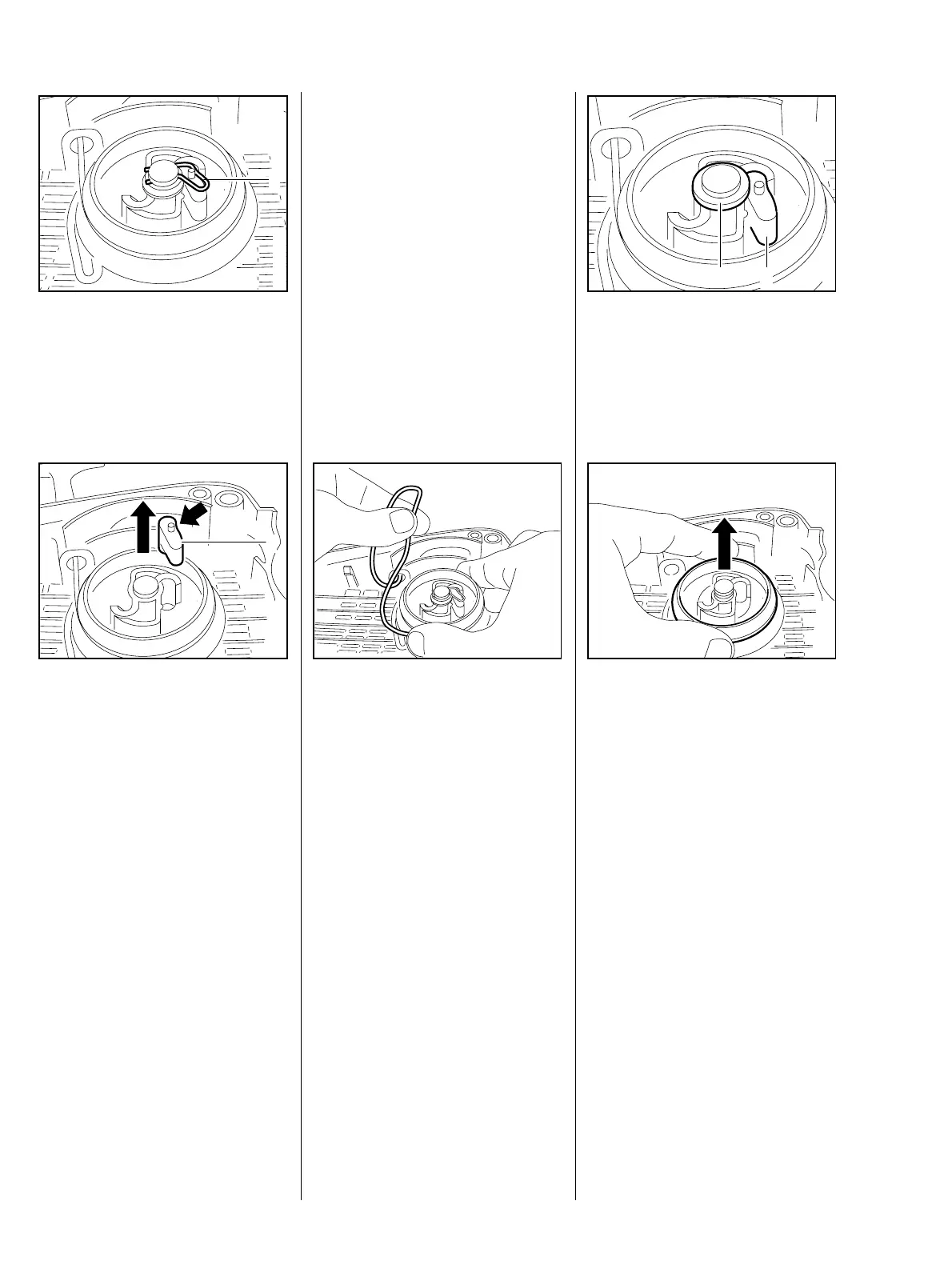

– Remove fan housing, b 10.2
: Carefully ease the spring (1) off
the starter post.
1
217RA283 TG
: Remove the pawl (1).
– Grease the pegs (arrow) of the
new pawl, b 16
– Reassemble parts in reverse
order.
1
217RA249 TG
– Remove fan housing, b 10.2
– Remove the spring, b 10.3
Relieve tension of rewind spring
: Pull out the starter rope about
5 cm and hold the rope rotor
steady.
– Still holding the rope rotor steady,
take three full turns off the rope
rotor.
217RA258 TG
– Pull out the rope with the starter
grip and carefully release the
rope rotor.
The system will not be under
tension if the starter rope or rewind
spring is broken.
: Remove the washer (1).
: Remove the pawl (2).
The rewind spring must be relieved.
1
217RA250 TG
2
: Carefully remove the rope rotor.
– Remove the starter rope or
remaining rope from the rope
rotor.
– Examine the rope rotor and
replace it if necessary,
217RA247 TG
– Remove any remaining rope from
the fan housing if necessary.
– Install a new starter rope,
b 10.5
Lubricate the hole in the rope rotor
with STIHL special lubricant oil,
b 16
10.3 Pawls 10.4 Rope Rotor
