55MS 192 T

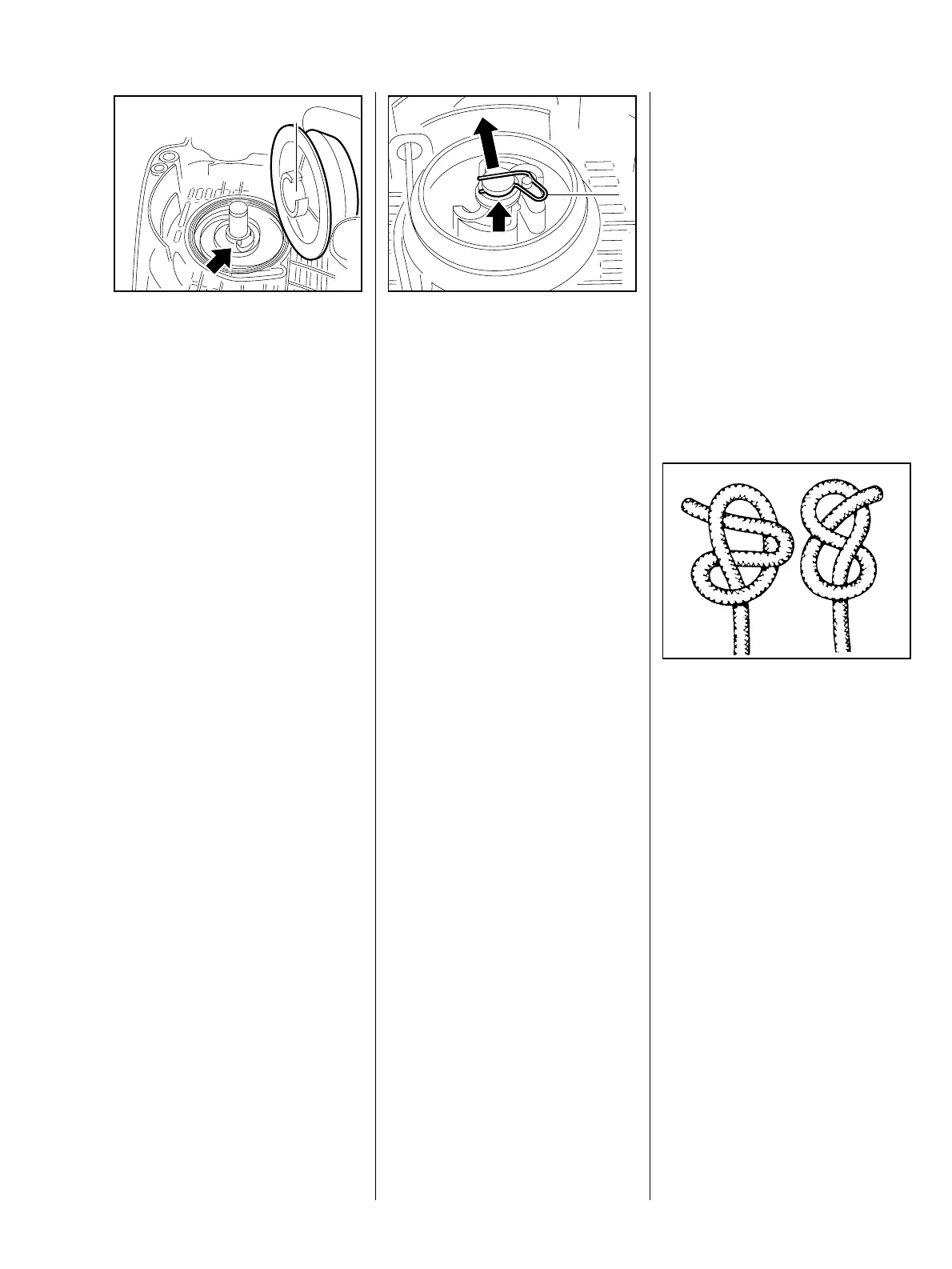

: Fit the rotor on the starter post so
that the inner loop of the spring
(arrow) enters the recess (1).
The recess in the hub of the rope
rotor acts as carrier for the spring
loop.
217RA248 TG
1
– Reassemble remaining parts in
reverse order.
: Position the spring (1) so that the
loop of the spring encloses the
peg of the pawl and the curved
part of the spring (arrow) is
located in the groove in the
starter post.
217RA251 TG
– Then slide the straight part of the
spring over the starter post until it
engages in the groove.
– Tension the rewind spring,
b 10.6
– Grease the pegs of the pawls,
b 16
– Remove the fan housing,
b 10.2
– Relieve the tension of the rewind
spring and remove the rope rotor,
b 10.4
The rewind spring will not be under
tension if the starter rope is broken.
– Remove any remaining scraps of
rope from the rope rotor and
starter grip.
: Tie one of the two special knots
shown above at the end of the
rope in the starter grip.
VA
982RA036
10.5 Starter Rope / Grip
