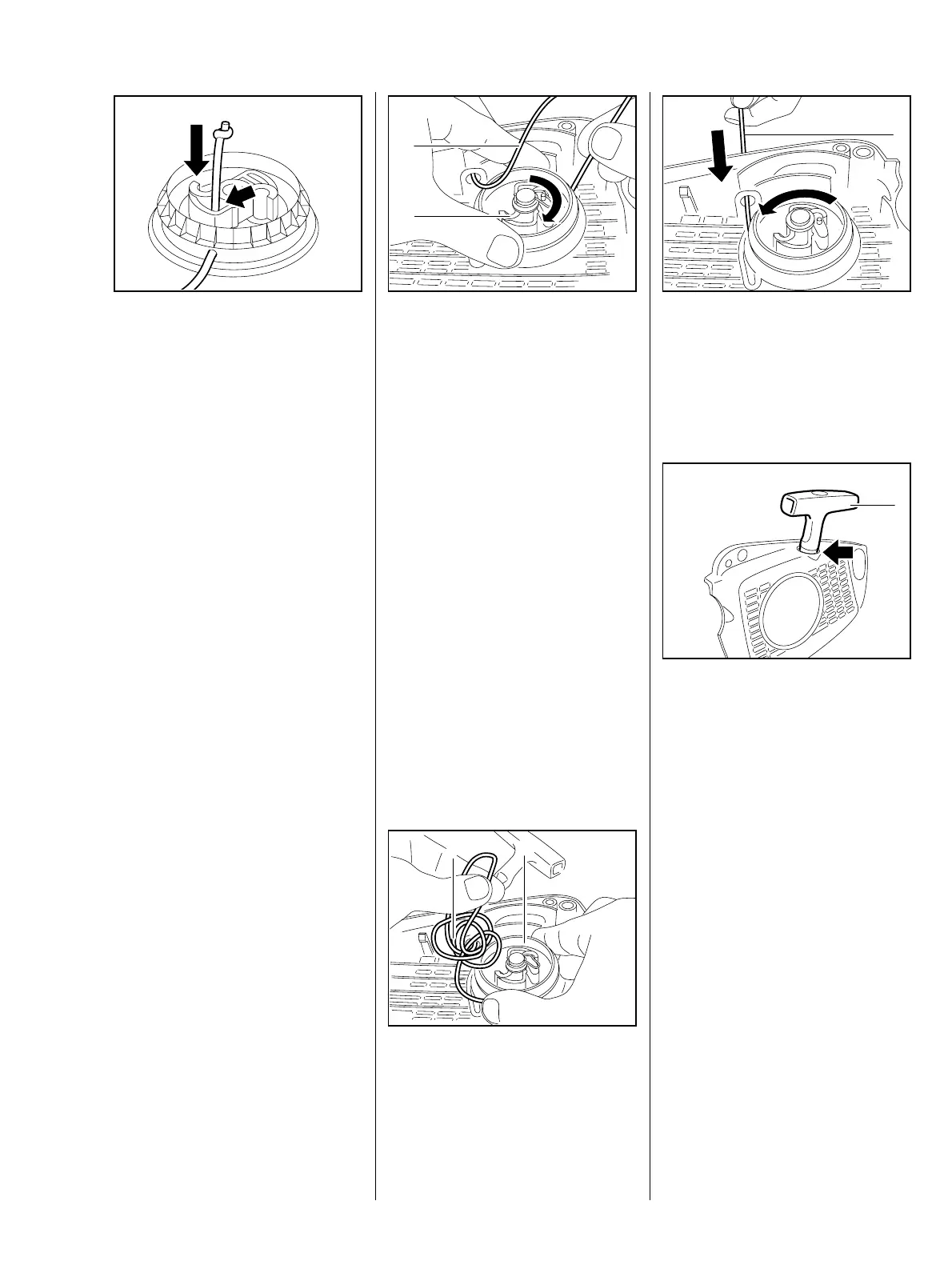

: Secure the rope (1) with a simple
overhand knot.
– Pull the rope into the rope rotor
until the knot rests in the recess
(arrow) in the rope rotor.
217RA254 TG
– Install the rope rotor and tension
the rewind spring, b 10.4
– Install the fan housing,
b 10.2
– Tightening torques, b 3.5
– Remove the fan housing,
b 10.2
: Pull out part of the rope (1)
between rope rotor (2) and fan
housing.
: Turn the rope rotor with rope six
1
2
217RA259 TG
times clockwise.
The rope twists as the rope rotor
and rope are turned. The rewind
spring is now tensioned.
Hold the tensioned rope rotor firmly,
as the rewind spring will be
damaged if it jumps back suddenly.
– Hold the rope rotor (2) steady.
: Pull out the rope (1) with the
starter grip and straighten it out.
217RA260 TG
21
– Hold the starter grip firmly to keep
the rope (1) tensioned.
: Let go of the rope rotor and let the
starter rope rewind slowly.
1
217RA261 TG
The rewind spring is correctly
tensioned when the starter grip sits
firmly in the rope guide bushing
(arrow) without drooping to one
side. If this is not the case, the
spring must be tensioned by one
additional turn.
217RA262 TG
1
When the starter rope is fully
extended, it must still be possible to
rotate the rope rotor at least another
half turn before the maximum spring
tension is reached, otherwise the
spring tension must be reduced – it
may break –
To reduce the spring tension:
Pull the rope out, hold the rope rotor
steady and take off one turn of the
rope.
– Install the fan housing,
b 10.2
– Tightening torques, b 3.5
10.6 Tensioning the Rewind
Spring
