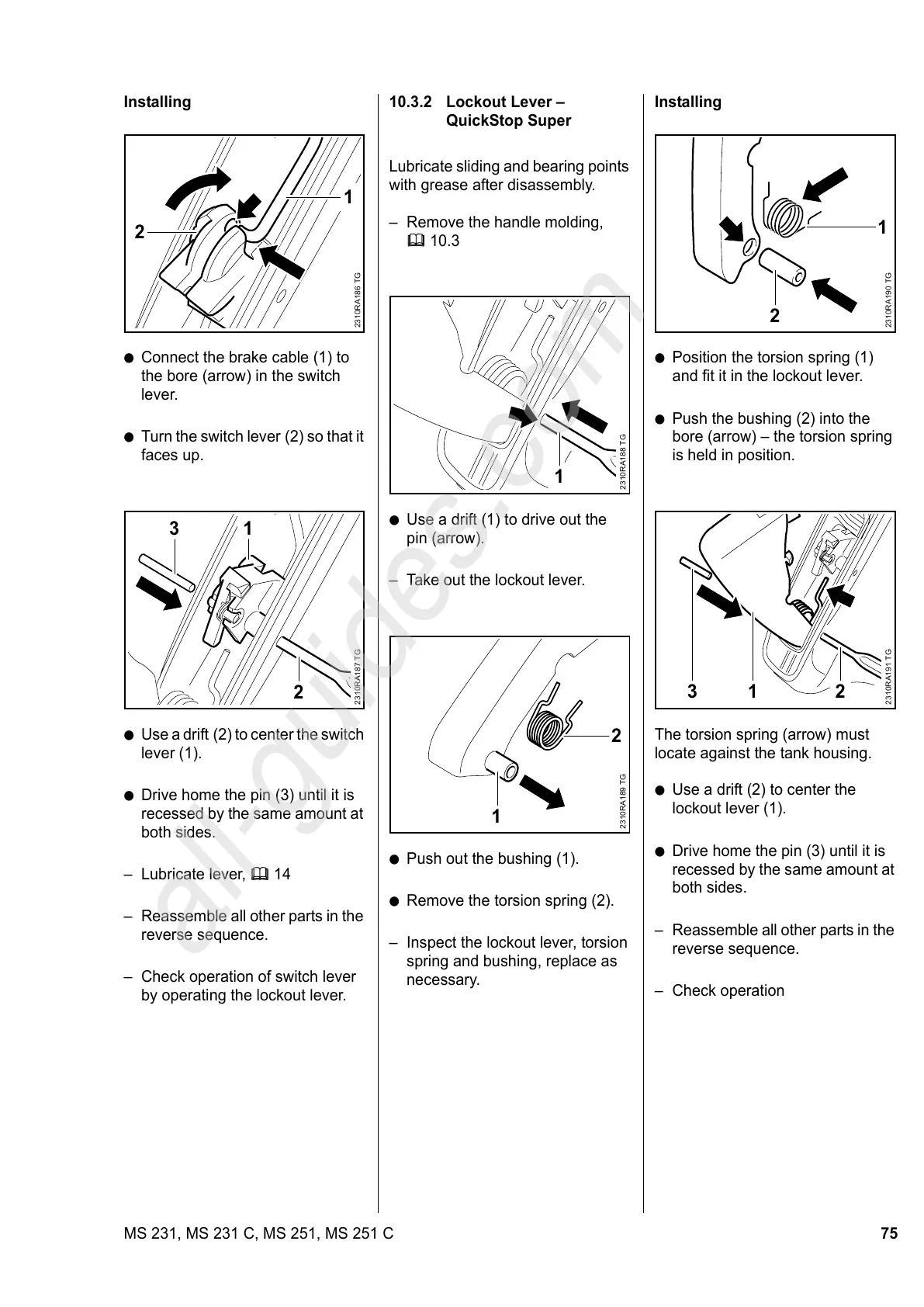

75MS 231, MS 231 C, MS 251, MS 251 C
Installing
: Connect the brake cable (1) to
the bore (arrow) in the switch
lever.
: Turn the switch lever (2) so that it
faces up.
: Use a drift (2) to center the switch
lever (1).
: Drive home the pin (3) until it is
recessed by the same amount at
both sides.
– Lubricate lever, b 14
– Reassemble all other parts in the
reverse sequence.
– Check operation of switch lever
by operating the lockout lever.
2310RA186 TG
1
2
2310RA187 TG
1
2
3
10.3.2 Lockout Lever –
QuickStop Super
Lubricate sliding and bearing points
with grease after disassembly.
– Remove the handle molding,
b 10.3
: Use a drift (1) to drive out the
pin (arrow).
– Take out the lockout lever.
: Push out the bushing (1).
: Remove the torsion spring (2).
– Inspect the lockout lever, torsion
spring and bushing, replace as
necessary.
2310RA188 TG
1
2310RA189 TG
1
2
Installing
: Position the torsion spring (1)
and fit it in the lockout lever.
: Push the bushing (2) into the
bore (arrow) – the torsion spring
is held in position.
The torsion spring (arrow) must
locate against the tank housing.
: Use a drift (2) to center the
lockout lever (1).
: Drive home the pin (3) until it is
recessed by the same amount at
both sides.
– Reassemble all other parts in the
reverse sequence.
– Check operation
2
2310RA190 TG
1
2310RA191 TG
23
1
