Stihl MSE 170 C User Manual

MSE 170 C, MSE 210 C
English
18

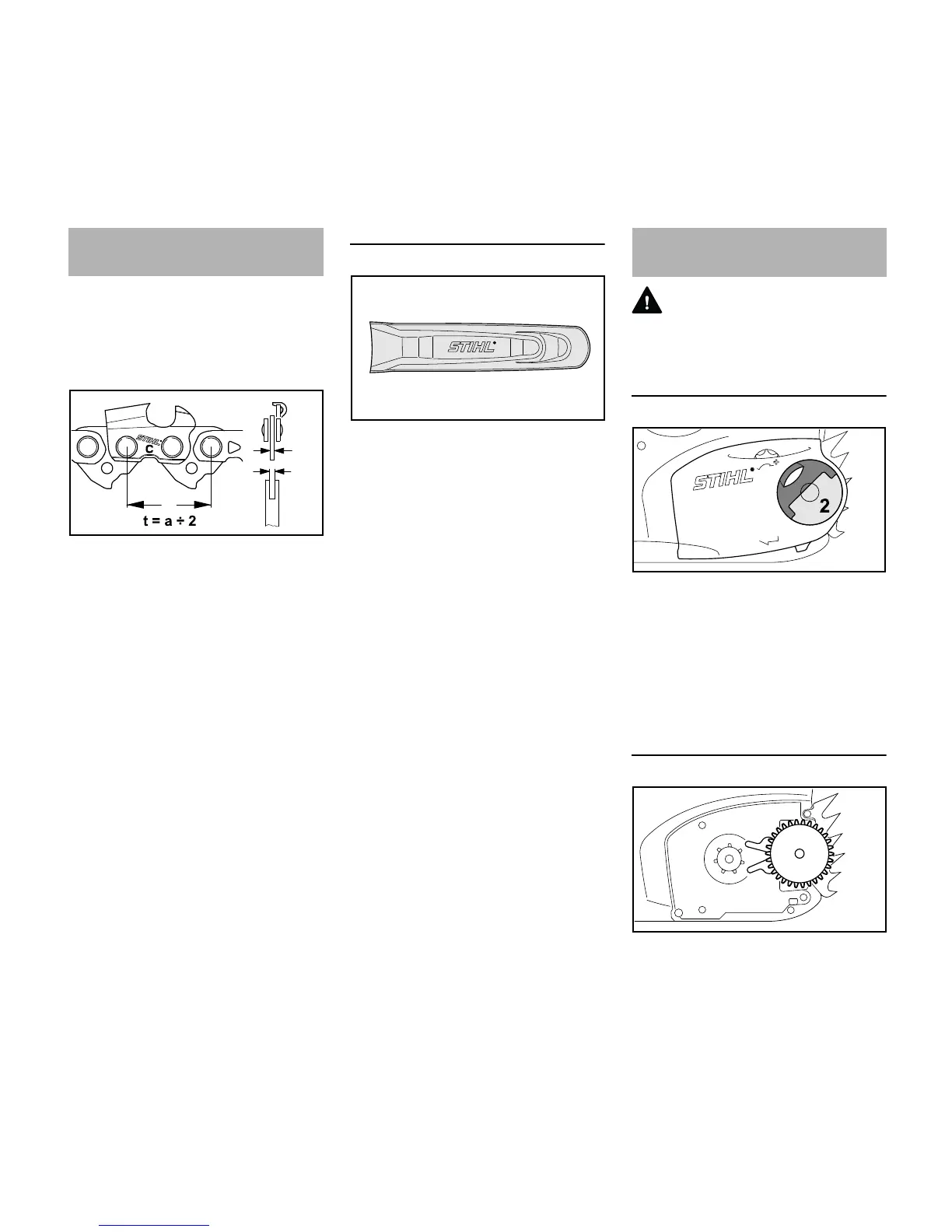

A cutting attachment consists of the saw
chain, guide bar and chain sprocket.
The cutting attachment that comes
standard is designed to exactly match
the chain saw.
– The pitch (t) of the saw chain (1),
chain sprocket and the nose
sprocket of the Rollomatic guide bar
must match.
– The drive link gauge (2) of the saw
chain (1) must match the groove
width of the guide bar (3).
If non-matching components are used,
the cutting attachment may be damaged
beyond repair after a short period of
operation.
Chain Scabbard
Your saw comes standard with a chain
scabbard that matches the cutting
attachment.
If guide bars of different lengths are
mounted to the saw, always use a chain
scabbard of the correct length which
covers the complete guide bar.
The length of the matching guide bars is
marked on the side of the chain
scabbard.
WARNING
Do not connect the power tool to the wall
outlet yet.
Removing the chain sprocket cover
N Pull the hinged handle (1) out until it
engages in the upright position.
N Turn the wingnut (2)
counterclockwise until it hangs
loose in the sprocket cover (3).
N Remove the chain sprocket
cover (3).
Fitting the tensioning gear
N Remove the tensioning gear (1) and
turn it over.
Cutting Attachment
001BA248 KN
1
2
3
a
001BA244 KN
Mounting the Bar and Chain
(quick chain tensioner)
3
9931BA019 KN
1
9931BA025 KN
1
