Stihl MSE 170 C User Manual

MSE 170 C, MSE 210 C
English
35
1 Reset Button for Overload Cutout
2 Chain Sprocket
3 Chain Sprocket Cover
4 Chain Catcher
5 Side Chain Tensioner (Depending
on Model)
6 Bumper Spike
7 Guide Bar
8 Oilomatic Saw Chain
9 Adjusting Wheel for Quick Chain
Tensioner (Depending on Model)
10 Handle of Wingnut for Quick Chain
Tensioner (Depending on Model)
11 Front Hand Guard
12 Front Handle (Handlebar)
13 Oil Filler Cap
14 Oil Sight Glass
15 Trigger Switch Lockout
16 Trigger Switch
17 Rear Handle
18 Rear Hand Guard
19 Chain Sprocket Cover with Quick
Chain Tensioner (Depending on
Model)
# Serial Number

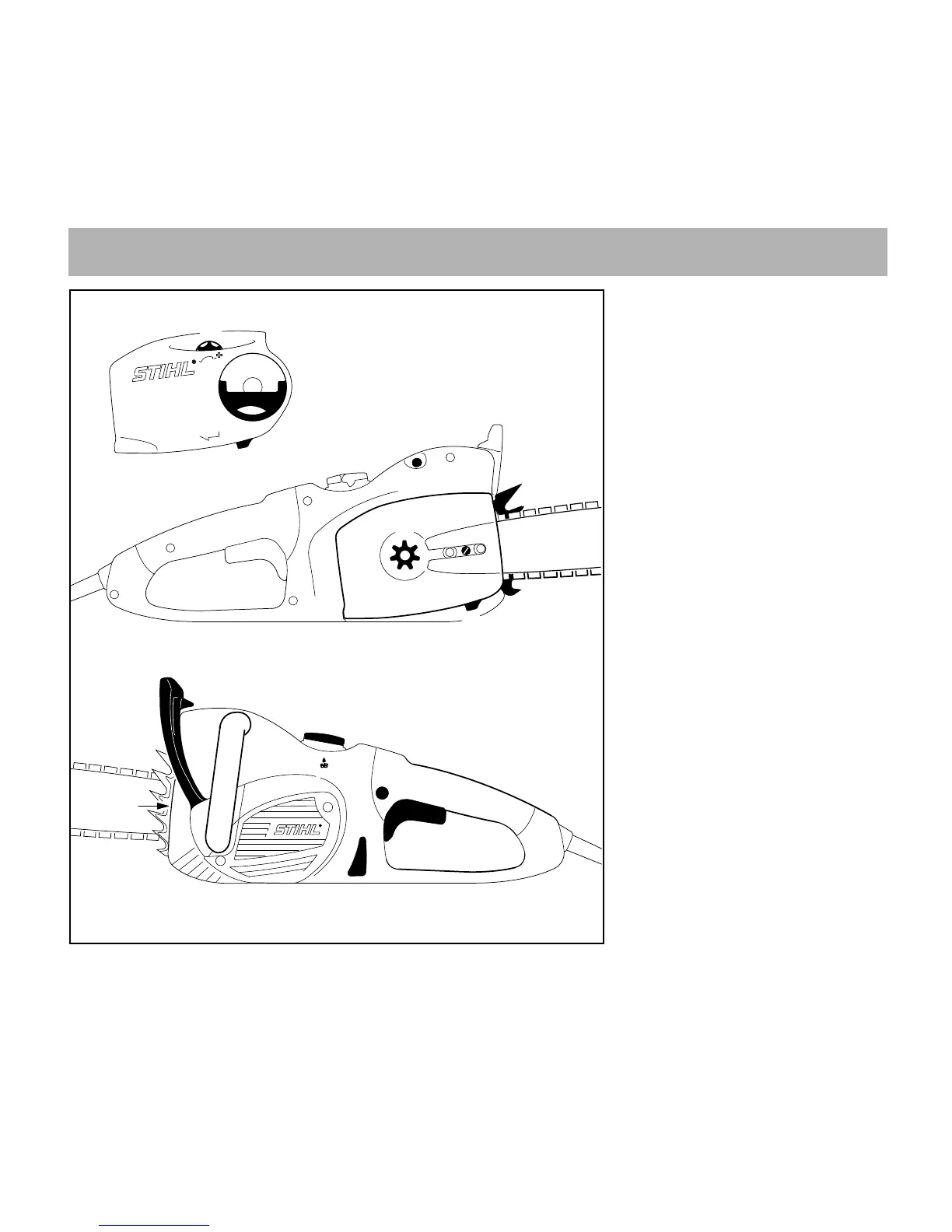

Main Parts
16
14
13
1
4
9
12
17
4
10
8
5
9931BA049 KN
15
19
2
7
6
3
18
11
#
