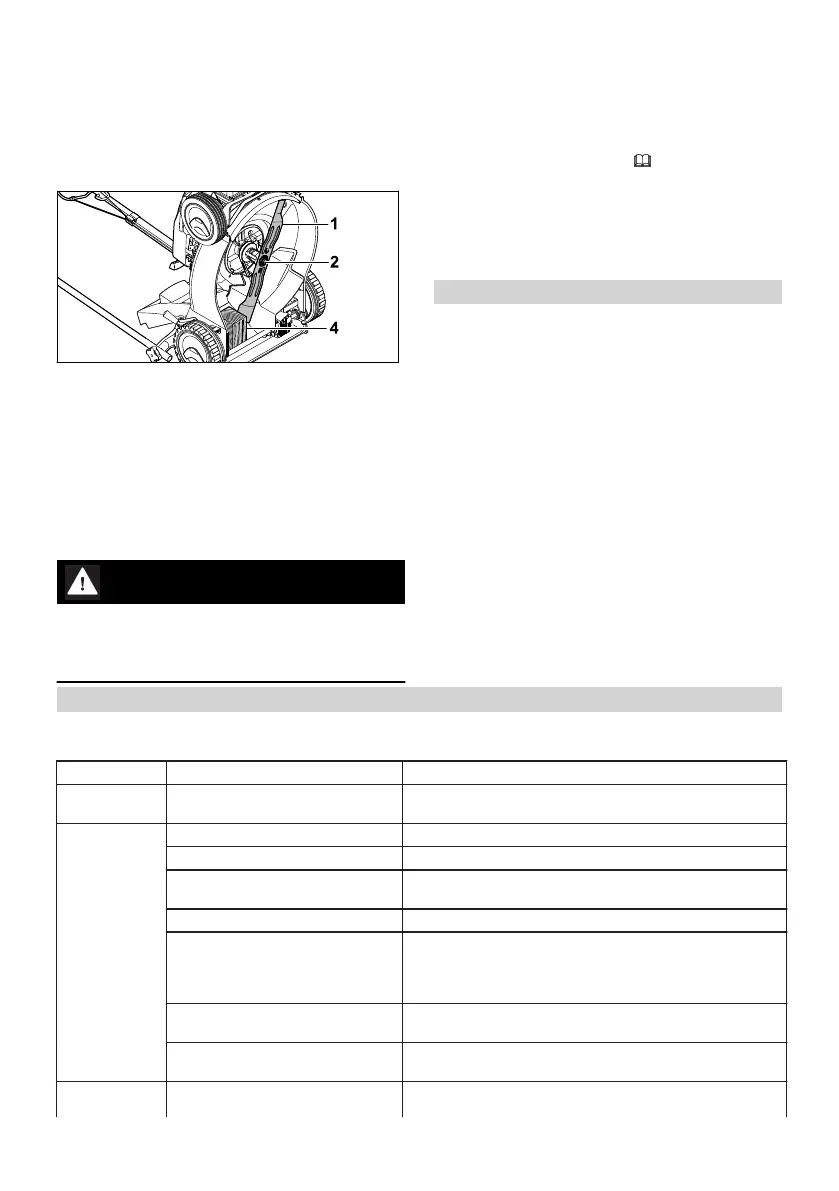

► Apply Loctite 243 thread locker to the thread
of bolt (2).
► Position blade (1) so the raised areas on the
contact area engage in the notches in
blade (1).
► Screw in bolt (2) together with washer (3).
► Block blade (1) using a piece of wood (4).
► Tighten bolt (2) to 65 Nm.
16.3 Sharpening and Balancing the
Blade
Sharpening and balancing the blade correctly
requires a lot of practice.
STIHL recommends having the blade sharpened
and balanced by a STIHL specialist dealer.
WARNING
■ The cutting edges of the blade are sharp. This
may result in the user cutting themselves.
► Wear protective gloves made from resistant
material.
► Stop the engine.
► Detach the spark plug socket.
► Upend the lawn mower.
► Remove the blade.
► Sharpen the blade. Observe the sharpening
angle and cool the blade, 19.2.
Bluing of the blade during sharpening is not
permitted.
► Attach the blade.
► If anything is unclear: consult a STIHL special‐
ist dealer.
17 Repairing
17.1 Repairing the Lawn Mower
The user should not repair the lawn mower or
blade themselves.
► If the lawn mower or blade is damaged: do not
use the lawn mower or blade and consult a
STIHL specialist dealer.
► If warning signs are illegible or damaged: have
the warning signs replaced by a STIHL spe‐
cialist dealer.
18 Troubleshooting
18.1 Remedying Lawn Mower Faults
Fault Cause Remedy
Engine cannot
be started.
Control bar for mowing is not
pressed.
► Start engine as described in this instruction
manual.
Fuel tank is empty. ► Refuel lawn mower.
Fuel line is blocked. ► Consult a STIHL specialist dealer.
Inferior, dirty or old fuel in the
tank.
► Use fresh, good-quality unleaded petrol.
Air filter is dirty. ► Consult a STIHL specialist dealer.
Spark plug socket is detached
from spark plug or ignition lead
is not properly fastened to
socket.
► Connect spark plug socket.
► Check connection between ignition lead and plug.
Spark plug is dirty, damaged or
electrode gap is incorrect.
► Clean or replace spark plug.
► Adjust electrode gap.
Resistance at the blade is too
great.
► Set a higher cutting height.
► Start engine in lower grass.
Engine diffi‐
cult to start or
Lawn mower housing is
blocked.
Clean lawn mower.
