0478-131-9950-A
51
English
12 Operating the Lawn Mower
– 85 mm = position 4

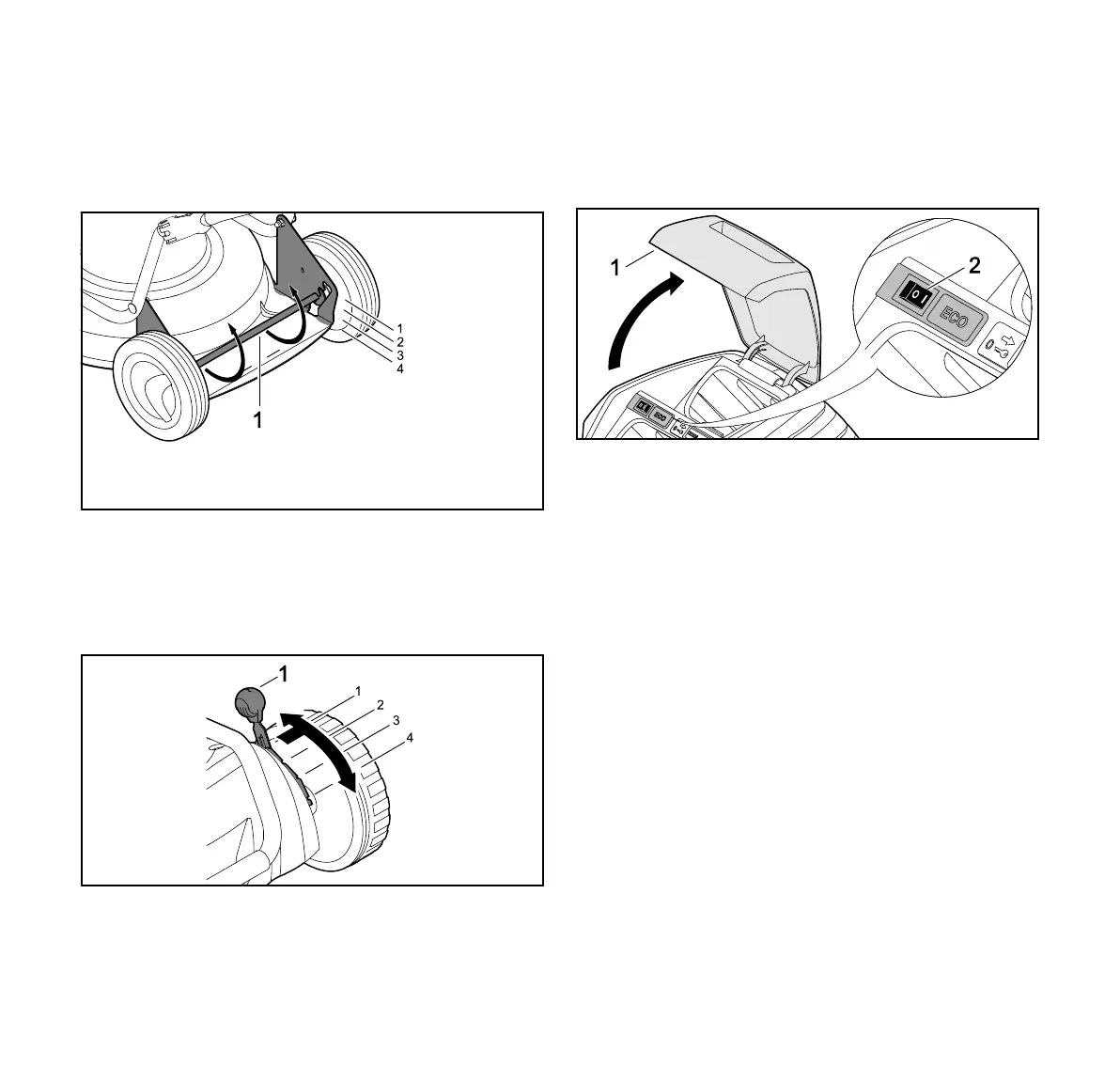

The cutting height is set separately at the front and rear. The
cutting height setting must be identical at the front and rear.
Setting the rear cutting height
► Press rear axle (1) downwards.
Rear axle (1) is released and can be adjusted.
► Move rear axle (1) into the desired position on the left and
right.
Setting the front cutting height
► Press lever (1) outwards, move to the desired position and
allow it to engage.
12.3 Activating ECO Mode
When ECO mode is activated, the lawn mower detects the
current working conditions and adjusts the blade speed
automatically.
This may extend the battery life.
► Open flap (1) as far as the stop and hold.
► Set ECO switch (2) to the I position.
► Close flap (1).
12.4 Mulching
During mulching, the cut grass is chopped up several times
through a special air flow guidance system in the mower
blade area and then blown back into the turf. The clippings
remain on the lawn surface where they partially decompose
and serve as a natural fertiliser. To ensure a perfect, thick
lawn, mulch regularly, removing 1/3 of the grass height.
Requirements for good mulching results:
– Frequency: at least twice a week in the spring (main
period of growth) and once a week in the summer and
autumn.
– Cutting height: cut around a third of the grass height.
– Mow the lawn when dry if possible.
– Use well sharpened cutting blades.
– Select a low rate of feed.
– Vary the mowing direction and ensure that the mowing
strips overlap.
