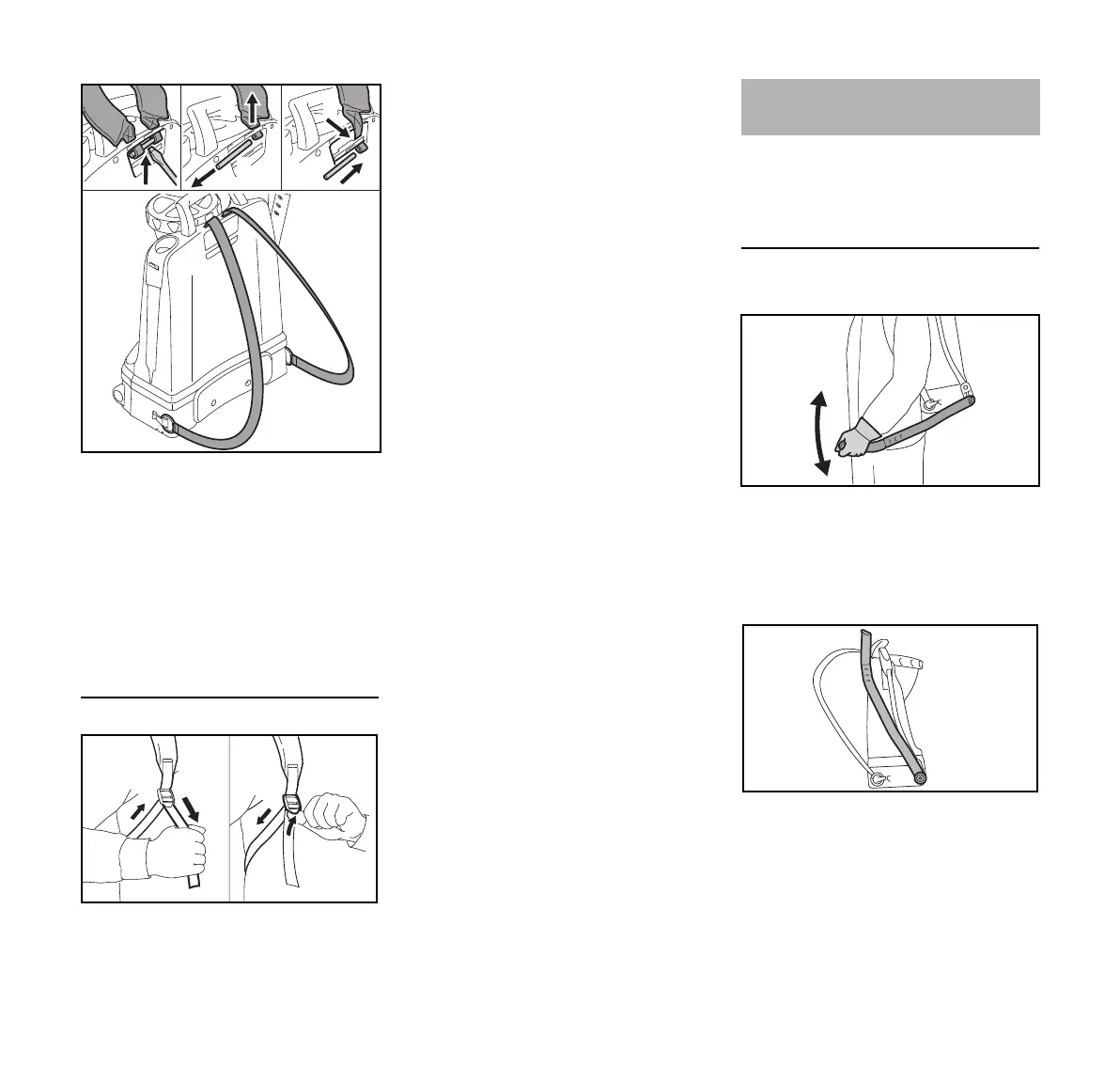

N Use a screwdriver to pry the pin (1)
out of the backplate.
N Remove the pin (1) and pull out the
ends of the harness straps (2).
N Fit the ends of the harness
straps (2) in the lower position.
N Insert pin (1) and engage it in the
backplate.
Adjusting the Harness Straps
A Pull the ends of the straps
downward to tighten the harness.
B Lift the tabs of the adjusters to
loosen the straps.
Make yourself familiar with how the
controls function before using your
sprayer for the first time.
Lever
Pressurizing the tank
N Operate the pump lever slowly and
steadily with the gun closed –
several strokes are required to build
up pressure.
Transport position
N Move the pump lever to upright
position until it engages.
8014BA008 AS
1
1
2
2
8014BA045 ST
A
B
Controls
8014BA014 AS
8014BA023 AS

Stihl SG 51 Specifications

General

Volume	12 L
Material	-
Product color	Black, Orange, White
Quantity per pack	1 pc(s)

Weight and Dimensions

Weight	4500 g
