12-6 Specifications

Fuses and circuits

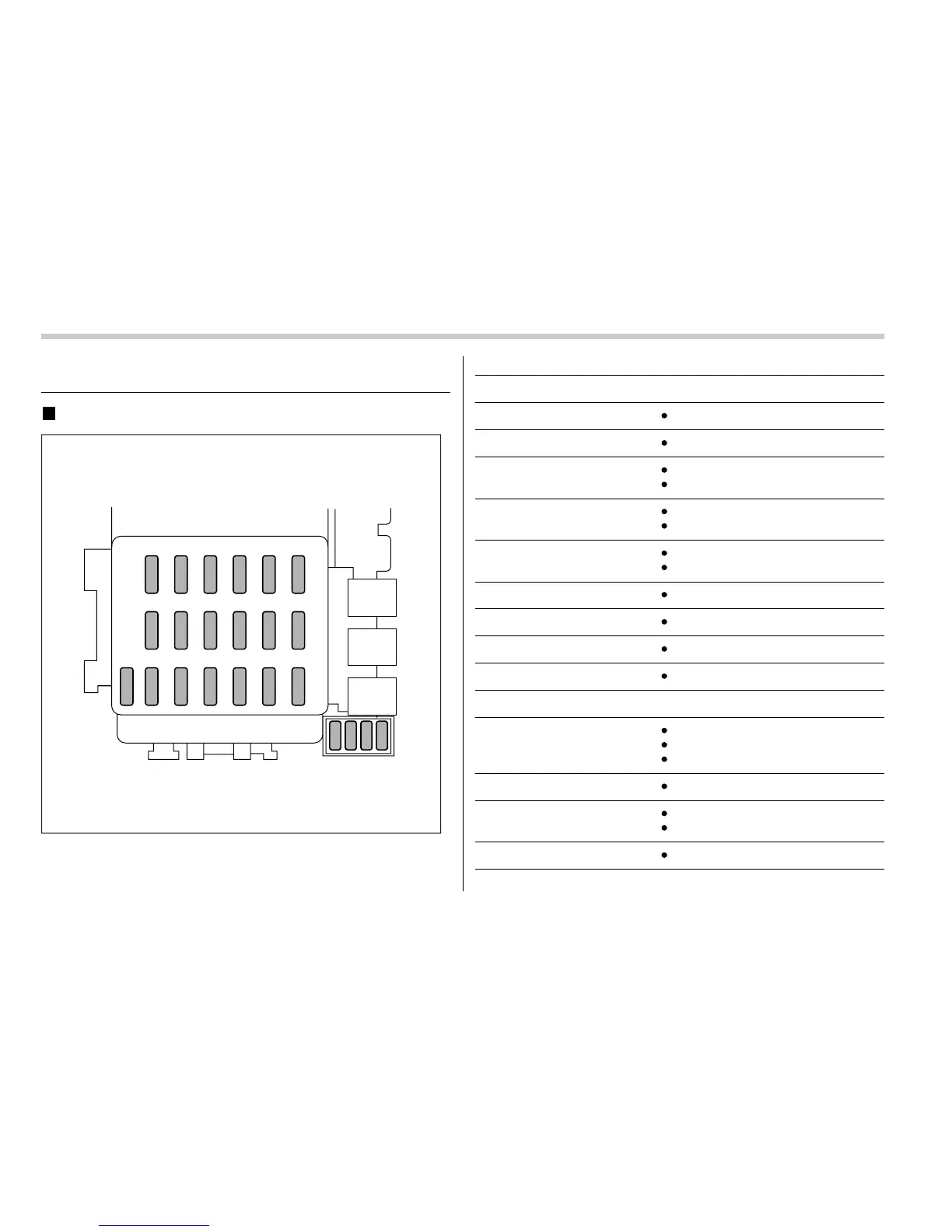

Fuse panel located behind the coin tray

1 2 3 4 5 6

7 8 9 10 11 12

1413 15 16 17 18 19

20 21 22 23

C00000

Fuse panel Fuse rating Circuit

1 15A Heater fan

2 15A Heater fan

3 15A Power door lock

Remote keyless entry

4 20A Cigarette lighter

Remote controlled rear view mirrors

5 10A Tail light

Parking light

6 15A SRS airbag

7 15A Fog light

8 20A ABS solenoid

9 15A Radio

10 Empty

11 15A Engine ignition system

SRS airbag

AT control system

12 10A Illumination brightness control

13 10A Combination meter

SRS lamp

14 10A Rear window wiper and washer
