1-38 Seat, seatbelt and SRS airbags

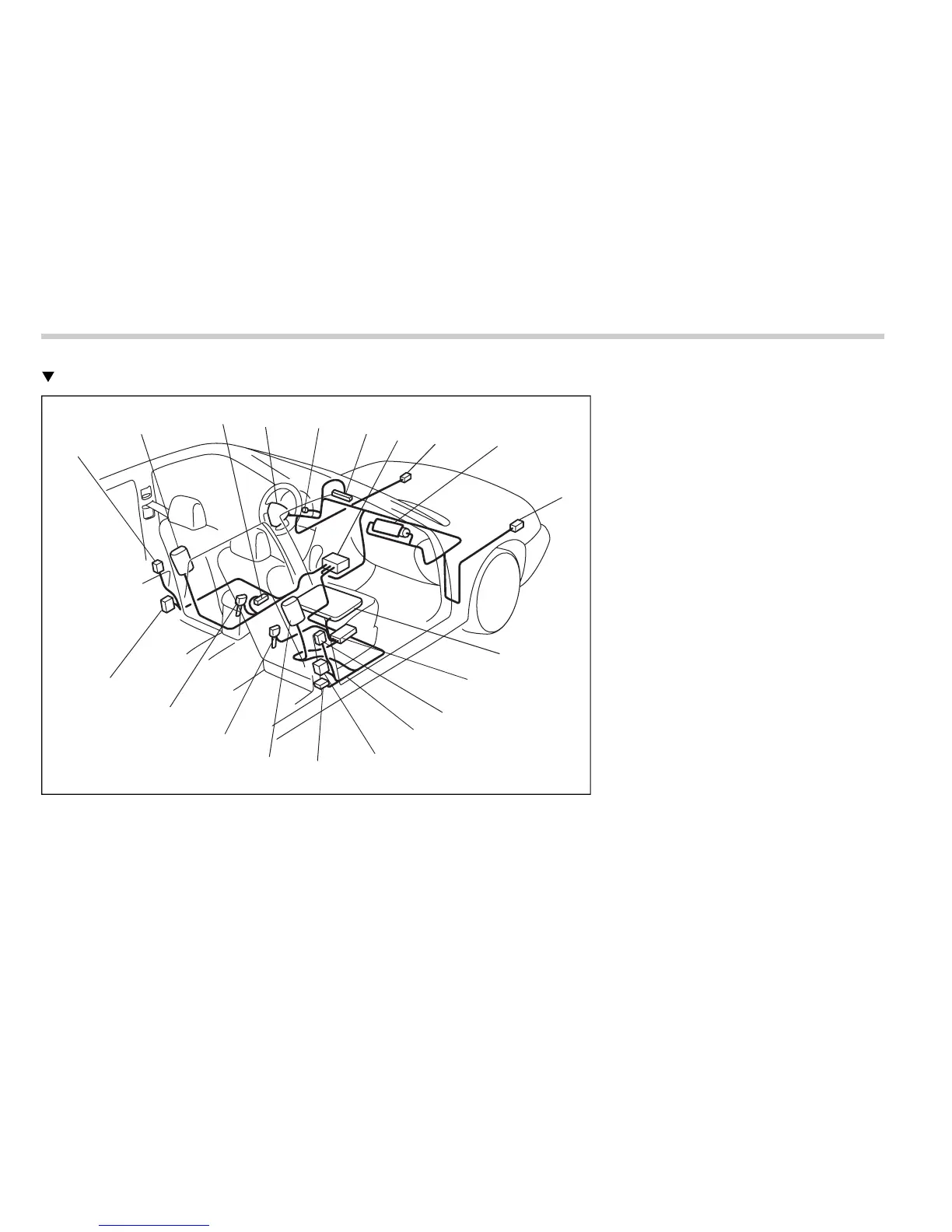

Components
1
2
3
4
5
6
14
15
20
19
8
11
17
18
9
7
10
12
16
13
100701
1) Airbag control module (including impact
sensors)
2) Frontal airbag module (driver"s side)
3) Frontal airbag module (front passen-
ger"s side)
4) Front sub sensor (left-hand side)
5) Front sub sensor (right-hand side)
6) Side airbag module (driver"s side)
7) Side airbag module (front passenger"s
side)
8) Side airbag sensor (center pillar left-
hand side)
9) Side airbag sensor (center pillar right-
hand side)
10)Airbag wiring (yellow)
11)Seatbelt pretensioner (driver"s side)
12)Seatbelt pretensioner (front passenger"s
side)
13)Seatbelt buckle switch (front passen-
ger"s side)
14)Seatbelt buckle switch (driver"s side)
15)Driver"s seat position sensor
16)Front passenger"s seatbelt tension sen-
sor
17)Front passenger"s occupant detection
system weight sensor
18)Front passenger"s occupant detection
control module
19)Front passenger"s frontal airbag ON and
OFF indicator
20)SRS airbag system warning light
To Next Page
