Subaru EH72-2D Service Information

-.11.-

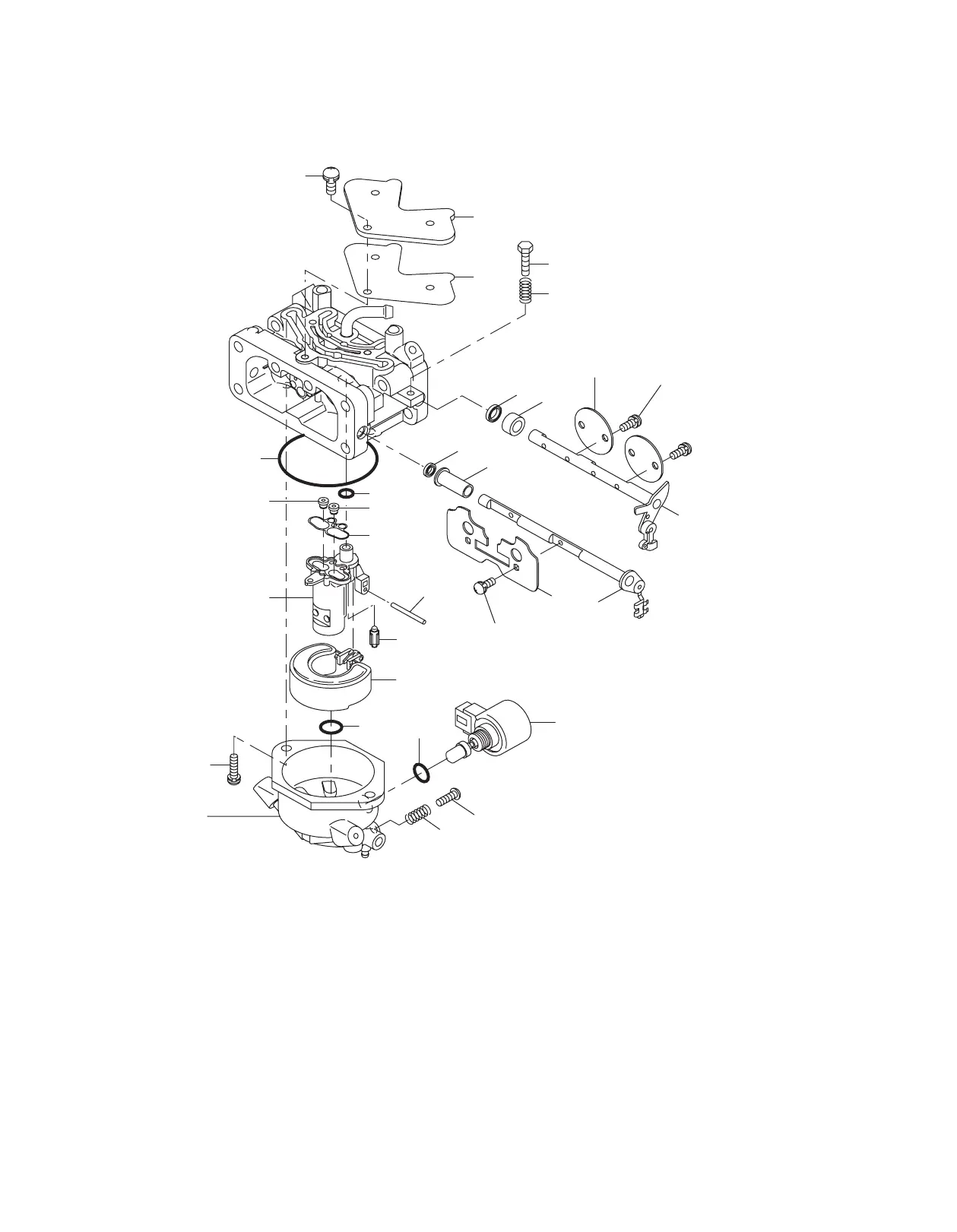

4-2 COMPORNENT PARTS
..1VALVE,THROTTLE
..2SCREW.SET(VALVE)
..3VALVE,.CHOKE
..4SHAFT.ASSY,CHOKE
..5SHAFT.COMPL,THROTTLE
..6VALVE,.FLOAT
..7PIN,.FLOAT
..8CHAMBER.ASSY,.FLOAT
..9GASKET,.FLOAT.CHAMBER
10FLOAT
11SCREW,.DRAIN
12SPRING,.DRAIN
13SCREW,.THROTTLE.ADJUST
14SPRING(ADJUST.SCREW)
15SCREW
16COLLAR,.CHOKE
17SEAL,CHOKE
18SEAL,THROTTLE
19COLLAR,.THROTTLE
20VALVE.COMPL,SOLENOID
21
GASKET(MATERIAL.:.ALUMINUM)
22O-RING
23GASKET,.SPACER
24SPACER,.CARB
25O-RING
26COVER,.SLOW.PASSAGE
27GASKET,.SLOW.PASSAGE
28SCREW
29JET.COML,MAIN(L)(#132)
30JET.COML,MAIN(R)(#133)
10
21
12
11
8
25
30
29
23
24
15
4
5
14
13
16
17
19
18
1
2
3
9
7
6
22
26
27
28
20
(With locktight)
2
(With locktight)
(TIGHTENING TORQUE 1.5~2.5N•m)
