Subaru EH72-2D Service Information

-.4.-
3-3 DISASSEMBLY PROCEDURES (DIFFERENCE)
Step Parts to remove Remarks and procedures Parts Fasteners
8
Chock.control.
lever.and.link

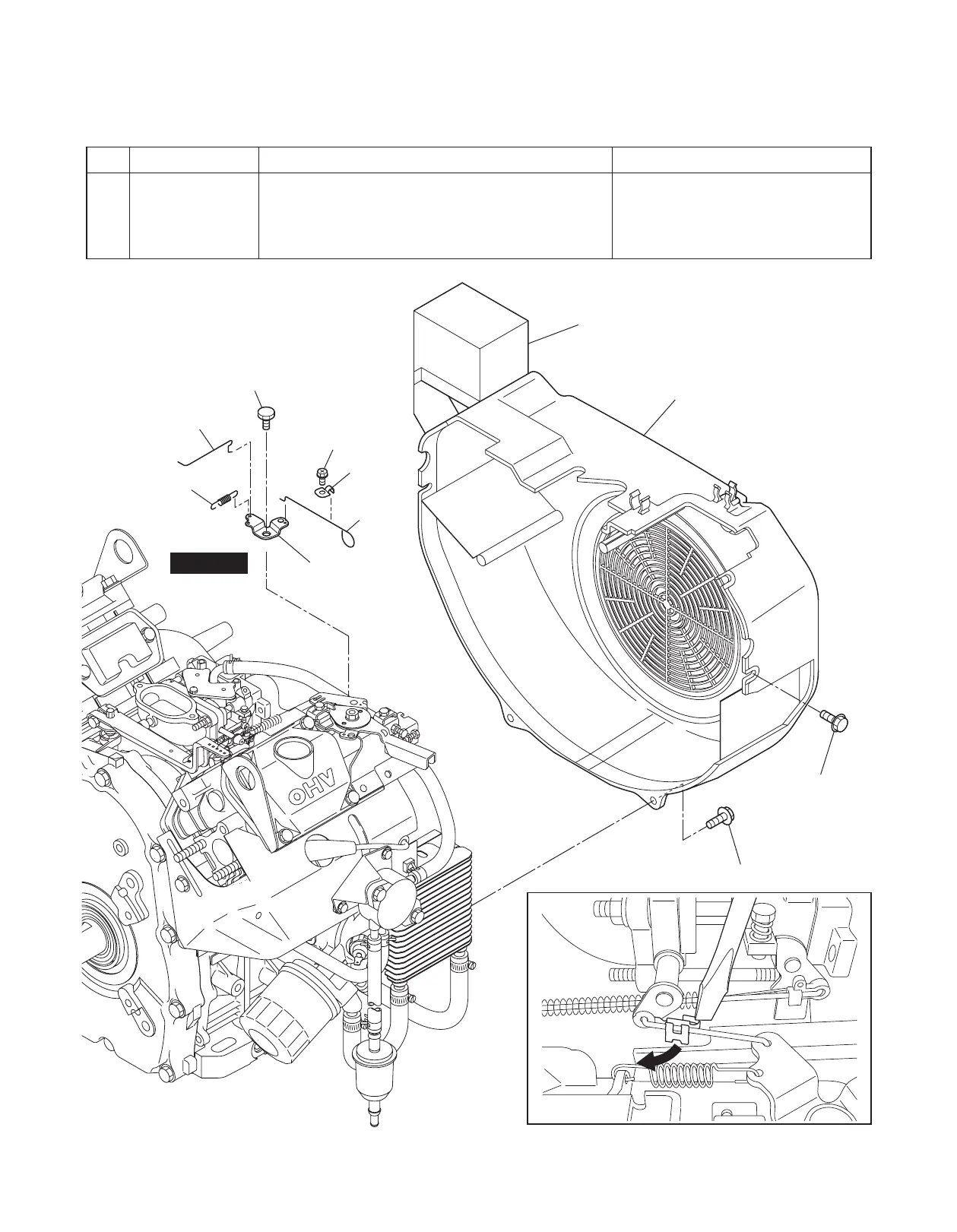

(1) Disconnect the choke rod holder and remove
the choke control rod. (See Fig. 3-1)
(2) Remove the choke knob.
CONTROL BOX
CHOKE
CONTROL ROD
RETURN
SPRING
LINK PIVOT
CHOKE
CONTROL
LINK
CHOKE
KNOB
CLAMP
M5 TAPPING
SCREW
BLOWER HOUSING
M6 FLANGE BOLT
M6 FLANGE
BOLT
STEP 8
Fig.3-1
