Subaru EX35 - 9. WIRING DIAGRAM; 9-1 MODEL WITHOUT ELECTRIC STARTER; 9-2 MODEL WITH ELECTRIC STARTER

- 48 -

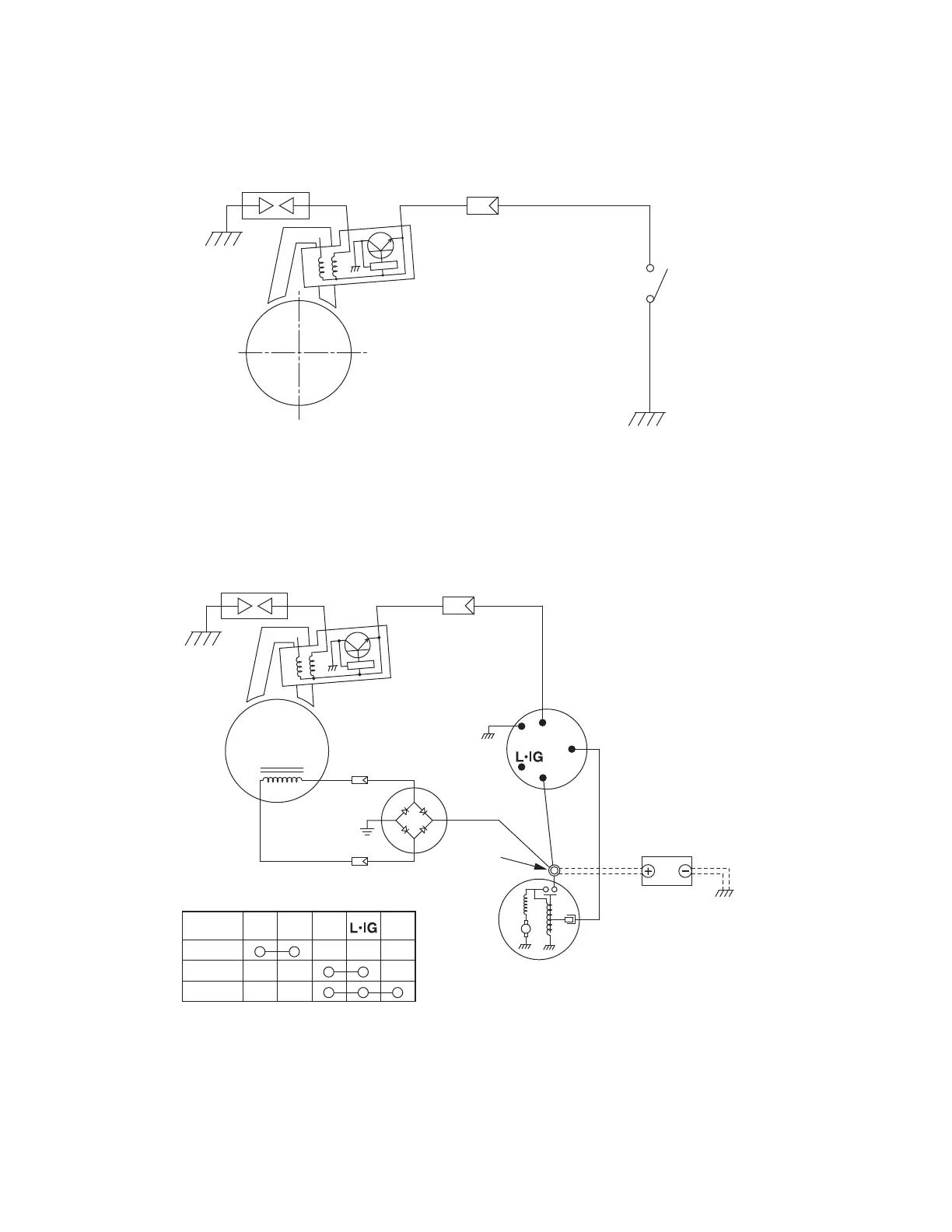

9. WIRING DIAGRAM
9-1 MODEL WITHOUT ELECTRIC STARTER
9-2 MODEL WITH ELECTRIC STARTER
Fig.9-1
Fig.9-2
Spark plug
Black
Flywheel
Ignition coil
(with built-in transistor)
Stop switch
Spark plug
Black
Red
Charge coil
Magneto
Key switch
Battery
(12V-24AH or larger)
Diode
rectifier
Ignition coil
Electric starter
LA108
LA408
Key switch
066-00003-30
-M +M B S
OFF
ON
START
+M
- M
ST
B
